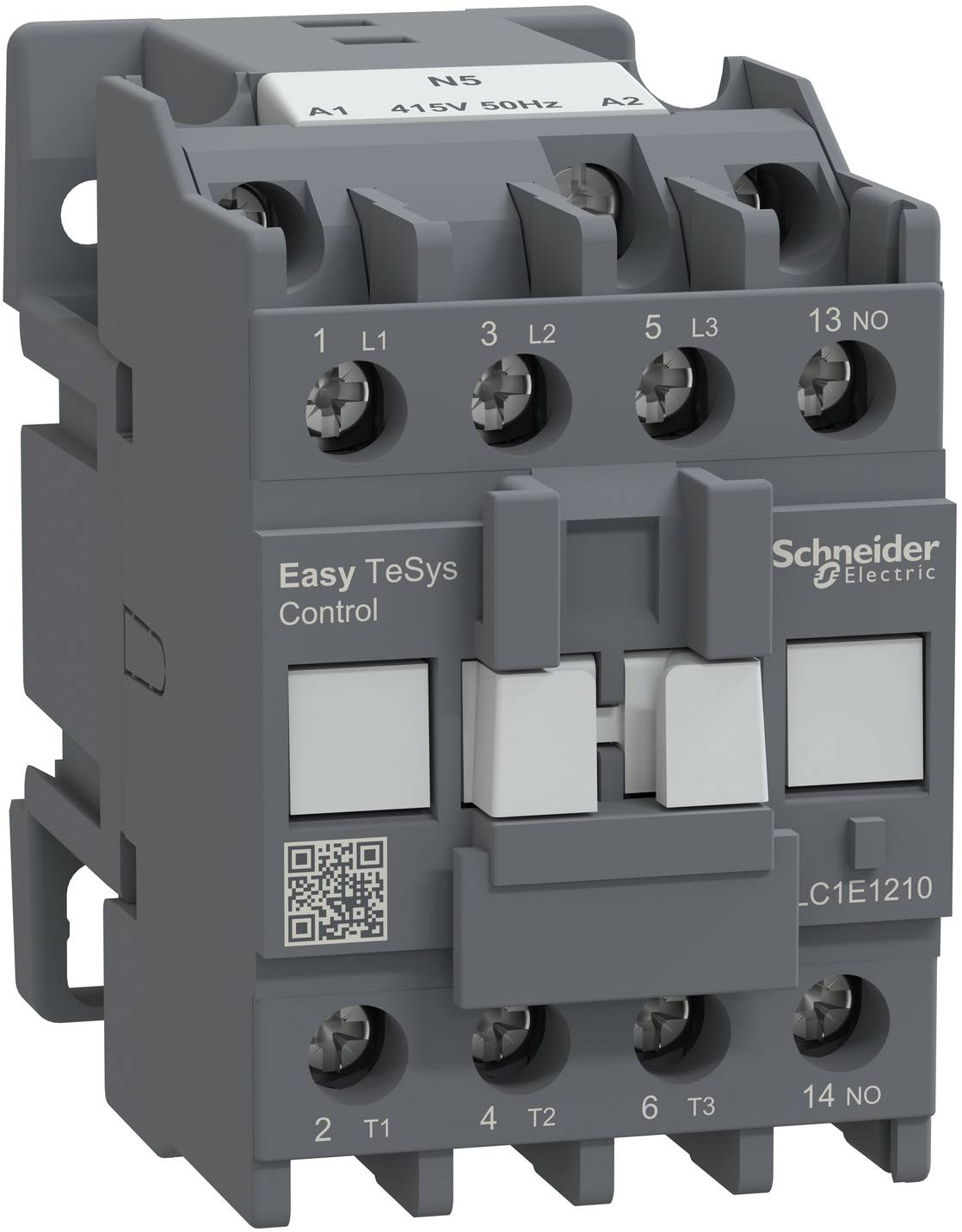

Schneider Electric LC1E1210N5 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1E1210N5
Width
45 mm
Height
74 mm
Depth
80 mm
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as NC contacts: 0
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 5.5 kW
- Rated operating current Ie at AC-1, 400 V:25 A.
- Rated operating current Ie at AC-3, 400 V:12 A.
- Rated control supply voltage AC 50 Hz: 415-415 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
LC1E1210N5
- Width
45 mm
- Height
74 mm
- Depth
80 mm
- Dim
(W x H x D) 45 x 74 x 80 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755007 Schneider Electric LC1E1210N5 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755007 Schneider Electric LC1E1210N5 Electrical contactor 1 pc(s)
Description
Easy TeSys Control contactor 3 pin for motor applications up to 120A 59kW 440V. :IT offers a 415V 50Hz AC coil, 3NO built-in auxiliary contacts, power and control connections via screw terminals. 120mm width for standard operating rates up to 1200 cycles per hour. It provides standard reliability and long life with an electrical life of 0.8 MIO. Cycles AC-3 and a mechanical life of 4 MIO. Cycles. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
