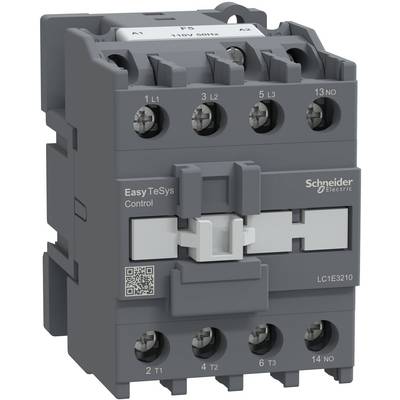

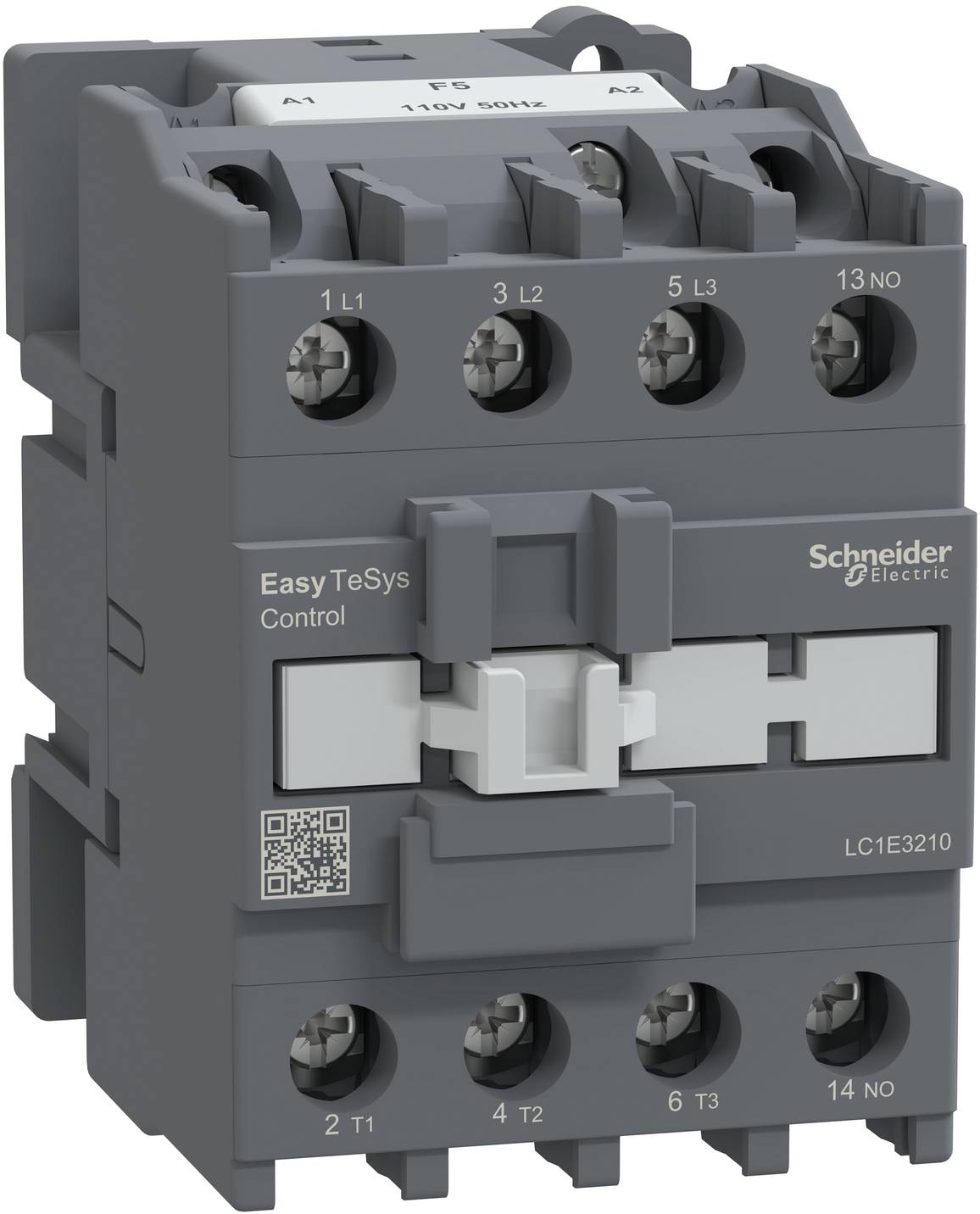

Schneider Electric LC1E3210F5 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1E3210F5
Width
56 mm
Height
84 mm
Depth
86 mm
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as NC contacts: 0
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 15 kW
- Rated operating current Ie at AC-1, 400 V:50 A.
- Rated operating current Ie at AC-3, 400 V:32 A.
- Rated control supply voltage AC 50 Hz: 110-110 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
LC1E3210F5
- Width
56 mm
- Height
84 mm
- Depth
86 mm
- Dim
(W x H x D) 56 x 84 x 86 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755093 Schneider Electric LC1E3210F5 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755093 Schneider Electric LC1E3210F5 Electrical contactor 1 pc(s)
Description
Easy TeSys Control contactor 3-pin for motor applications up to 32A 15kW 440V. It offers a 110V 50Hz AC coil, 1NO built-in auxiliary contacts, power and control connections with screw terminals. 56mm width for standard operating rates up to 1800 cycles per hour. It offers standard reliability and long life with 1 MIO. Cycles of electrical life AC-3 and 8 MIO. Cycles of mechanical lifetime. It can be used at operating temperatures from -5°C to 55°C and mounted on DIN-rail, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
