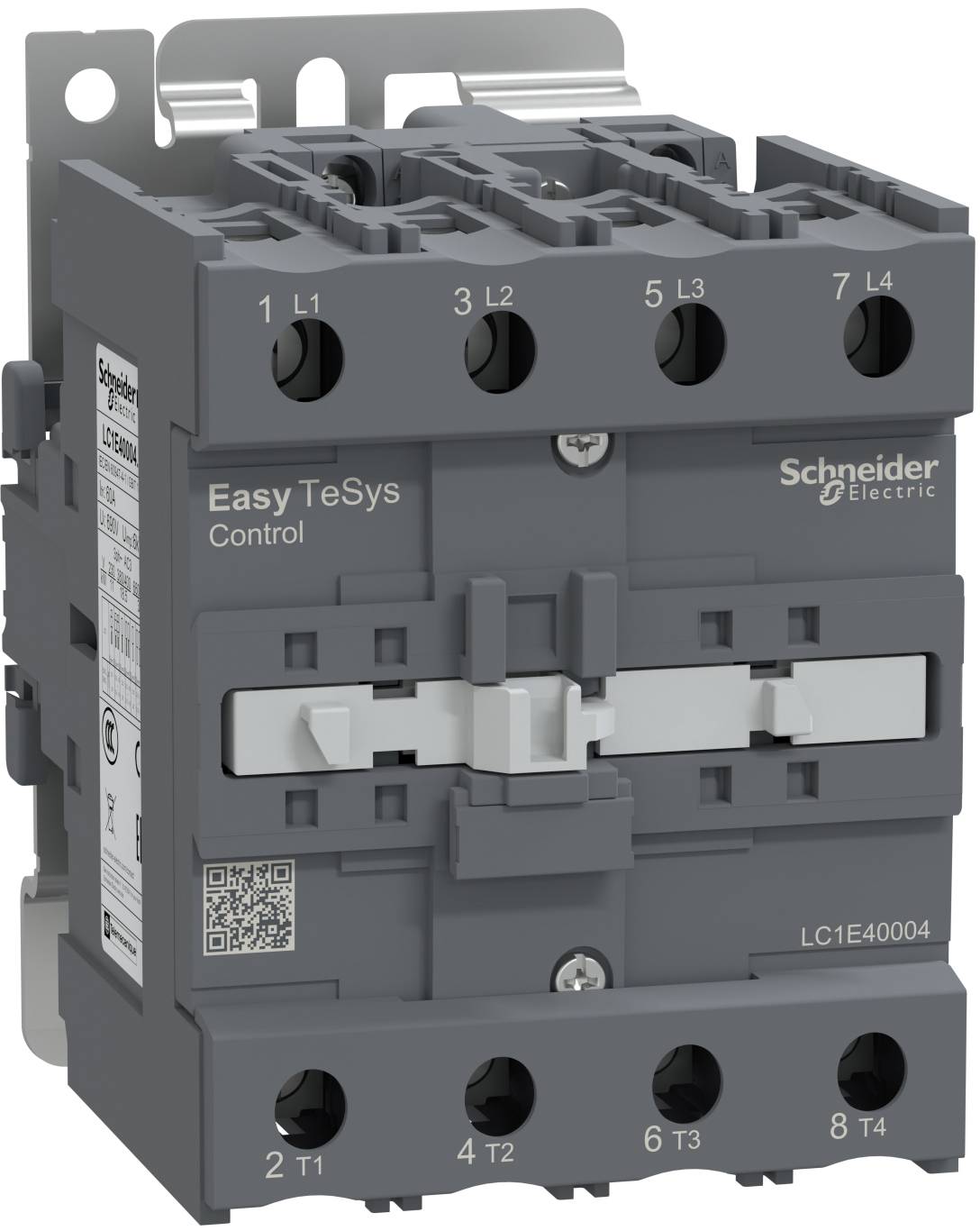

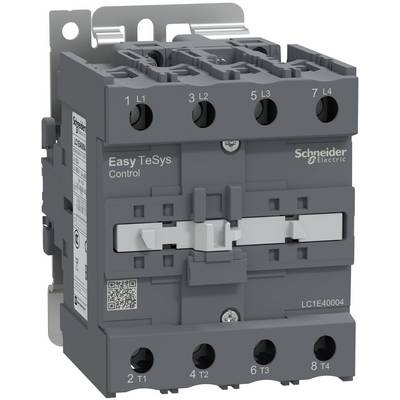

Schneider Electric LC1E40004M7 Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1E40004M7
Width
85 mm
Height
127 mm
Depth
110 mm
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as NC contacts: 0
- Number of NO contacts as main contacts: 4
- Number of NC contacts as main contacts: 0
- Rated operating current Ie at AC-1, 400 V:60 A.
- Rated control supply voltage AC 50 Hz: 220-220 V
- Rated control supply voltage AC 60 Hz: 220-220 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Product type
Electrical contactor
- Type
LC1E40004M7
- Width
85 mm
- Height
127 mm
- Depth
110 mm
- Dim
(W x H x D) 85 x 127 x 110 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3755029 Schneider Electric LC1E40004M7 Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755029 Schneider Electric LC1E40004M7 Electrical contactor 1 pc(s)
Description
Easy TeSys Control contactor 4-pin for applications in the category AC-1 up to 60A. It offers a 220V 50/60Hz AC coil, 4NO integrated auxiliary contacts, power and control connections through screw terminals. 84.5mm width for standard operating rates up to 1200 cycles per hour. It provides standard reliability and long life with an electrical life of 0.35 MIO cycles and a mechanical service life of 5 MIO cycles. It can be used at operating temperatures from -5°C to 55°C and can be mounted on DIN rails, no derating up to a height of 3000m. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
