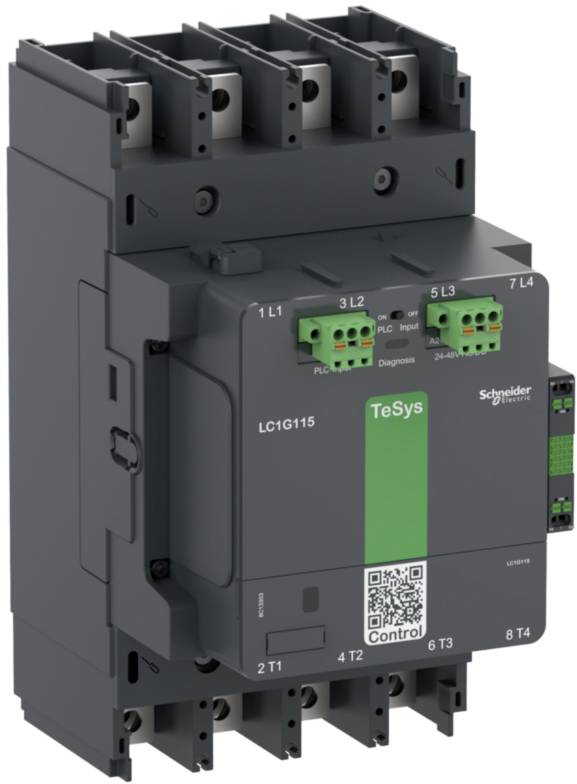

Schneider Electric LC1G1154LSEA Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
4-pin
Type
LC1G1154LSEA
Switching voltage (max.)
400 V AC
Permanent current (max.)
250 A
Datasheet (PDF)
Number
Total (€ 684.87 / piece)
€ 684.87
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1G1154LSEA
- No. of pins
4-pin
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
250 A
- Max. temperature
60 °C
- Content
1 pc(s)
FALSE
55.0 kW
4
0
1
1
250.0 A
Bolt connection
AC/DC
115 A
55.0 kW
75
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2935992 Schneider Electric LC1G1154LSEA Electrical contactor 1 pc(s)
Datasheet 2935992 Schneider Electric LC1G1154LSEA Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2935992 Schneider Electric LC1G1154LSEA Electrical contactor 1 pc(s)
Information
Information 2935992 Schneider Electric LC1G1154LSEA Electrical contactor 1 pc(s)
Description
TeSys control - Giga contactor, 4 pole (4S) for applications in the category AC-1 to 250A at 400V. The contactor has an AC/DC wide-range coil of 200-500V with low energy consumption plus two control inputs 24 V DC. Included in the delivery is a mounted auxiliary switch block with a normally open and a normally closed contact. Designed for demanding applications with maximum operating rates of up to 600 cycles per hour and environments up to 60°C. High reliability and long life with a mechanical lifetime of 5 Mcycles. Green Premium-conform (RoHS/REACH).
