Schneider Electric LC1G150EHEN Electrical contactor 3 makers 90 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
90 kW
Type
LC1G150EHEN
Contact type
3 makers
Datasheet (PDF)
Number
Total (€ 558.82 / piece)
€ 558.82
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1G150EHEN
- No. of pins
3-pin
- Contact type
3 makers
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
150 A
90 kW
- Max. temperature
60 °C
- Content
1 pc(s)
FALSE
75.0 kW
3
0
1
1
150.0 A
275.0 A
Bolt connection
AC/DC
150 A
75.0 kW
100
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2936022 Schneider Electric LC1G150EHEN Electrical contactor 3 makers 90 kW 1 pc(s)
Datasheet 2936022 Schneider Electric LC1G150EHEN Electrical contactor 3 makers 90 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2936022 Schneider Electric LC1G150EHEN Electrical contactor 3 makers 90 kW 1 pc(s)
Information
Information 2936022 Schneider Electric LC1G150EHEN Electrical contactor 3 makers 90 kW 1 pc(s)
Description

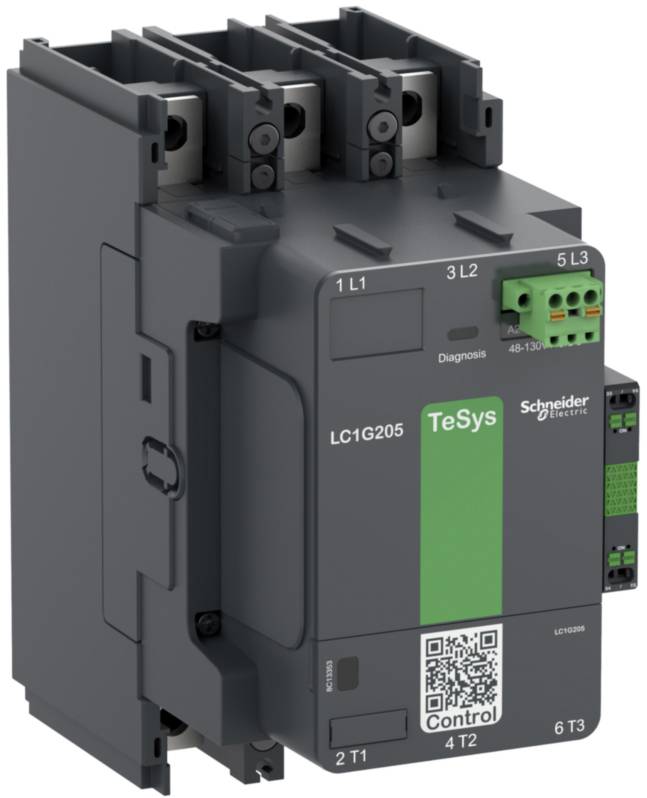

TeSys control - Giga contactor, 3 pole (3S) for safe switching of motors with AC-3 up to 150A / 90kW at 400V. The contactor has an AC/DC wide-range coil of 48 - 130V with low energy consumption. Included in the delivery is a mounted auxiliary switch block with a normally open and a normally closed contact. Designed for demanding applications with maximum operating rates of up to 600 cycles per hour and environments up to 60°C. High reliability and long life with a mechanical lifetime of 5 Mcycles. Green Premium-conform (RoHS/REACH).
