Schneider Electric LC1G400LSEA Electrical contactor 3 makers 250 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
250 kW
Type
LC1G400LSEA
Contact type
3 makers
Datasheet (PDF)
Number
Total (€ 1,570.59 / piece)
€ 1,570.59
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1G400LSEA
- No. of pins
3-pin
- Contact type
3 makers
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
400 A
250 kW
- Max. temperature
60 °C
- Content
1 pc(s)
FALSE
200.0 kW
3
0
1
1
400.0 A
550.0 A
Bolt connection
AC/DC
400 A
200.0 kW
300
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2935990 Schneider Electric LC1G400LSEA Electrical contactor 3 makers 250 kW 1 pc(s)
Datasheet 2935990 Schneider Electric LC1G400LSEA Electrical contactor 3 makers 250 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2935990 Schneider Electric LC1G400LSEA Electrical contactor 3 makers 250 kW 1 pc(s)
Information
Information 2935990 Schneider Electric LC1G400LSEA Electrical contactor 3 makers 250 kW 1 pc(s)
Description

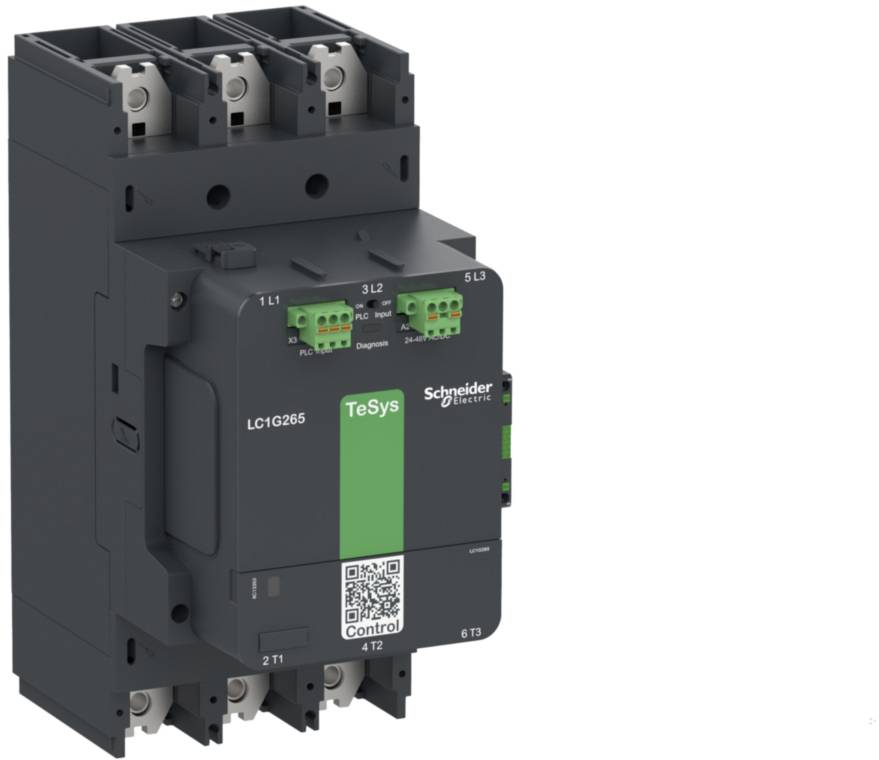

TeSys control - Giga contactor, 3 pole (3S) for safe switching of motors with AC-3 up to 400A / 250 kW at 400V. The contactor has an AC/DC wide-range coil of 200-500V with low energy consumption plus two control inputs 24 V DC. Included in the delivery is a mounted auxiliary switch block with a normally open and a normally closed contact. Designed for demanding applications with maximum operating rates of up to 600 cycles per hour and environments up to 60°C. High reliability and long life with a mechanical lifetime of 5 Mcycles. Green Premium-conform (RoHS/REACH).
