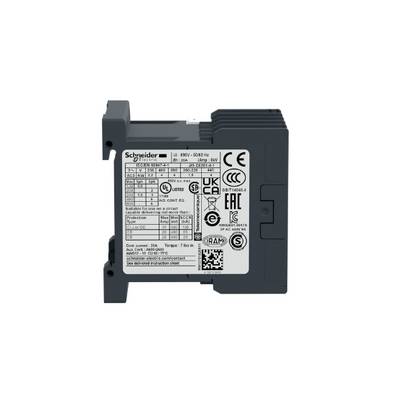

Schneider Electric LC1K0910B7 Electrical contactor 1 maker 440 W 24 V AC 9 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Nominal voltage
24 V AC
Current load
9 A
Power
440 W
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
14-day return policy included
Highlights & Details
Schneider Electric LC1K0910B7 Auxiliary Contact
- TeSys K contactor, 3 pin (3NO)
- For motor control applications up to 9 A/690 V AC-3 (4 kW@400 V)
- For inductive load control applications up to 20 A/690 V AC-1
- 24 V 50/60 Hz AC coil
- Built-in 1-NO auxiliary contact
- Connection via screw terminals
- For operating rates up to 600 cycles/hour and environments up to 50 °C.
Technical specifications
- Packaging type
Piece
- Product type
Electrical contactor
- Type
LC1K0910B7
- No. of pins
3-pin
- Contact type
1 maker
- Auxiliary contact type
1 maker
- Nominal voltage
24 V AC
- Control voltage (max.)
24 V AC
- Control voltage range
24 V AC (max)
- Switching voltage (max.)
690 V AC
- Max. switching capacity
4000 W
- Permanent current (max.)
9 A
- Current load
9 A
440 W
- Features
+ auxiliary contact
- Connection
Power Rail
- Max. temperature
50 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1980051 Schneider Electric LC1K0910B7 Electrical contactor 1 maker 440 W 24 V AC 9 A + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1980051 Schneider Electric LC1K0910B7 Electrical contactor 1 maker 440 W 24 V AC 9 A + auxiliary contact Piece 1 pc(s)
Description
TeSys K contactor, 3-pole (3NO) for motor control applications up to 9 A/690 V AC-3 (4 kW@400 V), and for inductive load control applications up to 20 A/690 V AC-1. It has a 24 V 50/60 Hz AC coil, an integrated 1 NO auxiliary contact and connection via screw terminals. For operating rates up to 600 cycles/hour and environments up to 50 °C, it offers reliability and durability for standard applications.
