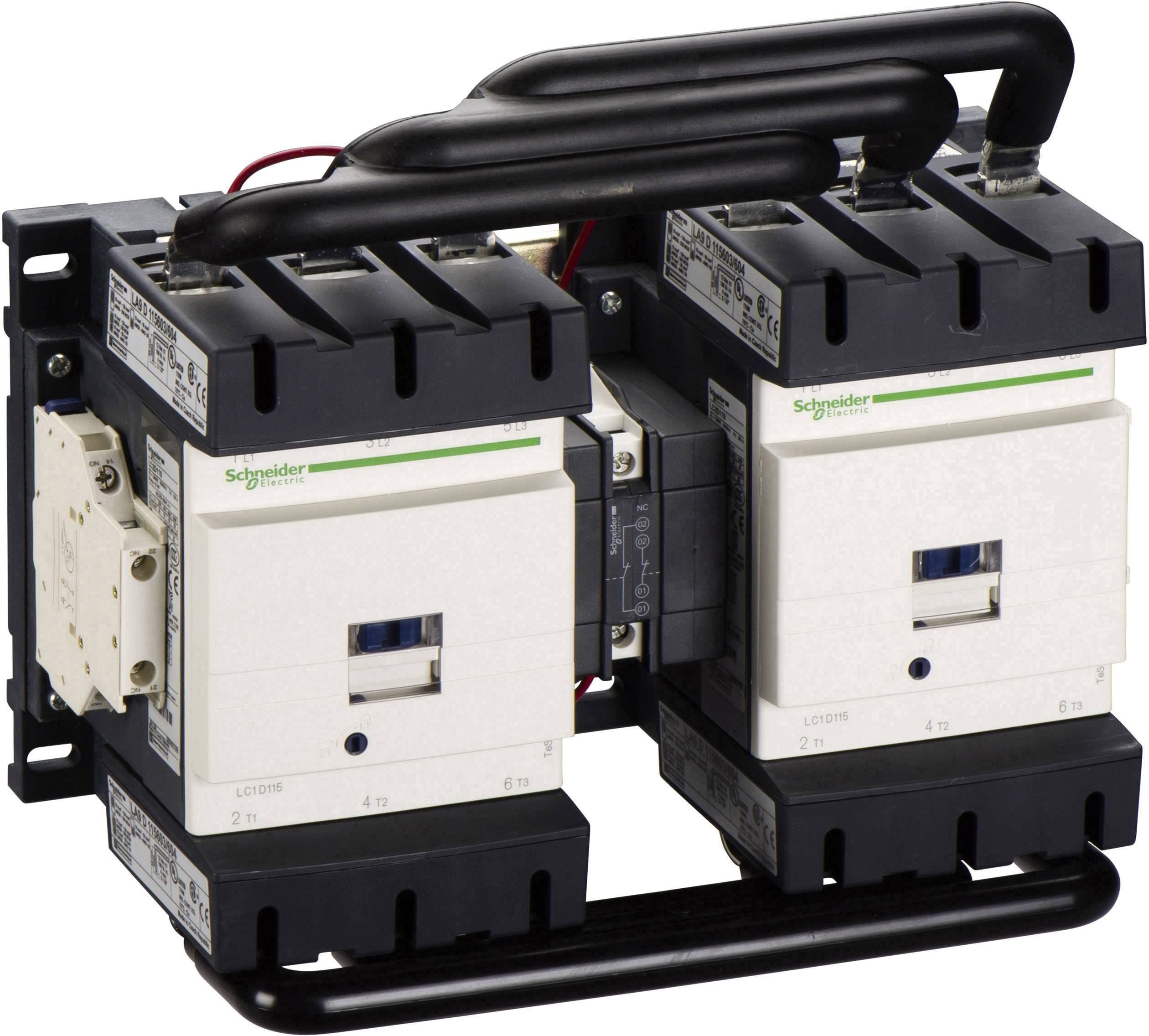

Schneider Electric LC2D115FE7 Reversing contactor 75 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
Power
75 kW
Type
LC2D115FE7
Control voltage (max.)
115 V AC
Control voltage range
115 V AC (max)
Technical specifications
- Product type
Reversing contactor
- Type
LC2D115FE7
- Control voltage (max.)
115 V AC
- Control voltage range
115 V AC (max)
- Switching voltage (max.)
440 V AC
- Permanent current (max.)
115 A
75 kW
- Width
45 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1977837 Schneider Electric LC2D115FE7 Reversing contactor 75 kW 1 pc(s)
Description
Standard contactors 0.06 -75 kW In Addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm at the same time. They meet international standards. The power sizes 40 to 65 A are equipped with Everlink terminals. These are patented and ensure a reliable and permanent connection.
