1 maker, 1 breaker Schneider Electric LRD340 1 pc(s)
EAN:
Part number:
Item no:
Functions
Overload
Contact type
1 maker
1 breaker
Switching voltage (max.)
690 V AC
Type
LRD340
Features
+ test button
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Technical specifications
- Type
LRD340
- Functions
Overload
- Features
+ test button
- Amperage adjustment range (min.)
30 A
- Amperage adjustment range (max.)
40 A
- Adjustment range (amperage)
30 - 40 A
- Contact type
1 maker
1 breaker
75 kW
- Switching voltage (max.)
690 V AC
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1980749 1 maker, 1 breaker Schneider Electric LRD340 1 pc(s)
Description

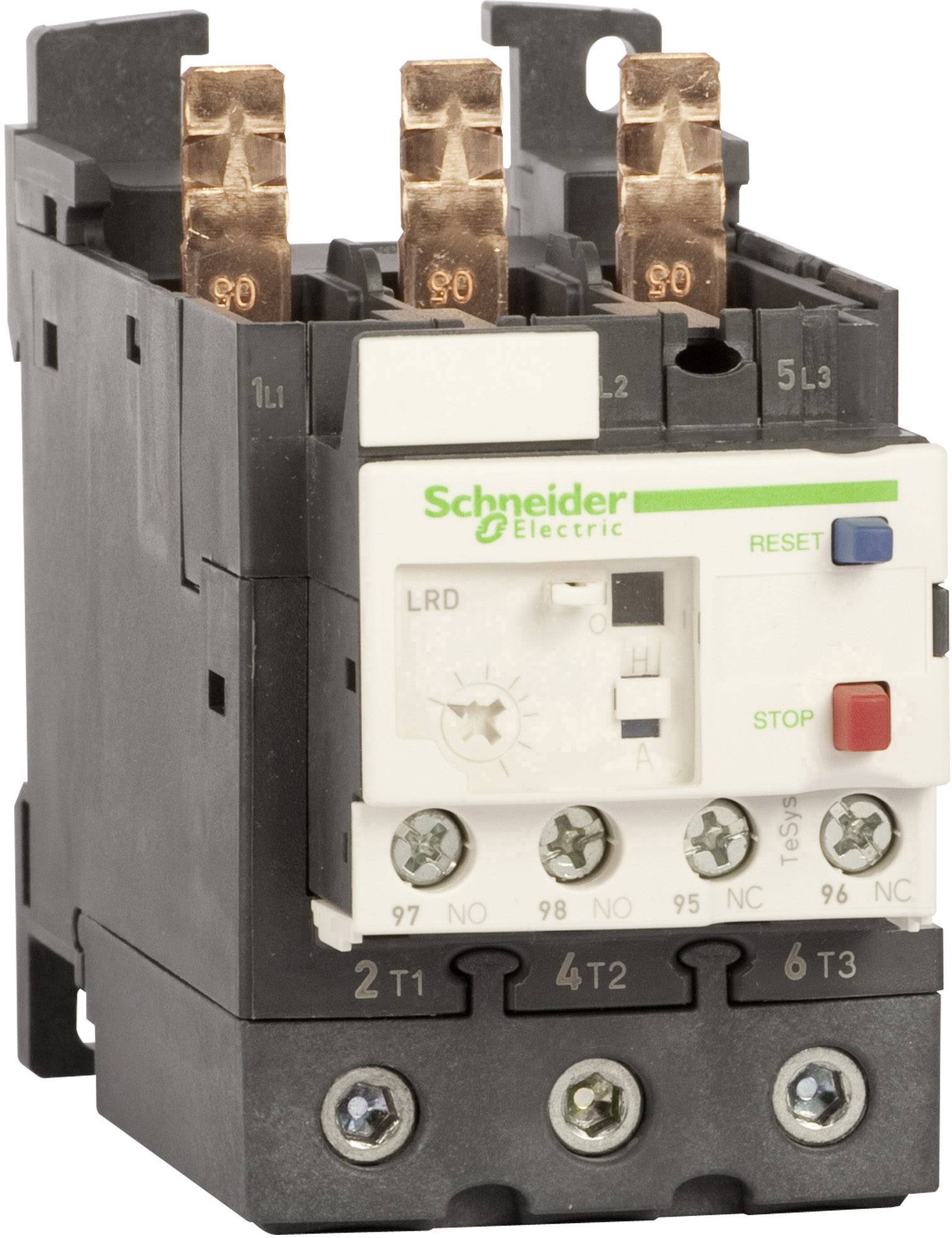

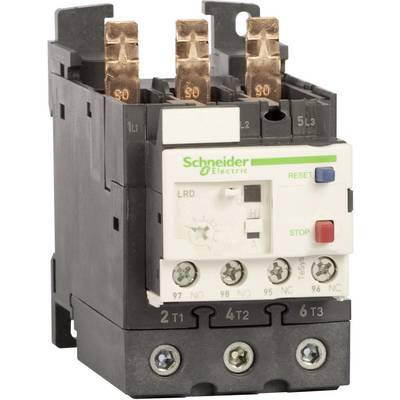

Motor protection relays 0.06 -75 kW TeSys LRD thermal overload relays are extremely reliable and cover the entire motor range up to 150 A. They have a manual -automatic reset and are available with different terminal variants. In combination with TeSys D they become an extremely compact starter.
