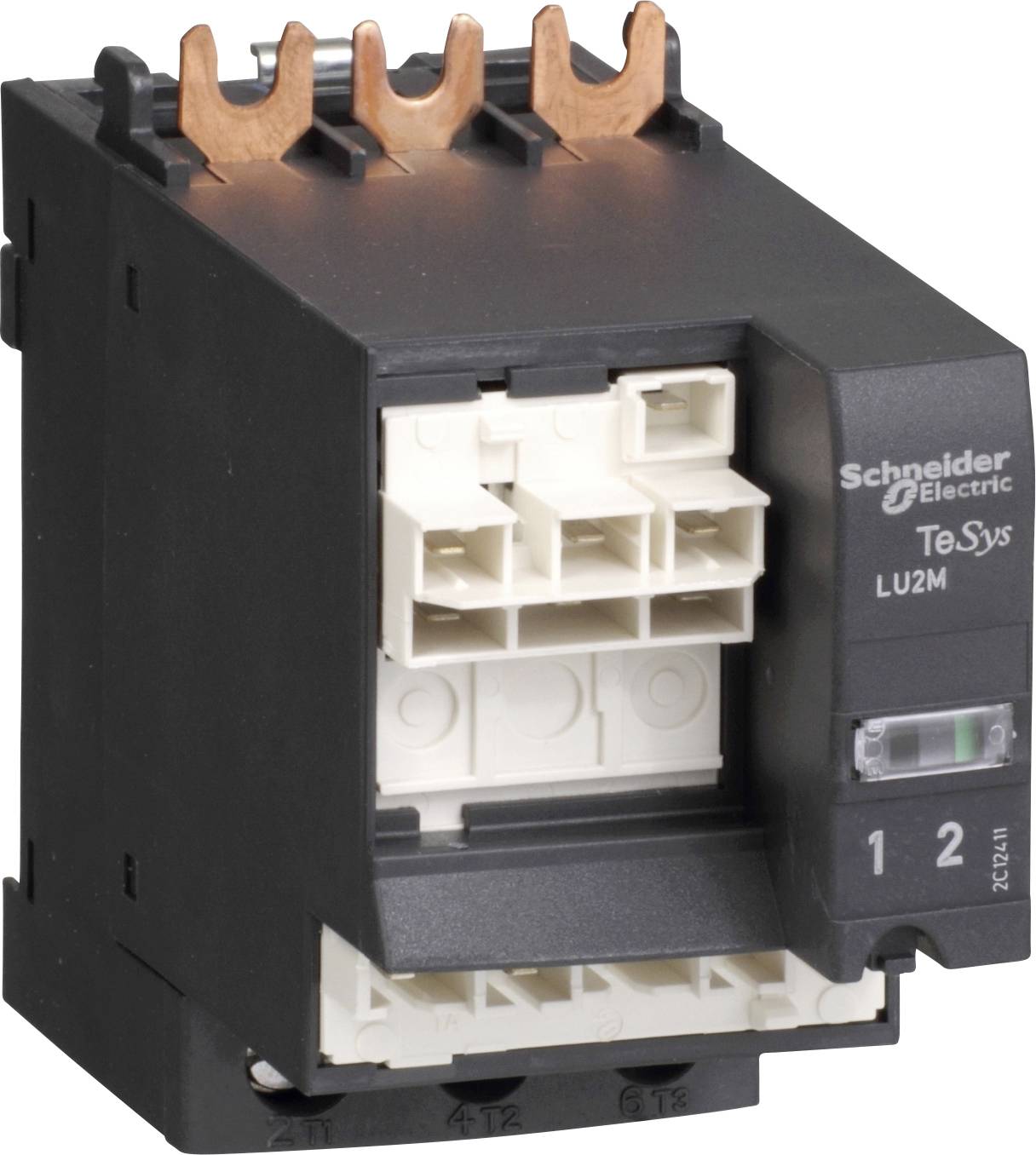

Schneider Electric LU2MB0BL Reversing switch 18.5 kW 690 V AC 38 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing switch
Nominal voltage
690 V AC
Current load
38 A
Power
18.5 kW
Connection
Screw terminal
Technical specifications
- Housing variants: Direct mounting
- Power consumption: 120 mA at 24 V DC I max. during closing; 120 mA at 24 V DC I eff sealed
- Network frequency 40 - 60 Hz
- Response time 150 ms with change of direction; 75 ms without change of direction
- Tightening torque: Control circuit: 0.8…1.2 Nm flat Screwdriver 5 mm; control circuit: 0.8…1.2 Nm cross-head No. 2 screwdrivers 5 mm; main circuit: 1.9…2.5 Nm flat Screwdriver 6 mm; main circuit: 1.9…2.5 Nm cross-head No. 2 screwdrivers 6 mm
- Compatibility code: LU2MB
- Installation altitude: 2000 m.
- Product type
Reversing switch
- Type
LU2MB0BL
- Nominal voltage
690 V AC
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
38 A
- Current load
38 A
18.5 kW
- Mounting type
Push-fit
- Connection
Screw terminal
- Response time
150 ms
IP20
IP40
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
45 mm
- Height
80 mm
- Depth
105 mm
- Dim
(W x H x D) 45 x 80 x 105 mm
- Content
1 pc(s)
- UKCA
not relevant
