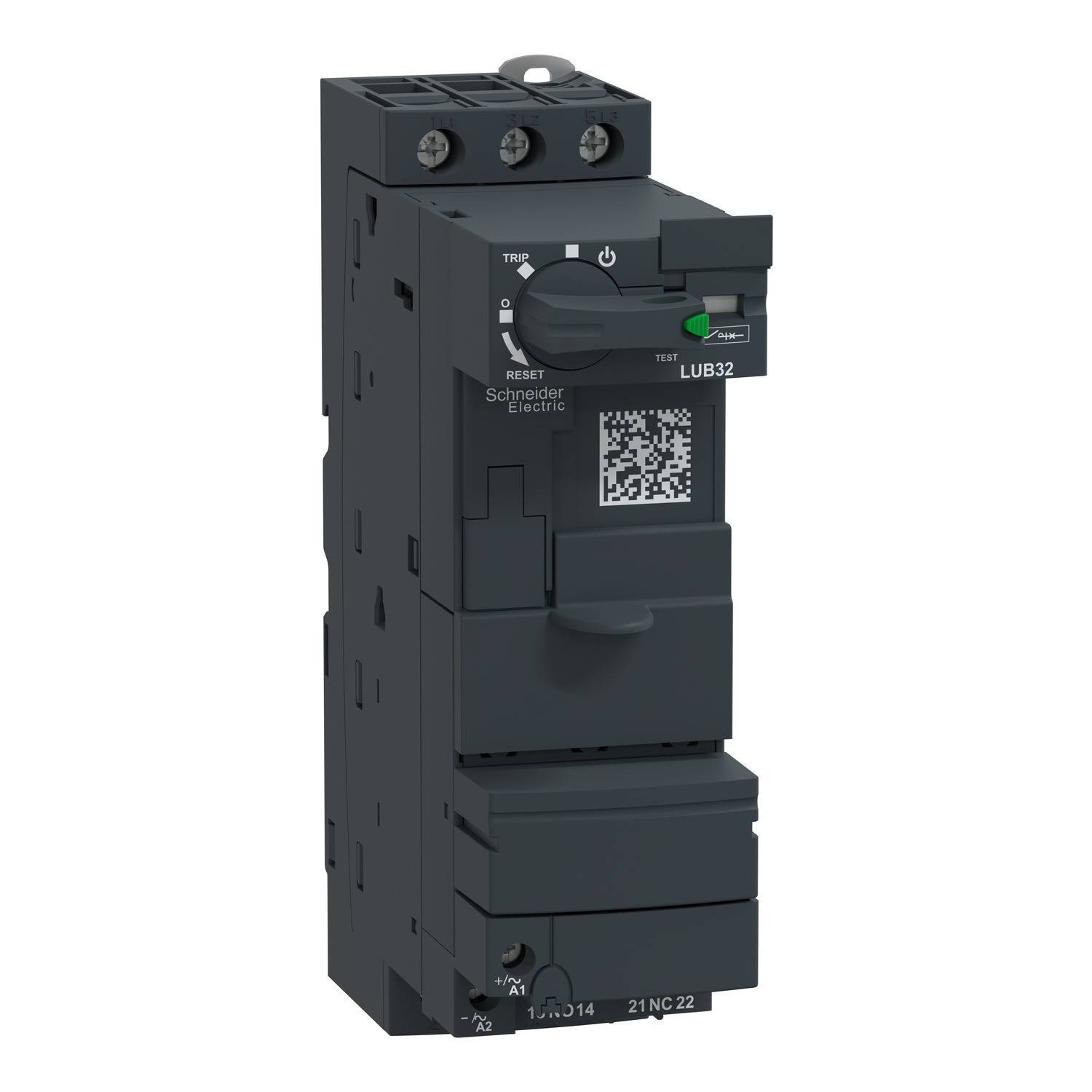

Schneider Electric LUB32 LUB32 Controller

Basic units TeSys U. Basic unit, TeSys U, 32A, without terminals. Rated power 0,1-15 kW, rotational direction 1, MTZ 13, control voltage -. Universal basic device with pre-wired switch and protection combination, standard up to 12 / 32 A and with 2 auxiliary contacts (1 NO + 1 NC). Installation width up to 15 kW only 45 mm (direct and reversing starter), complete coordination in accordance with IEC 947-6-2 (welding free). TeSys U is a complete motor outlet that includes the functions of the motor circuit breaker and contactor. With only two basic devices, one covers the power range of 0,1-15 kW. CLOU The control voltage and the current range must be determined by a plug-in control unit in the last second.

This text is machine translated.
