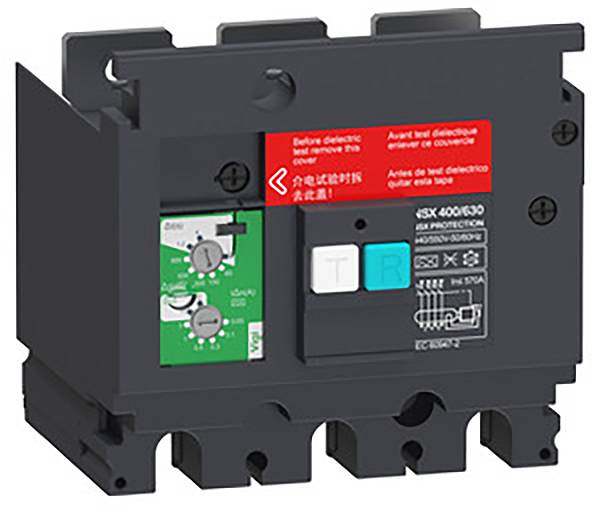

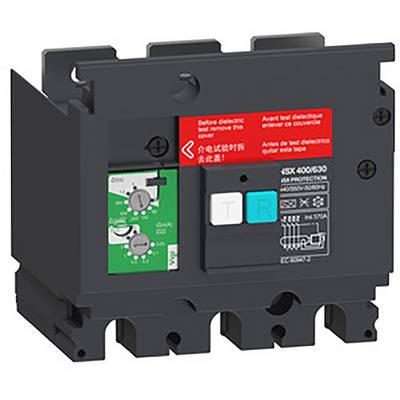

Schneider Electric LV432466 Fault current protection additional module VigiPACT for Compact NSX 400/630 3P, 440 VAC to 5
EAN:
Part number:
Item no:
Product type
Distribution board accessories
Content
1 pc(s)
Delay adjustable
TRUE
Max. rated operation voltage Ue
550 V
Max. power on-delay time
4000
Datasheet (PDF)
Number
Total (€ 1,147.06 / piece)
€ 1,147.06
plus VAT.
14-day return policy included
Technical specifications
- Product type
Distribution board accessories
- Content
1 pc(s)
TRUE
550 V
4000
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2929015 Schneider Electric LV432466 Fault current protection additional module VigiPACT for Compact NSX 400/630 3P, 440 VAC to 5
Datasheet 2929015 Schneider Electric LV432466 Fault current protection additional module VigiPACT for Compact NSX 400/630 3P, 440 VAC to 5
User & Safety Instructions
User & Safety Instructions 2929015 Schneider Electric LV432466 Fault current protection additional module VigiPACT for Compact NSX 400/630 3P, 440 VAC to 5
User & Safety Instructions 2929015 Schneider Electric LV432466 Fault current protection additional module VigiPACT for Compact NSX 400/630 3P, 440 VAC to 5
Information
Information 2929015 Schneider Electric LV432466 Fault current protection additional module VigiPACT for Compact NSX 400/630 3P, 440 VAC to 5
Information 2929015 Schneider Electric LV432466 Fault current protection additional module VigiPACT for Compact NSX 400/630 3P, 440 VAC to 5
Description
This is a Vigi add-on module for Compact NSX 400/630 that provides fault current protection. It is used for 3-pole circuit breakers. The operating voltage is between 440 and 550 V AC 50/60 Hz. The differential current sensitivity is adjustable from 30 mA to 30 A. It is plugged directly onto the device connection terminals and if there is a fault, it directly activates the trigger if there is a fault due to an error current. This Vigi add-on module is internally fed by the power supply of the distribution system, even if it is supplied only by 2 phases. It is compliant with IEC 60947-2, Appendix B.
