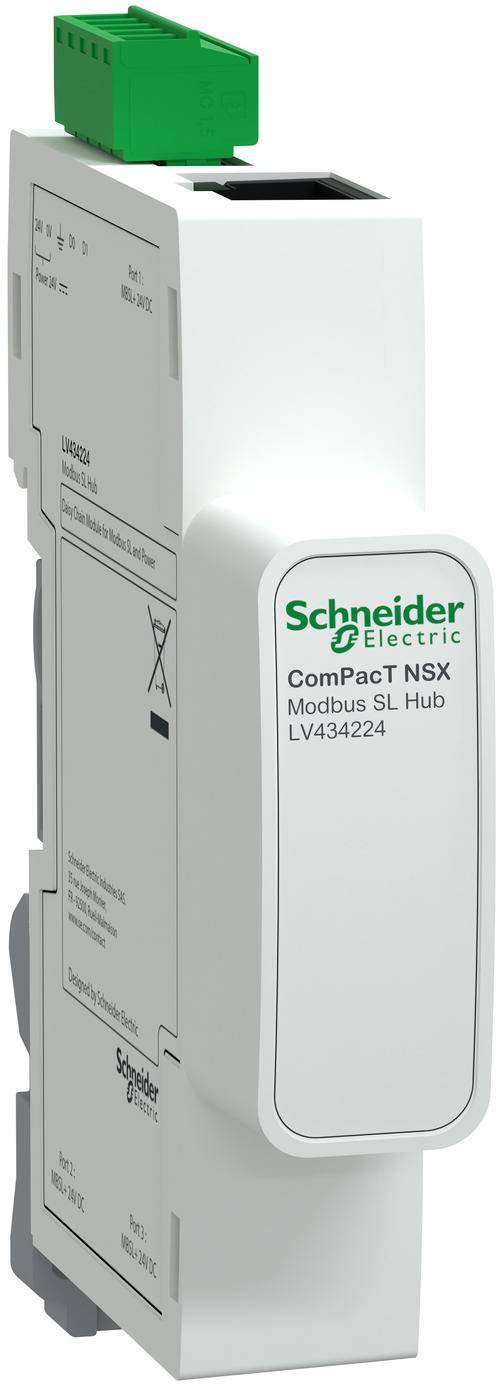

Schneider Electric LV434224 LV434224 Network switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Technical specifications
- Number of 10 Mbps RJ45 ports: 3
- Number of 10 Mbps SC ports: 0
- Number of 10 Mbps ST ports: 0
- Number of 10/100 Mbps RJ45 ports: 0
- Number of 100 Mbps MT-RJ ports: 0
- Number of 100 Mbps SC ports: 0
- Number of 100 Mbps VF-45 ports: 0
- Number of max. stackable units: 12
- Number of module slots: 1
- Number of other ports: 0
- Ethernet: no
- Fast Ethernet: No.
- Manageable: Yes
- Product type
Network switch
- Width
71 mm
- Height
102 mm
- Depth
18 mm
- Type
LV434224
IP30
- Mounting type
DIN rail
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755284 Schneider Electric LV434224 LV434224 Network switch
User & Safety Instructions
User & Safety Instructions 3755284 Schneider Electric LV434224 LV434224 Network switch
User & Safety Instructions 3755284 Schneider Electric LV434224 LV434224 Network switch
Description
The Modbus hub is an accessory for connecting the compact NSX circuit breakers via Modbus. It has 3 RJ45-interfaces, to which one can connect each one BSCM Modbus SL/ULP-module via BSCM Modbus cable. The Modbus hub is installed on a DIN rail. It has a terminal that allows it to be connected to IFM or IFE modules. It has an interface for connecting a stack plug, which can be used to connect IFM or IFE modules. The Modbus Hub also has a terminal strip to which 24 V DC can be connected as input, and can also be used for connecting other serial Modbus devices and gateways. The operating voltage of the Modbus SL/ULP module BSCM is 24 VDC.
