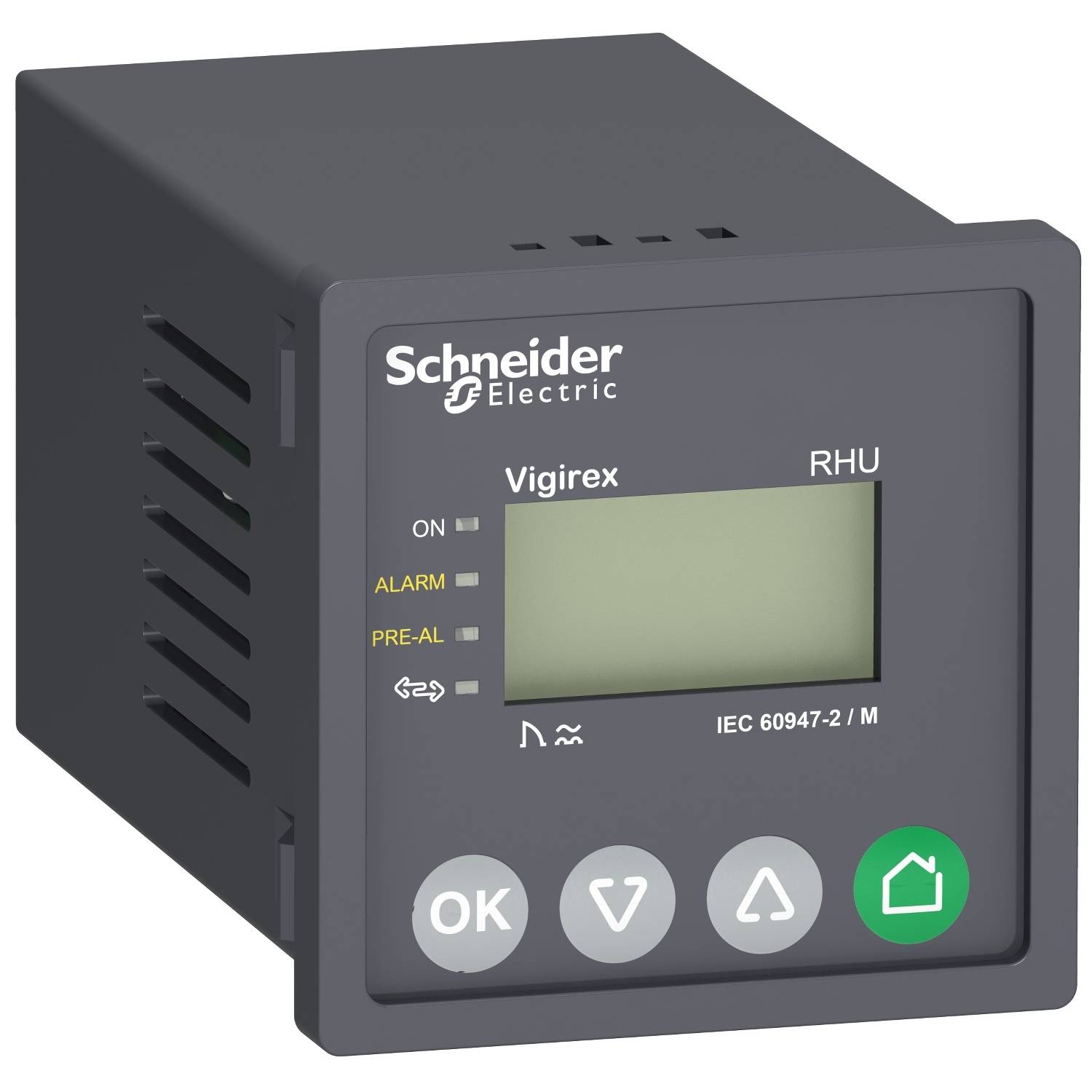

Schneider Electric LV481001 LV481001 Differential current monitor
EAN:
Part number:
Item no:
Product type
Differential current monitor
Type
LV481001
Probe inputs
Ableitstrom
Width
72
Function
For AC-current system
Datasheet (PDF)
Number
Total (€ 903.36 / piece)
€ 903.36
plus VAT.
14-day return policy included
Technical specifications
- Type
LV481001
- Product type
Differential current monitor
- Probe inputs
Ableitstrom
72
For AC-current system
72 mm
117 mm
TRUE
TRUE
TRUE
Screw connection
4.5 s
0 s
AC
0
1
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2913817 Schneider Electric LV481001 LV481001 Differential current monitor
Datasheet 2913817 Schneider Electric LV481001 LV481001 Differential current monitor
User & Safety Instructions
User & Safety Instructions 2913817 Schneider Electric LV481001 LV481001 Differential current monitor
Information
Information 2913817 Schneider Electric LV481001 LV481001 Differential current monitor
Description
VigPact rus is a residual current protection relay for front panel mounting. It protects against direct or indirect contact with persons, fire hazards and motors. It measures the leakage current in an electrical system via its associated toroidal transformer. It triggers the corresponding circuit breaker if the set fault current is exceeded. It can trigger an alarm and a pre-alarm. The operating voltage is 220/240VAC 50/60Hz. It is a type A ground fault protection class. The current sensitivity is between 30 mA and 30 A. The time delay can be set to 0 to 4.5 s. It is installed on a control panel on the front and has the protection class IP40. It must be connected to a compatible Schneider Electric type A toroidal or rectangular sensor. It complies with the standards IEC 60755, IEC 60947-2 Annex M and IEC 60947-5-1.
