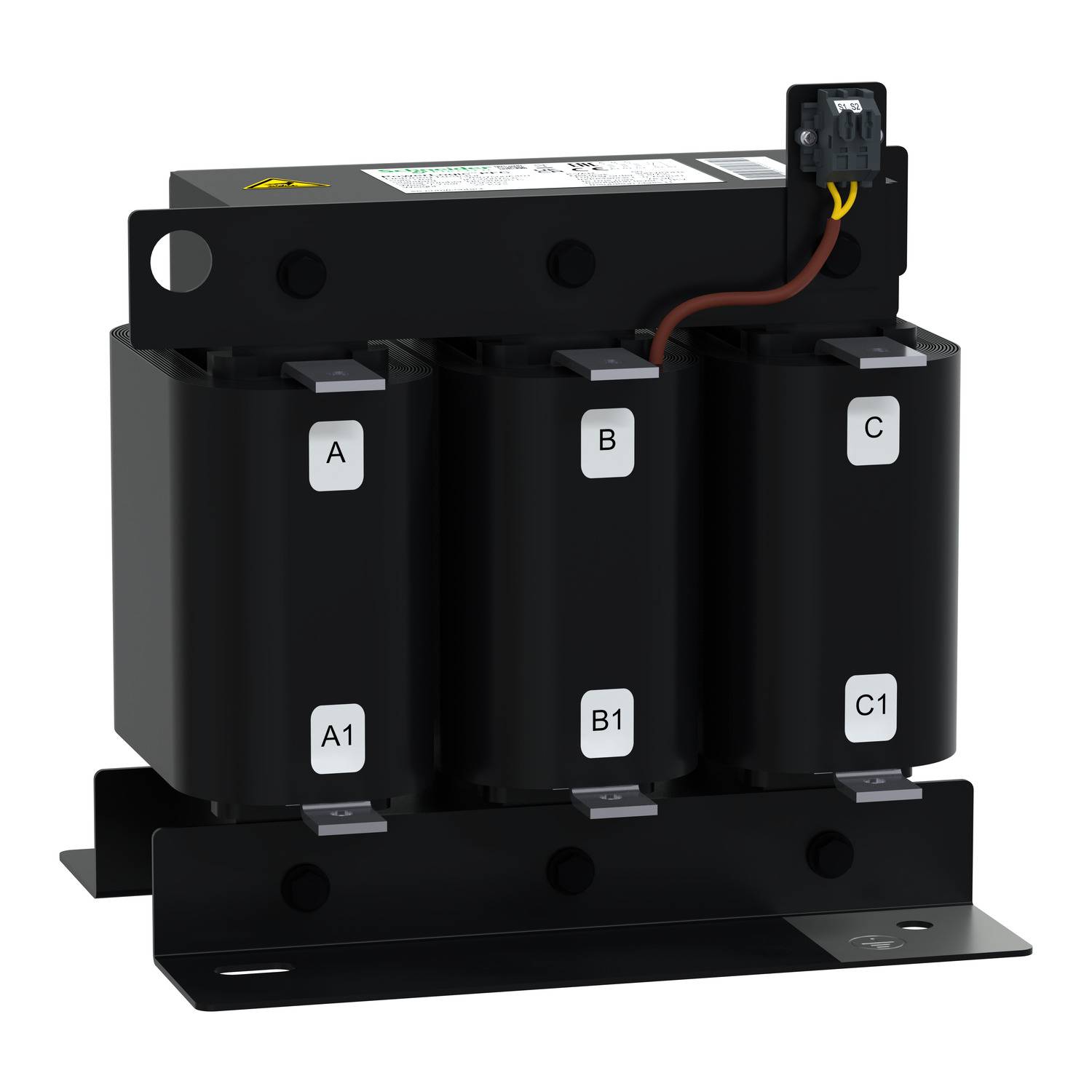

Schneider Electric LVR07500A40T Line choke 1 pc(s)
EAN:
Part number:
Item no:
Product type
Line choke
Length
200 mm
Width
260 mm
Height
270 mm
Weight
22 kg
Datasheet (PDF)
Number
Total (€ 626.05 / piece)
€ 626.05
plus VAT.
14-day return policy included
Technical specifications
- Product type
Line choke
- Length
200 mm
- Width
260 mm
- Height
270 mm
- Weight
22 kg
- Content
1 pc(s)
- Dim
(L x W x H) 200 x 260 x 270 mm
- Type
LVR07500A40T
IP00
50
400 V
86
3
7
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2927419 Schneider Electric LVR07500A40T Line choke 1 pc(s)
Datasheet 2927419 Schneider Electric LVR07500A40T Line choke 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2927419 Schneider Electric LVR07500A40T Line choke 1 pc(s)
Information
Information 2927419 Schneider Electric LVR07500A40T Line choke 1 pc(s)
Information 2927419 Schneider Electric LVR07500A40T Line choke 1 pc(s)
Description
The VarPlus throttle coils are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and reactors are configured in the series oscillating circuit. Adjusted so that the serial resonance frequency is below the lowest harmonic frequency in the system. This choke is designed for an output power of 50 kVar with a tuning sequence of 3,8/190 Hz at 400V AC and 50 Hz. Relative impedance, 7%. This component complies with the IEC 60068 standards. This component requires forced convection, a fan must be added. The dimensions of the housing are 270 mm in height, 260 mm in width and 200 mm in depth. For a product weight of 22 kg.
