Schneider Electric LVS04033 Distribution Block for DIN rail mounting 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distribution Block
Features
for DIN rail mounting
Length
63 mm
Width
105 mm
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Packaging type
Piece
- Product type
Distribution Block
- Features
for DIN rail mounting
- Length
63 mm
- Width
105 mm
- Height
138 mm
- Dim
(L x W x H) 63 x 105 x 138 mm
- Content
1 pc(s)
- Type
LVS04033
- Number of pins
3
250 A
DIN rail
105
140 mm
64 mm
Screwless
3
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936399 Schneider Electric LVS04033 Distribution Block for DIN rail mounting 1 pc(s) Piece
Datasheet 2936399 Schneider Electric LVS04033 Distribution Block for DIN rail mounting 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2936399 Schneider Electric LVS04033 Distribution Block for DIN rail mounting 1 pc(s) Piece
Information
Information 2936399 Schneider Electric LVS04033 Distribution Block for DIN rail mounting 1 pc(s) Piece
Information 2936399 Schneider Electric LVS04033 Distribution Block for DIN rail mounting 1 pc(s) Piece
Information 2936399 Schneider Electric LVS04033 Distribution Block for DIN rail mounting 1 pc(s) Piece
Description

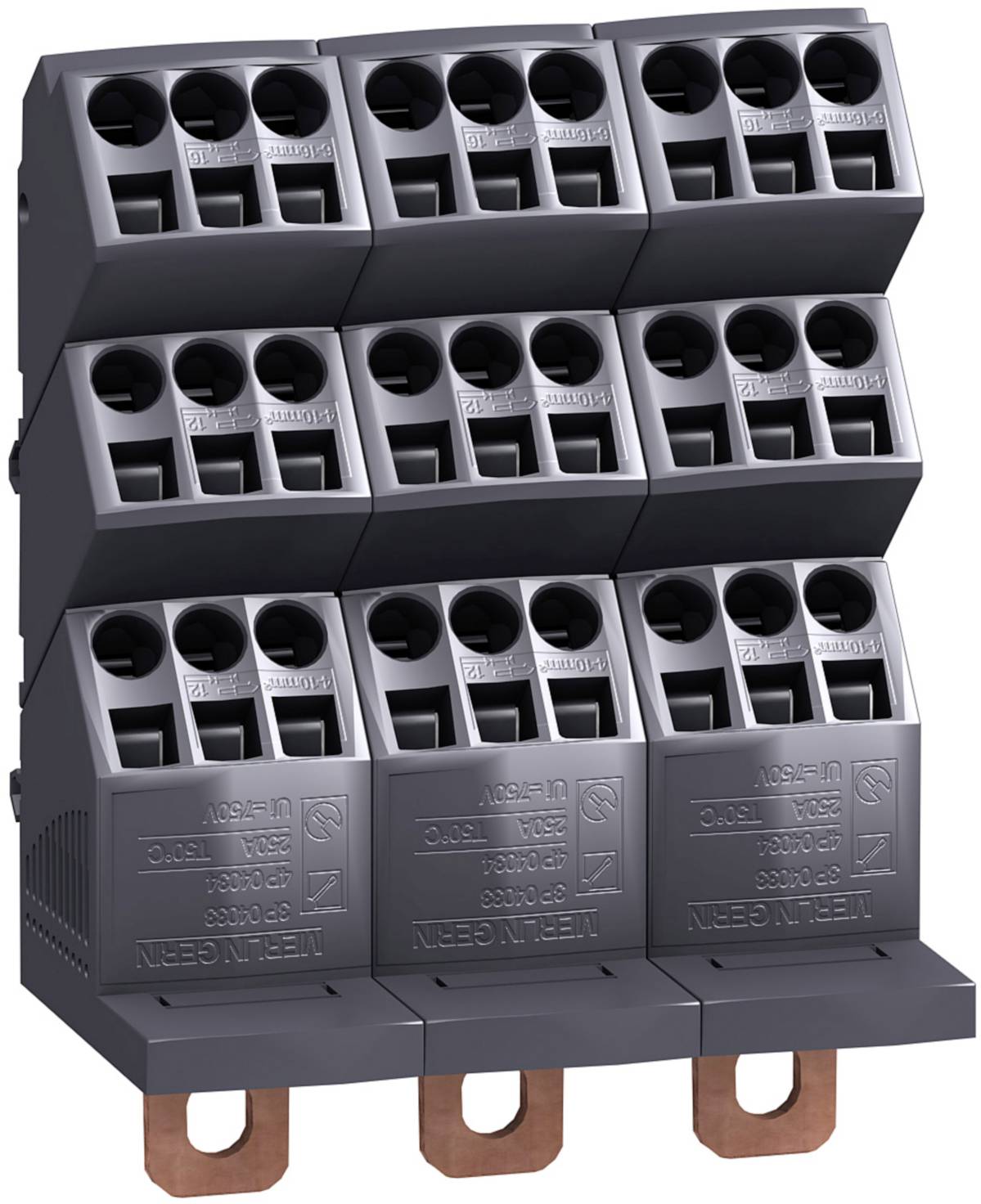

PrismaSet P. Linergy DP distribution block 3-pin with a permissible current up to 250 A with power supply connection directly to a Compact NSX or Compact INS up to 250 A and output-side connection capacity for cables of 6 x 10 mm² per phase. And 3 x 16 mm² per phase, with a rated surge resistance (Ipk) 30 kA, rated short-time current (ICW) 8.5 kA eff./1s, rated insulation voltage (UI) 750 V AC, rated voltage (Ue) 690 V AC. Rated surge voltage strength (Uimp) 8 kV, with IPXXB degree of protection for mounting on a DIN rail or on a mounting plate with a width of 105 mm, a height of 138 mm and a depth of 63 mm.
