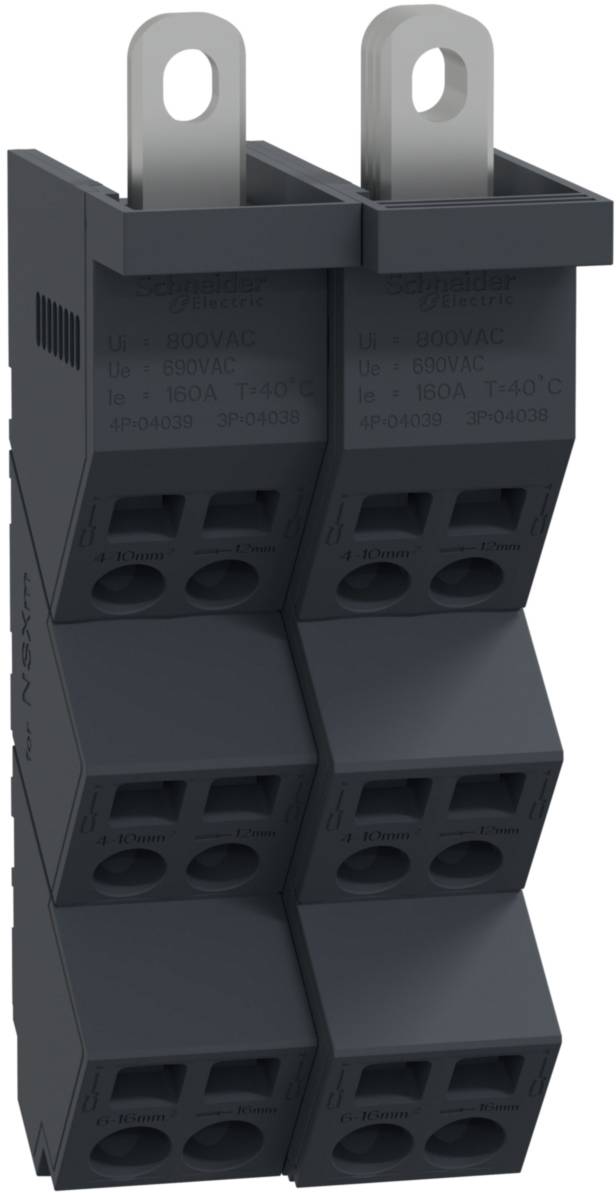

Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Distribution Block
Features
with mount plate
Length
58 mm
Width
108 mm
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Single
- Product type
Distribution Block
- Features
with mount plate
- Length
58 mm
- Width
108 mm
- Height
140 mm
- Dim
(L x W x H) 58 x 108 x 140 mm
- Content
1 pc(s)
- Type
LVS04039
- Number of pins
4
160 A
DIN rail
108
140 mm
58 mm
Screwless
4
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936407 Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
Datasheet 2936407 Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 2936407 Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
Information
Information 2936407 Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
Information 2936407 Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
Information 2936407 Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
Information 2936407 Schneider Electric LVS04039 Distribution Block with mount plate 1 pc(s) Single
Description
PrismaSet P. Linergy DP 4-pin distribution block with a permissible current of up to 160 A with feed connection directly to a Compact NSXm up to 160 A and output-side connection capacity for cables of 4 x 10 mm² per phase. And 2 x 16 mm² per phase, with a rated surge resistance (Ipk) 20 kA, rated short-time current (ICC) 70 kA, rated insulation voltage (UI) 800 V AC, rated voltage (Ue) 690 V AC. Rated surge voltage strength (Uimp) 8 kV, with IPXXB degree of protection for mounting on a DIN rail or on a mounting plate with a width of 108 mm, a height of 140 mm and a depth of 58 mm.
