Schneider Electric LVS04053 Terminal block with hole 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal block
Material
Copper
Features
with hole
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Terminal block
- Features
with hole
- Material
Copper
- Content
1 pc(s)
- Type
LVS04053
- Material properties
insulated
- Number of pins
4
250 A
Screw
470
235 mm
115 mm
Screwing
4
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2936417 Schneider Electric LVS04053 Terminal block with hole 1 pc(s) Piece
Datasheet 2936417 Schneider Electric LVS04053 Terminal block with hole 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2936417 Schneider Electric LVS04053 Terminal block with hole 1 pc(s) Piece
Information
Information 2936417 Schneider Electric LVS04053 Terminal block with hole 1 pc(s) Piece
Description

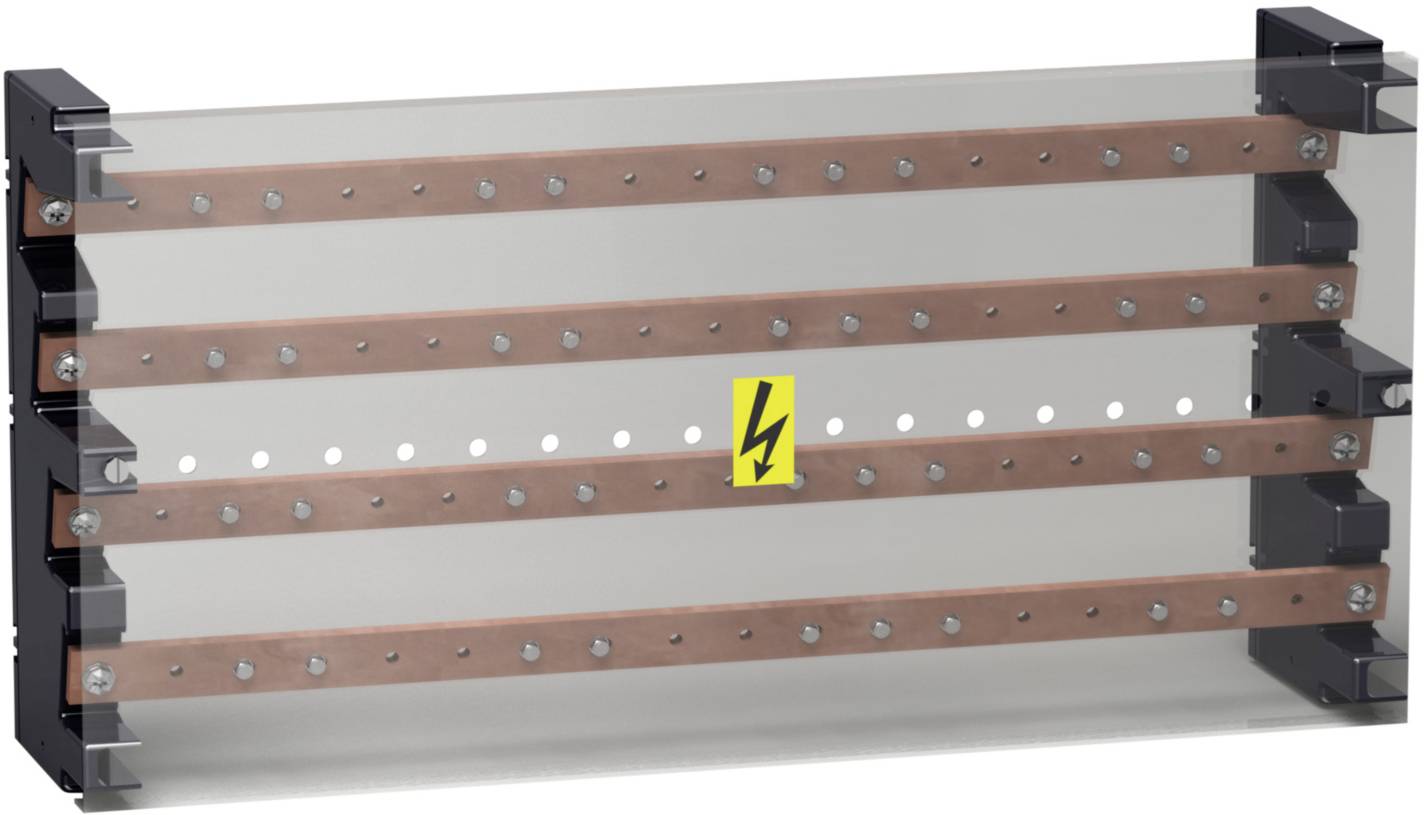

PrismaSet P. Linergy BS floor terminal block 4-pin with a busbar cross-section of 20 x 5 mm and a permissible current up to 250 A, with holes at 25 mm intervals, with 4 feeds per phase with a diameter of 12.2 mm holes. And output-side connection capacity from 13 x 16 to 50 mm² per phase, with a rated surge resistance (Ipk) 40 kA, rated short-time current (ICC) 150 kA, rated insulation voltage (UI) 750 V AC. Rated voltage (Ue) 440 V AC, rated surge resistance (Uimp) 8 kV, for mounting on a mounting plate with a width of 470 mm, a height of 235 mm and a depth of 115 mm. 2 multi-stage carrier made of insulation material, 4 pieces of beveled copper rails with drillings, 36 pieces of M6 x 16 mm screws with washers and 1 pieces of front-side contact protection cover are included in the delivery.
