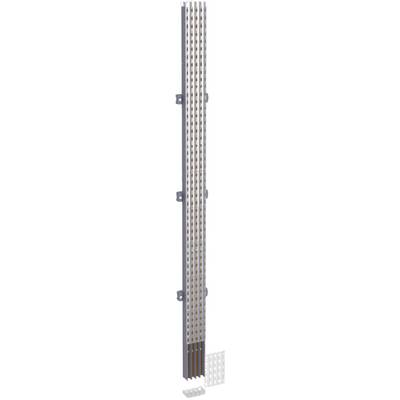

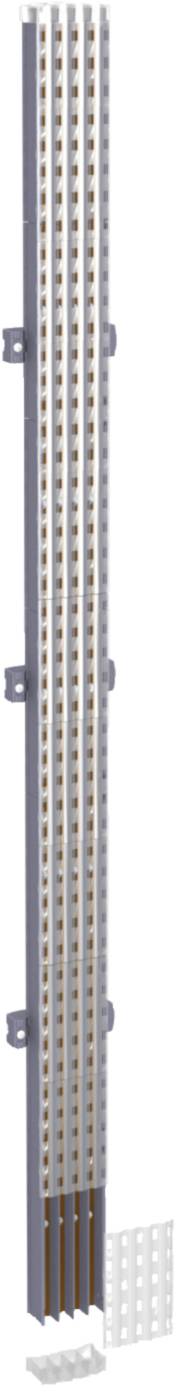

Schneider Electric LVS04119 LVS04119 Busbar 3-pin 1400 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Busbar
Length
1400 mm
Features
3-pin
Material properties
insulated
Datasheet (PDF)
Number
Total (1 m = € 437.58)
€ 612.61
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Busbar
- Features
3-pin
- Material properties
insulated
- Length
1400 mm
- Content
1 pc(s)
- Type
LVS04119
Flat
Untreated
1400 m
630 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936341 Schneider Electric LVS04119 LVS04119 Busbar 3-pin 1400 mm 1 pc(s) Piece
Datasheet 2936341 Schneider Electric LVS04119 LVS04119 Busbar 3-pin 1400 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2936341 Schneider Electric LVS04119 LVS04119 Busbar 3-pin 1400 mm 1 pc(s) Piece
Information
Information 2936341 Schneider Electric LVS04119 LVS04119 Busbar 3-pin 1400 mm 1 pc(s) Piece
Information 2936341 Schneider Electric LVS04119 LVS04119 Busbar 3-pin 1400 mm 1 pc(s) Piece
Information 2936341 Schneider Electric LVS04119 LVS04119 Busbar 3-pin 1400 mm 1 pc(s) Piece
Description
PrismaSet P. Linergy BW insulated 3-pin busbar for 630 A with a rated surge current (Ipk) 52.5 kA, rated insulation voltage (UI) 1000 V AC, rated surge voltage resistance (Uimp) 8 kV, rated short-time current (ICC) 150 kA. And a length of 1400 mm.
