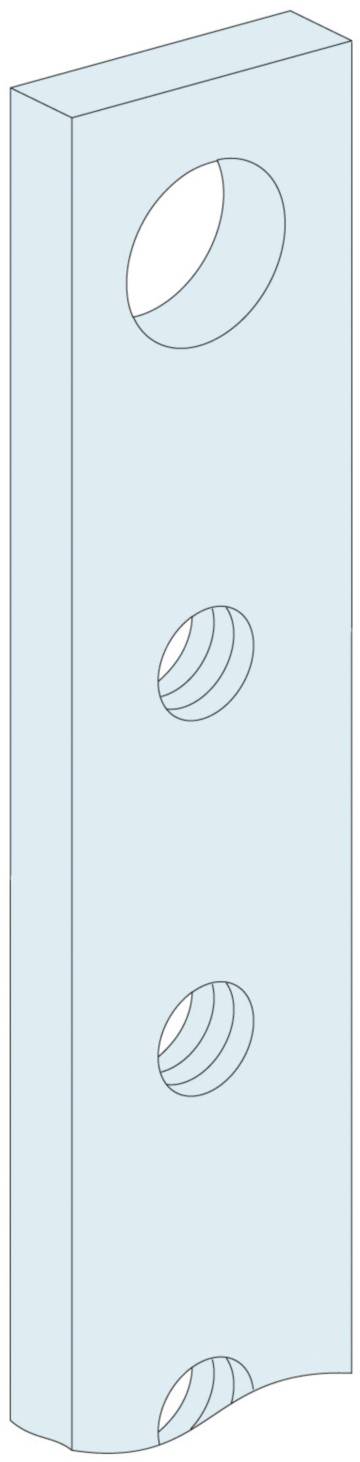

Schneider Electric LVS04163 LVS04163 Busbar Copper 1000 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar
Length
1000 mm
Width
32 mm
Material
Copper
Height
5 mm
Datasheet (PDF)
Number
Total (1 m = € 205.87)
€ 205.87
plus VAT.
14-day return policy included
Technical specifications
- Product type
Busbar
- Material
Copper
- Length
1000 mm
- Width
32 mm
- Height
5 mm
- Dim
(L x W x H) 1000 x 32 x 5 mm
- Content
1 pc(s)
- Type
LVS04163
32
Flat
5 mm
Untreated
1000 m
400 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936388 Schneider Electric LVS04163 LVS04163 Busbar Copper 1000 mm 1 pc(s)
Datasheet 2936388 Schneider Electric LVS04163 LVS04163 Busbar Copper 1000 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2936388 Schneider Electric LVS04163 LVS04163 Busbar Copper 1000 mm 1 pc(s)
Information
Information 2936388 Schneider Electric LVS04163 LVS04163 Busbar Copper 1000 mm 1 pc(s)
Information 2936388 Schneider Electric LVS04163 LVS04163 Busbar Copper 1000 mm 1 pc(s)
Description
PrismaSet P. Linergy BS 4-pin, rear-side vertical copper busbar for 400 A with a rail size of 32 x 5 mm, with threaded holes M6 at 25 mm intervals, with a rated surge resistance (Ipk) 55 kA. Rated insulation voltage (UI) 1000 V AC, rated short-time current (ICC) 150 kA. Or 4-pole multi-stage vertical copper busbar for 400 A with a rail size of 32 x 5 mm, with threaded holes M6 at 25 mm intervals. With a rated surge current (Ipk) 55 kA, rated insulation voltage (UI) 750 V AC, rated short-time current (ICC) 150 kA, and a length of 1000 mm.
