Schneider Electric LVS04504 LVS04504 Busbar 1670 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Busbar
Length
1670 mm
Width
150 mm
Dim
(L x W) 1670 mm x 150 mm
Datasheet (PDF)
Number
Total (1 m = € 67.93)
€ 113.44
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Busbar
- Length
1670 mm
- Width
150 mm
- Dim
(L x W) 1670 mm x 150 mm
- Content
1 pc(s)
- Type
LVS04504
42.5
Profile
32.5 mm
Untreated
1670 m
1000 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936318 Schneider Electric LVS04504 LVS04504 Busbar 1670 mm 1 pc(s) Piece
Datasheet 2936318 Schneider Electric LVS04504 LVS04504 Busbar 1670 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2936318 Schneider Electric LVS04504 LVS04504 Busbar 1670 mm 1 pc(s) Piece
Information
Information 2936318 Schneider Electric LVS04504 LVS04504 Busbar 1670 mm 1 pc(s) Piece
Information 2936318 Schneider Electric LVS04504 LVS04504 Busbar 1670 mm 1 pc(s) Piece
Information 2936318 Schneider Electric LVS04504 LVS04504 Busbar 1670 mm 1 pc(s) Piece
Description

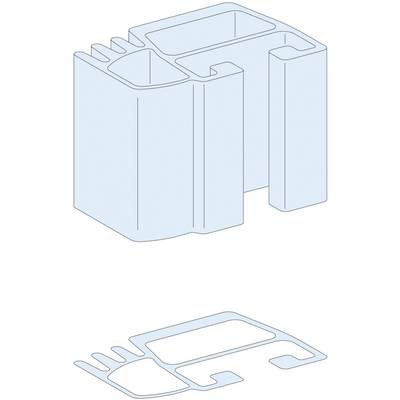

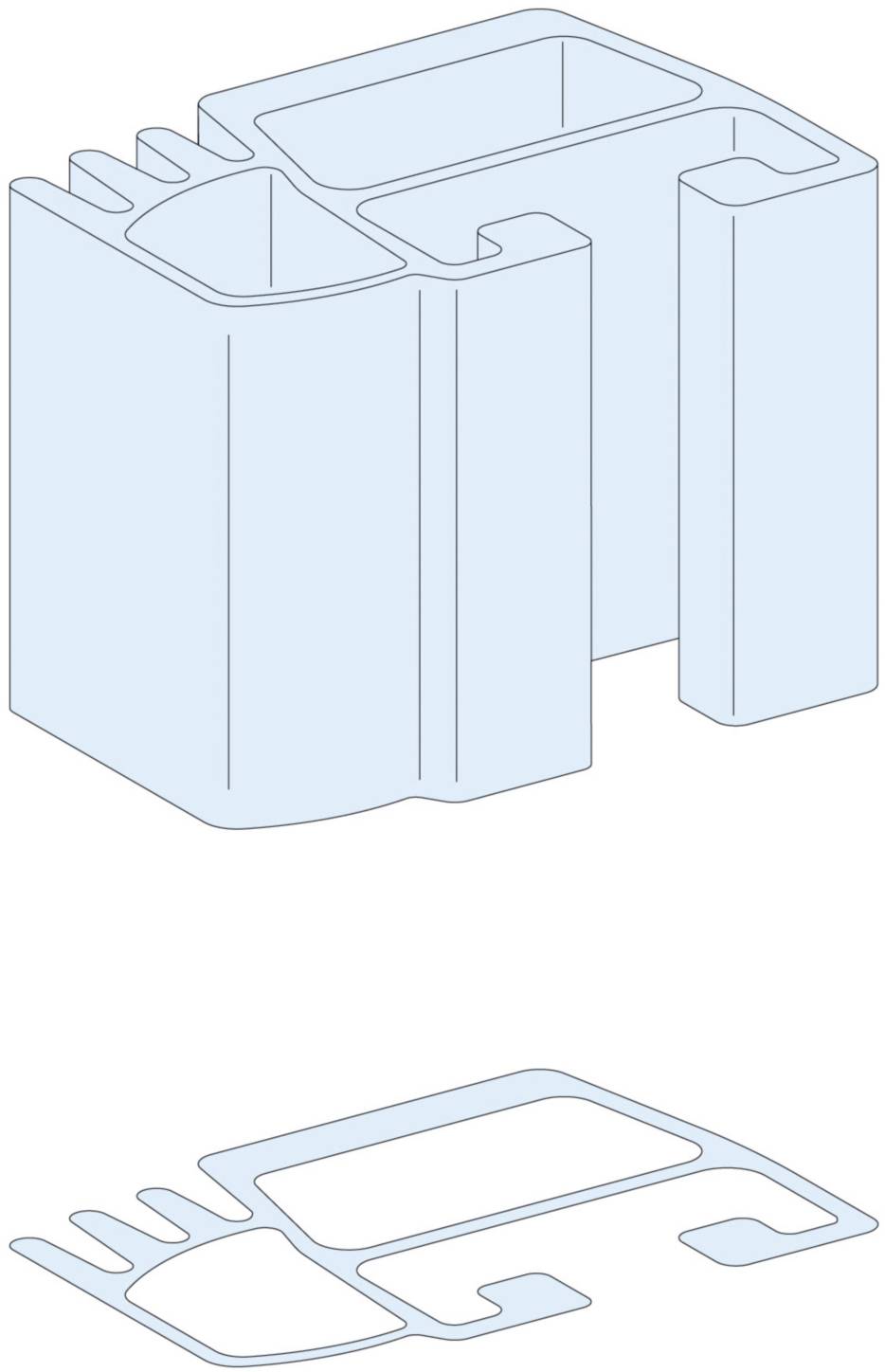

PrismaSet P. Linergy LGY vertical busbar with a permissible current of 1040 A with a degree of protection ? IP31, or a permissible current of 950 A with a protection class gt/ IP31. In a side busbar room with a width of 150 mm, or on the rear of a circuit, at an ambient temperature of 35 °C and a length of 1670 mm. Or a permissible current of 2000 A with a degree of protection ? IP31 when using two rails per phase, or a permissible current of 1820 A with a degree of protection gt/ IP31 when using two rails per phase. In a side busbar room with a width of 2 x 150 mm, at an ambient temperature of 35 °C and a length of 1670 mm.
This text is machine translated.
This text is machine translated.
