Schneider Electric LVS04518 LVS04518 Busbar Copper 1675 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar
Length
1675 mm
Width
80 mm
Material
Copper
Max. temperature
35 °C
Datasheet (PDF)
Number
Total (1 m = € 205.19)
€ 343.70
plus VAT.
14-day return policy included
Technical specifications
- Product type
Busbar
- Material
Copper
- Max. temperature
35 °C
- Length
1675 mm
- Width
80 mm
- Height
5 mm
- Dim
(L x W x H) 1675 x 80 x 5 mm
- Content
1 pc(s)
- Type
LVS04518
80
Flat
5 mm
Untreated
1675 m
1000 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936369 Schneider Electric LVS04518 LVS04518 Busbar Copper 1675 mm 1 pc(s)
Datasheet 2936369 Schneider Electric LVS04518 LVS04518 Busbar Copper 1675 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2936369 Schneider Electric LVS04518 LVS04518 Busbar Copper 1675 mm 1 pc(s)
Information
Information 2936369 Schneider Electric LVS04518 LVS04518 Busbar Copper 1675 mm 1 pc(s)
Information 2936369 Schneider Electric LVS04518 LVS04518 Busbar Copper 1675 mm 1 pc(s)
Information 2936369 Schneider Electric LVS04518 LVS04518 Busbar Copper 1675 mm 1 pc(s)
Description

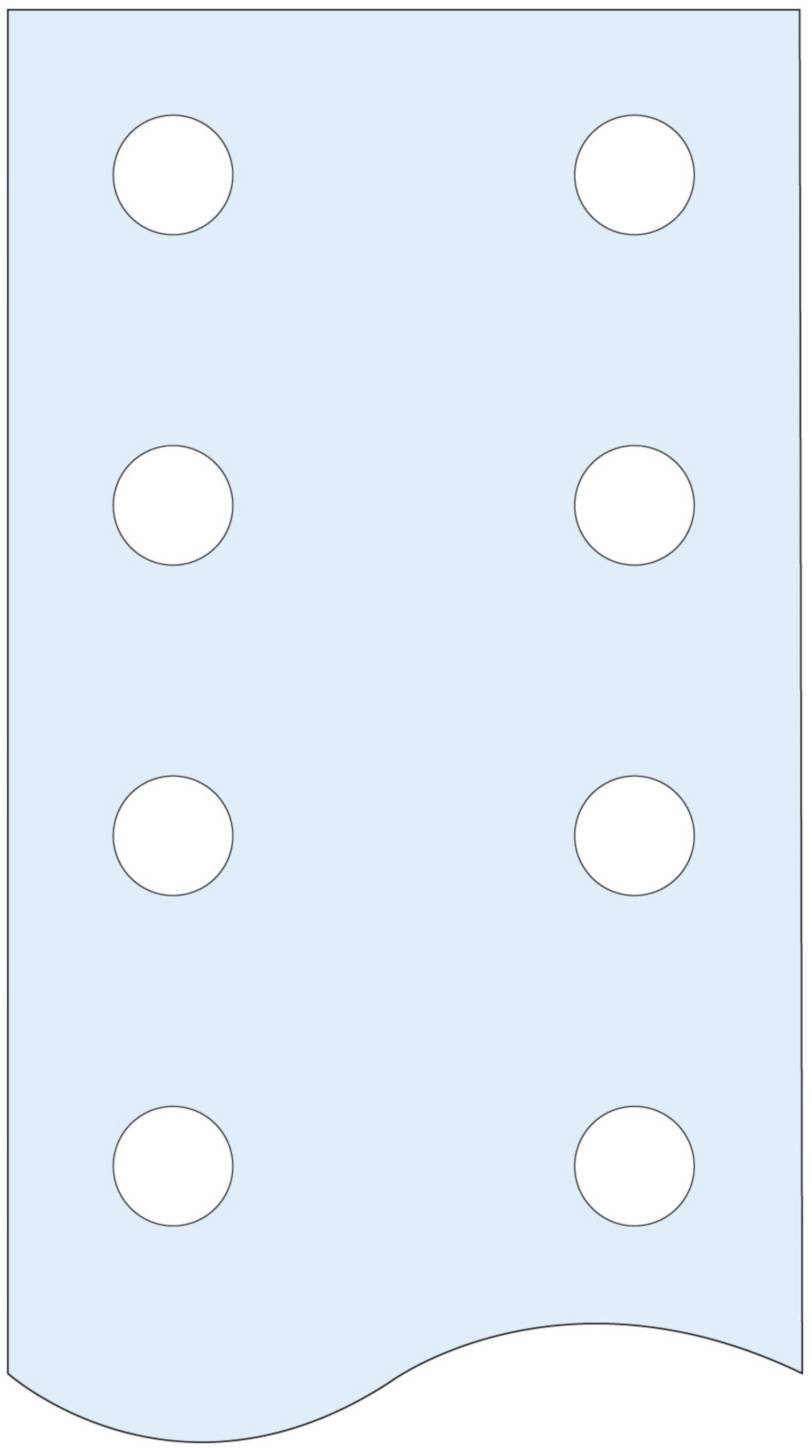

PrismaSet P. Linergy BS vertical copper busbar with a rail size of 80 x 5 mm, with holes diameter 10 mm at 25 mm intervals, a permissible current of 1000 A with a degree of protection ? IP31 Or a permissible current of 900 A with a degree of protection gt/ IP31, or a permissible current of 1800 A with a degree of protection ? IP31 when using two rails per phase. Or a permissible current of 1600 A with degree of protection gt/ IP31 when using two rails per phase, in a lateral busbar compartment with a width of 150 mm or a permissible current of 1000 A with degree of protection ? IP31, or a permissible current of 900 A with protection class gt/ IP31. Or a permissible current of 1800 A with degree of protection ? IP31 when using two rails per phase, or a permissible current of 1600 A with degree of protection gt/ IP31 when using two rails per phase. On the back of a control panel, at an ambient temperature of 35 °C and a length of 1675 mm.
This text is machine translated.
This text is machine translated.
