Schneider Electric LVS04528 LVS04528 Busbar Copper 1675 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Busbar
Length
1675 mm
Width
80 mm
Material
Copper
Datasheet (PDF)
Number
Total (1 m = € 368.75)
€ 617.65
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Busbar
- Material
Copper
- Length
1675 mm
- Width
80 mm
- Height
10 mm
- Dim
(L x W x H) 1675 x 80 x 10 mm
- Content
1 pc(s)
- Type
LVS04528
80
Flat
10 mm
Untreated
1675 m
1800 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936394 Schneider Electric LVS04528 LVS04528 Busbar Copper 1675 mm 1 pc(s) Piece
Datasheet 2936394 Schneider Electric LVS04528 LVS04528 Busbar Copper 1675 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2936394 Schneider Electric LVS04528 LVS04528 Busbar Copper 1675 mm 1 pc(s) Piece
Information
Information 2936394 Schneider Electric LVS04528 LVS04528 Busbar Copper 1675 mm 1 pc(s) Piece
Information 2936394 Schneider Electric LVS04528 LVS04528 Busbar Copper 1675 mm 1 pc(s) Piece
Information 2936394 Schneider Electric LVS04528 LVS04528 Busbar Copper 1675 mm 1 pc(s) Piece
Description

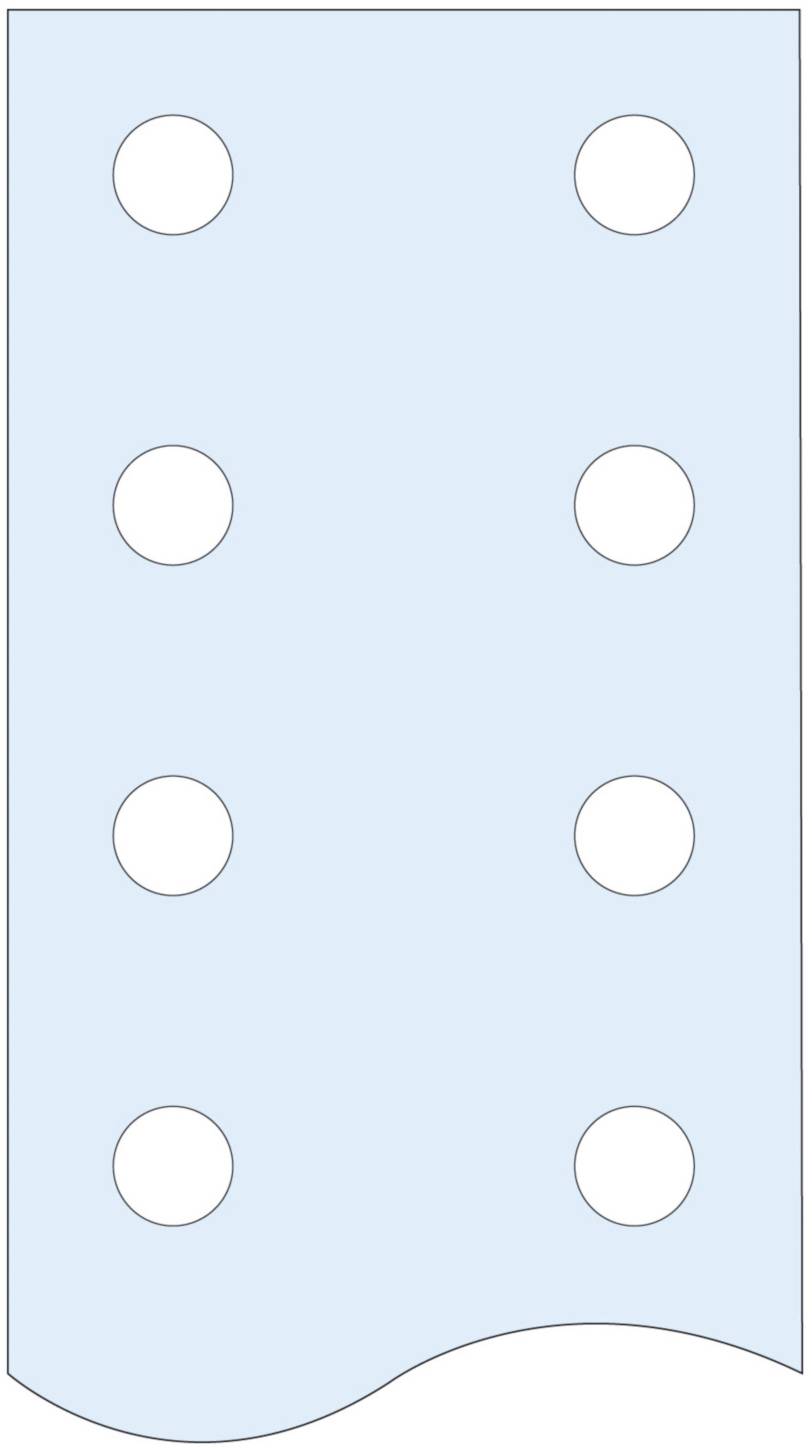

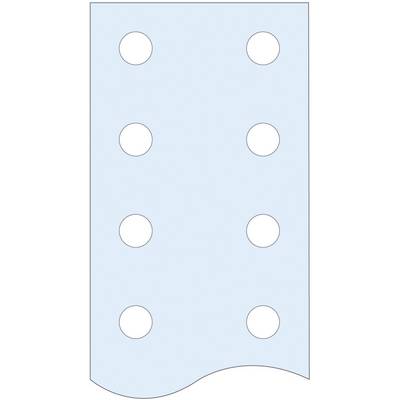

PrismaSet P. Linergy BS vertical copper busbar with a rail size of 80 x 10 mm, with holes diameter 10 mm at 25 mm intervals, a permissible current of 1800 A with a degree of protection ? IP31 Or a permissible current of 1600 A with a degree of protection gt/ IP31, or a permissible current of 2820 A with a degree of protection ? IP31 when using two rails per phase. Or a permissible current of 2500 A with degree of protection gt/ IP31 when using two rails per phase, in a lateral busbar compartment with a width of 150 mm or a permissible current of 3200 A with a degree of protection ? IP31 when using two rails per phase, or a permissible current of 2820 A with degree of protection gt/ IP31 when using two rails per phase. In a lateral busbar room with a width of 2 x 150 mm. Or a permissible current of 1600 A with protection type gt/ IP31, on the back of a control panel, at an ambient temperature of 35 °C and a length of 1675 mm.
