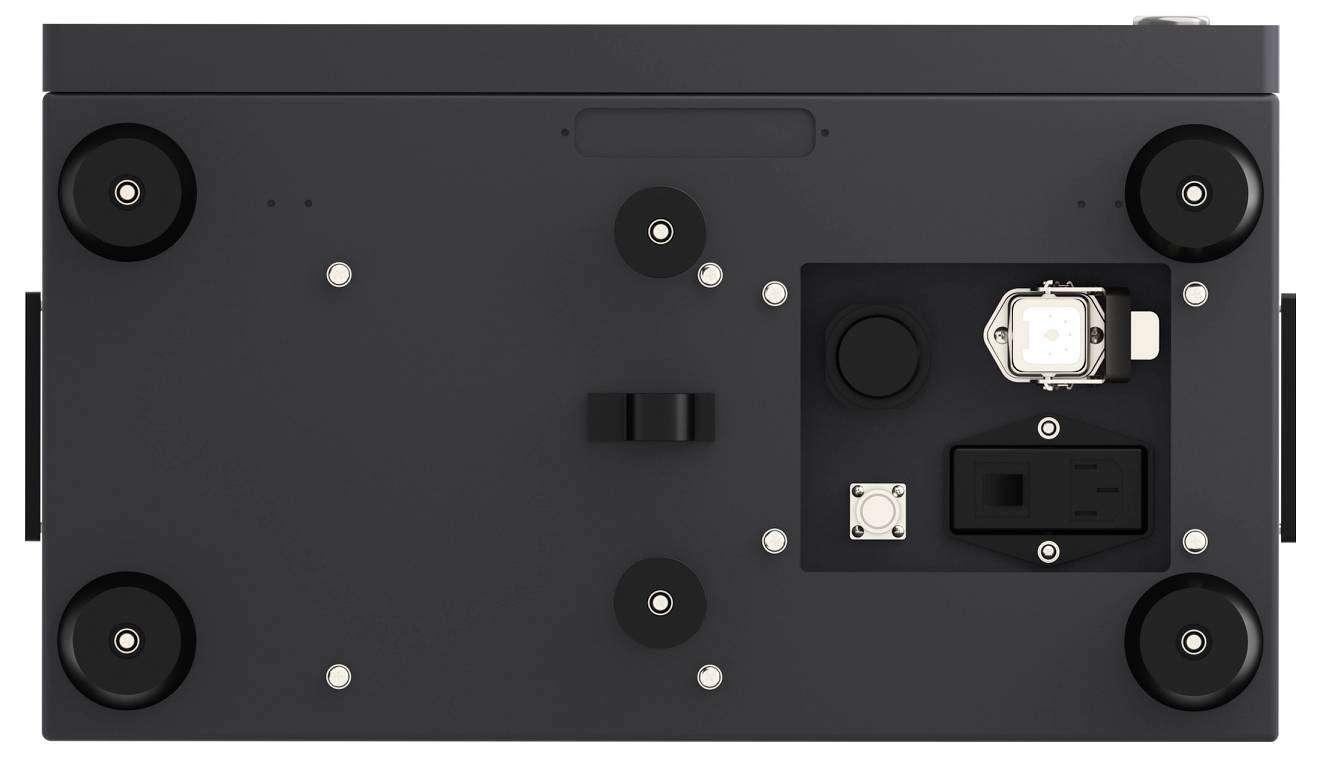

Black technical device from above with visible buttons and switches. Contains wheels at the corners and a large rectangular area on the right.

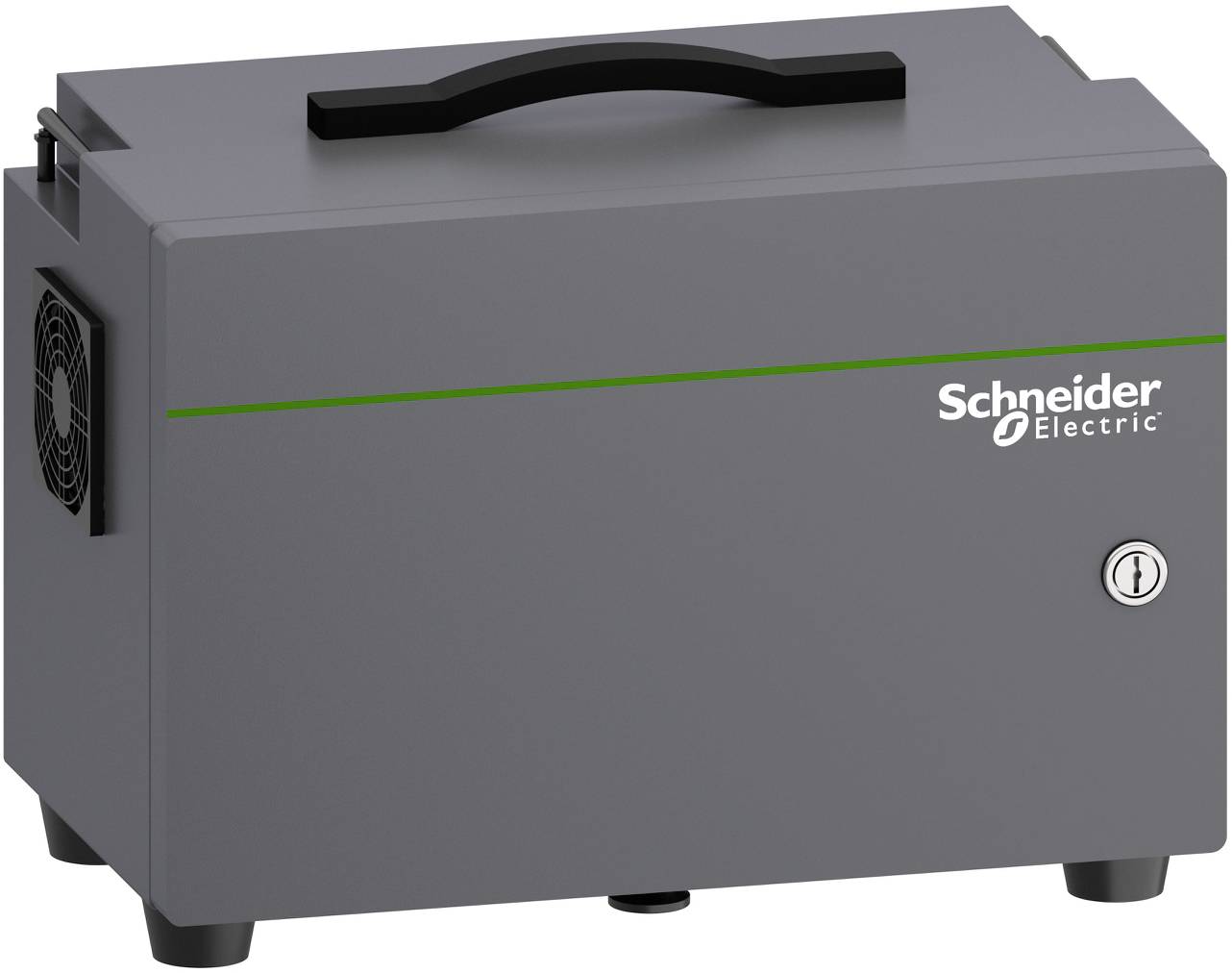

'Schneider Electric' portable power-operated box with handle and closure, used for power supply and protection.

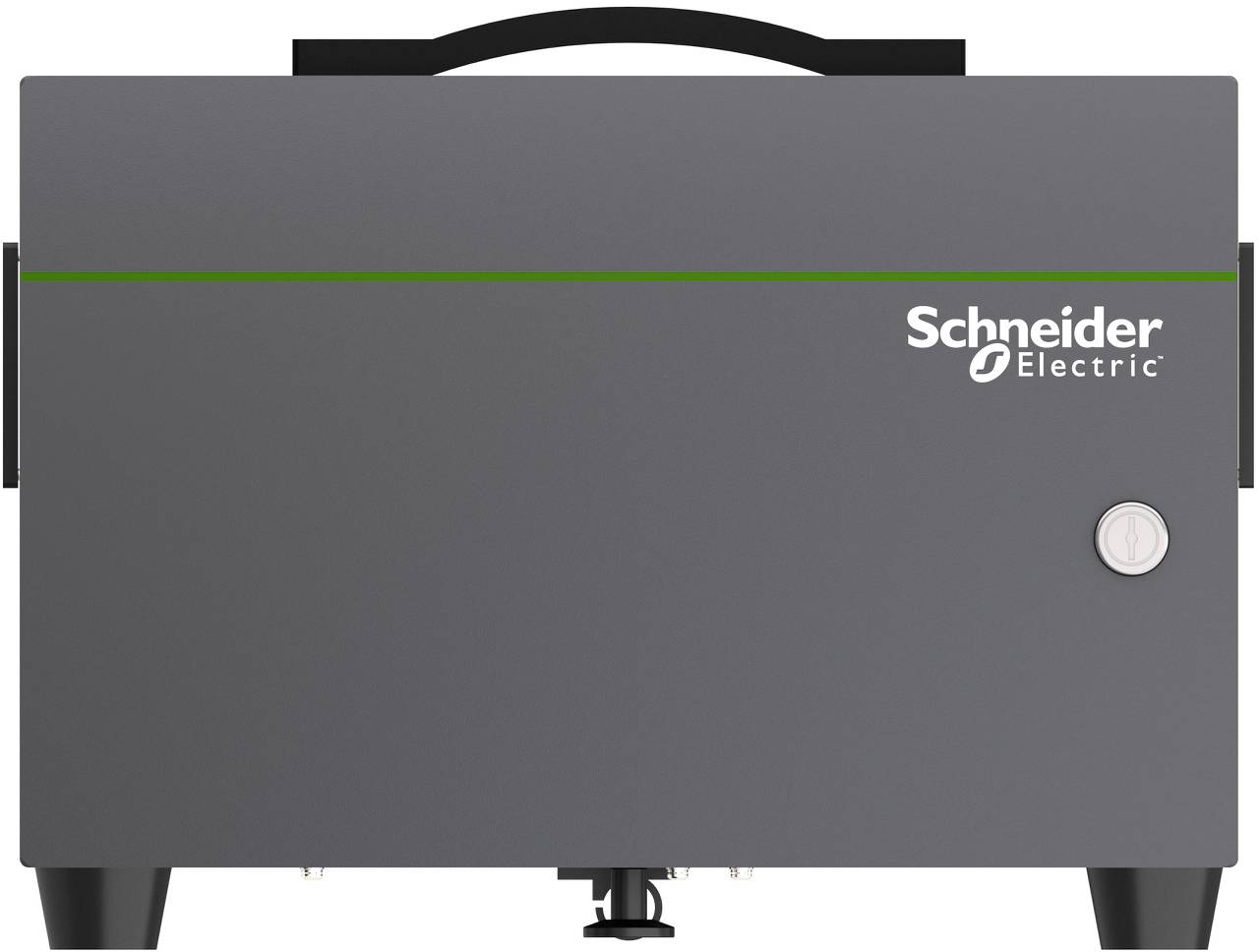

Electrical device from Schneider Electric with a gray housing and a green line at the top. It has a round knob and a handle.

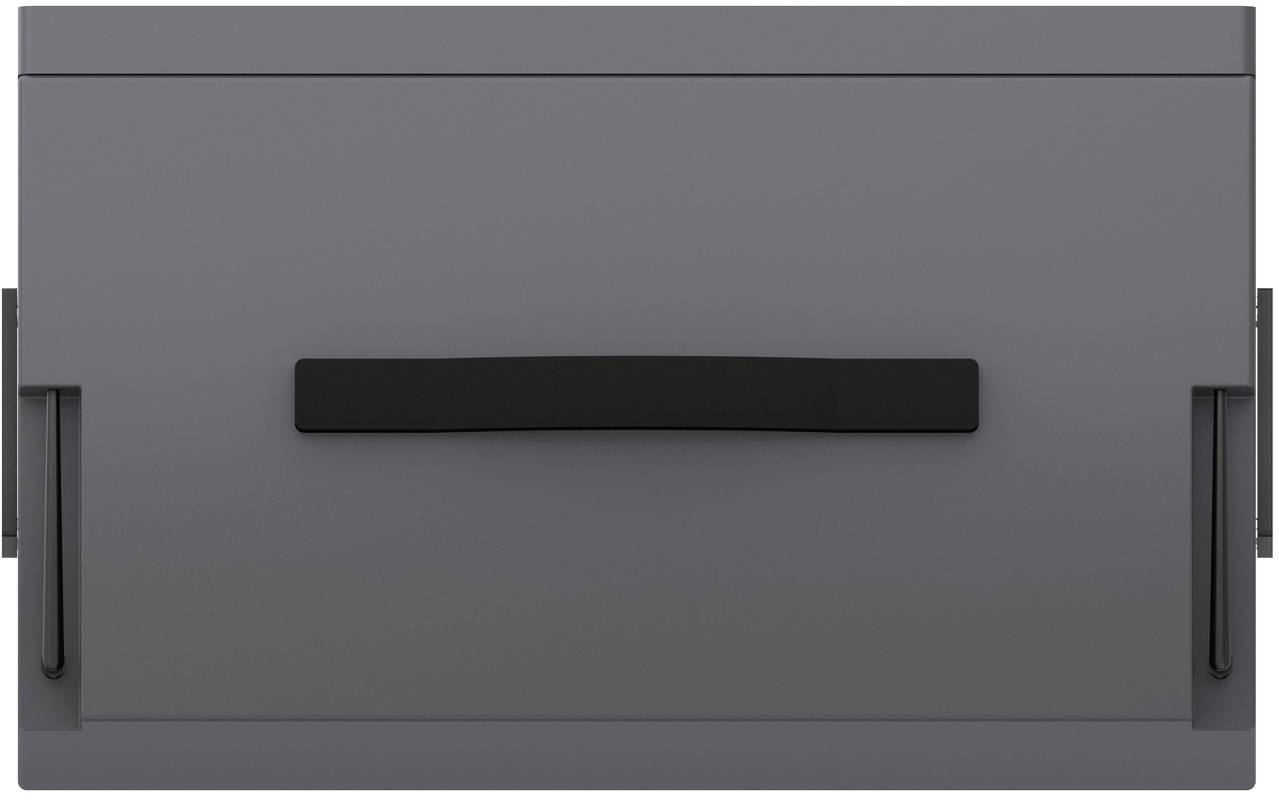

Gray drawer cabinet with a black handle in the center. The sides have black handles. Minimalist design.

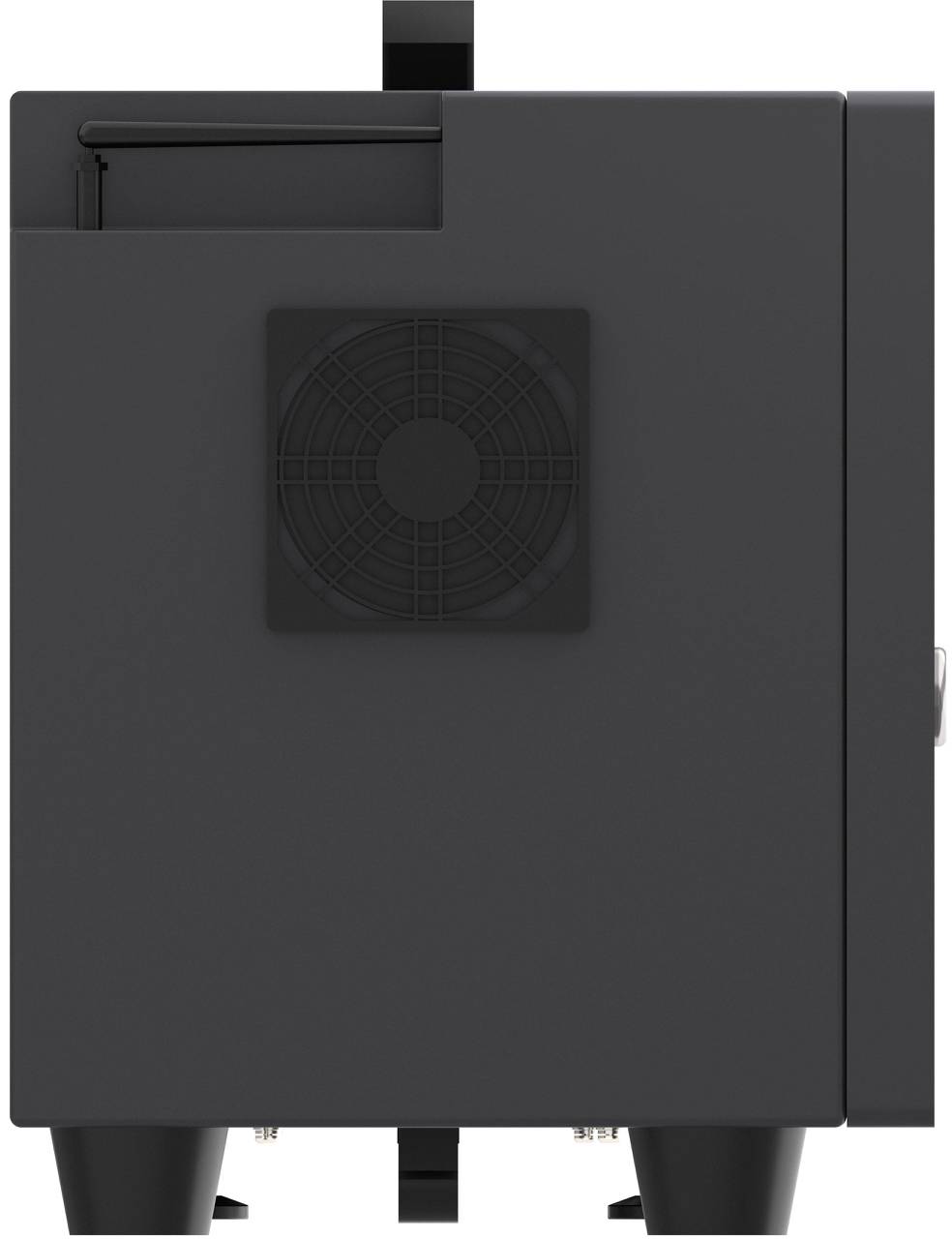

Black, rectangular device with ventilation grille on the side. It stands on short, sturdy feet.

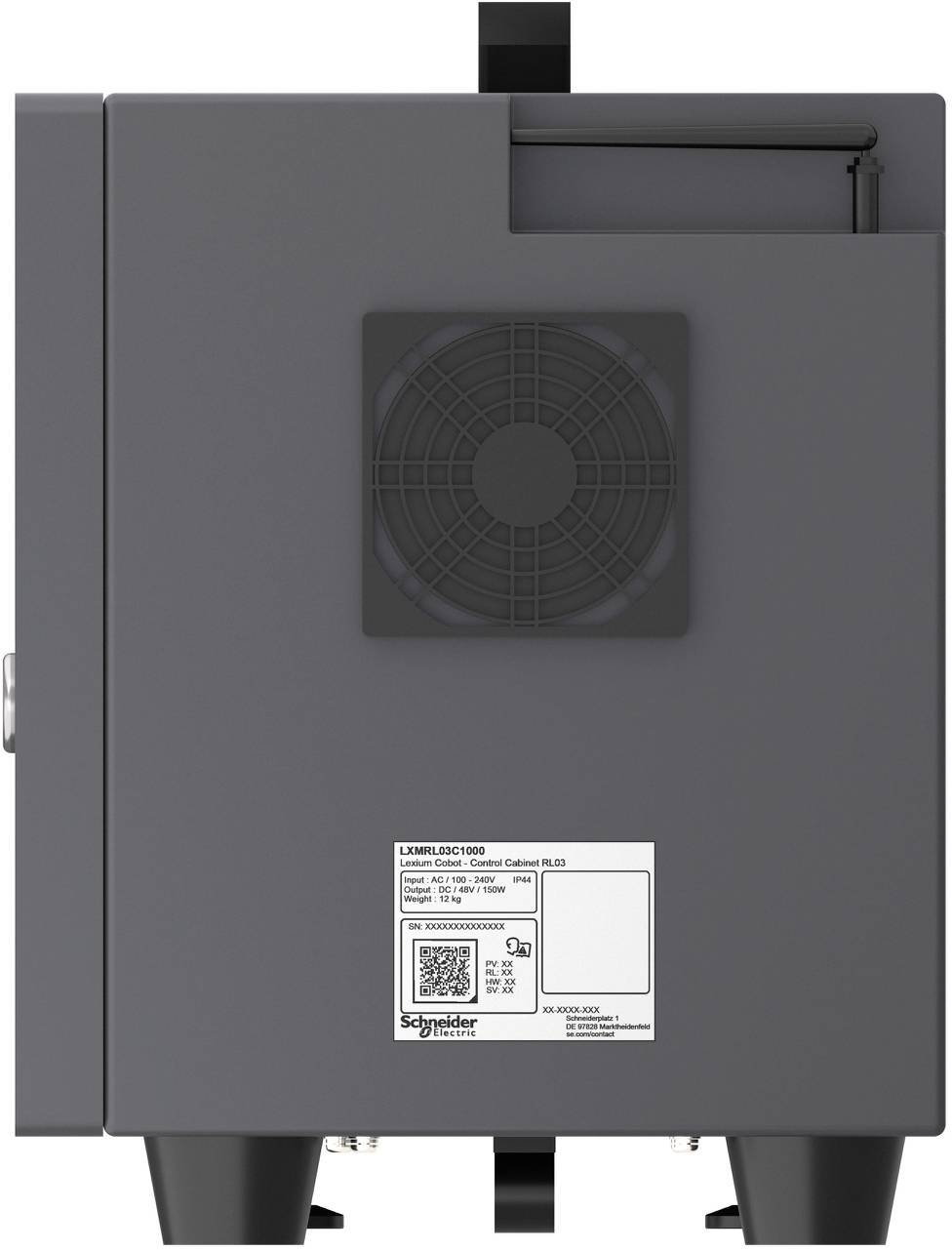

Wall-mounted black box with fan and sticker featuring detailed text and QR code.

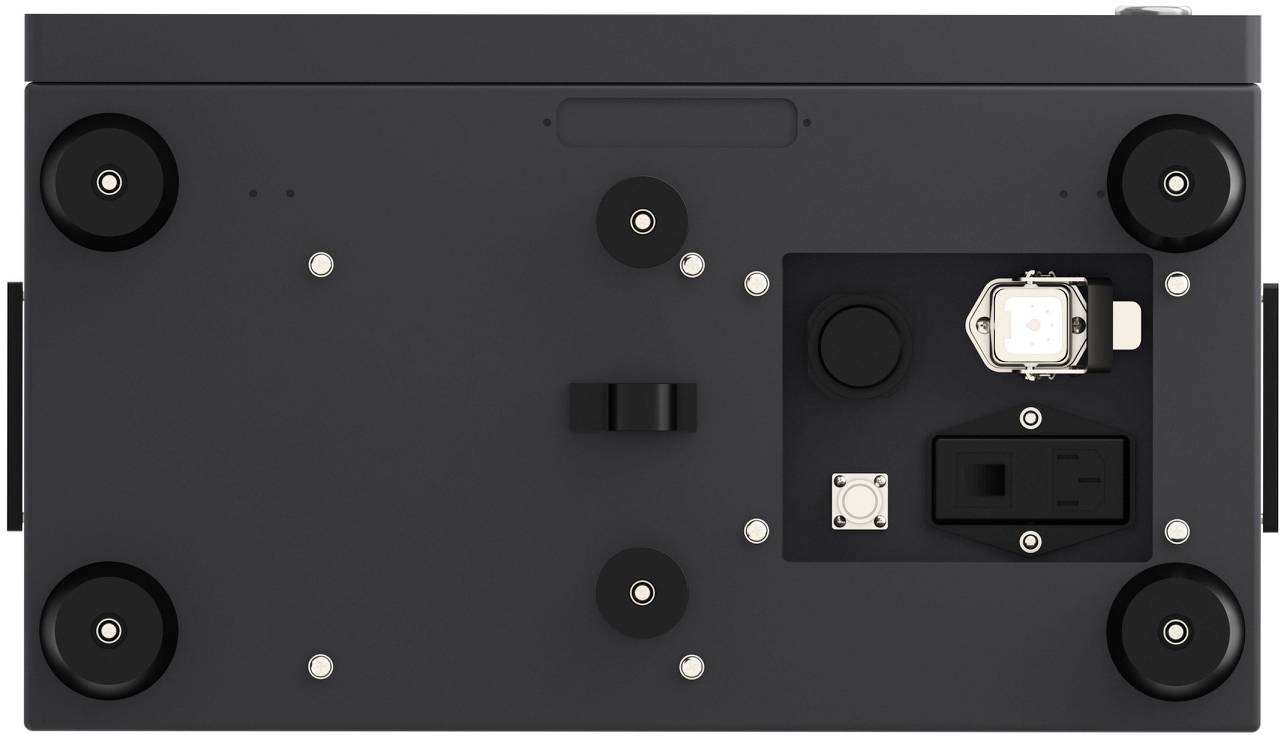

The figure shows the underside of an electronic device with visible components such as buttons, connections, and six round feet.

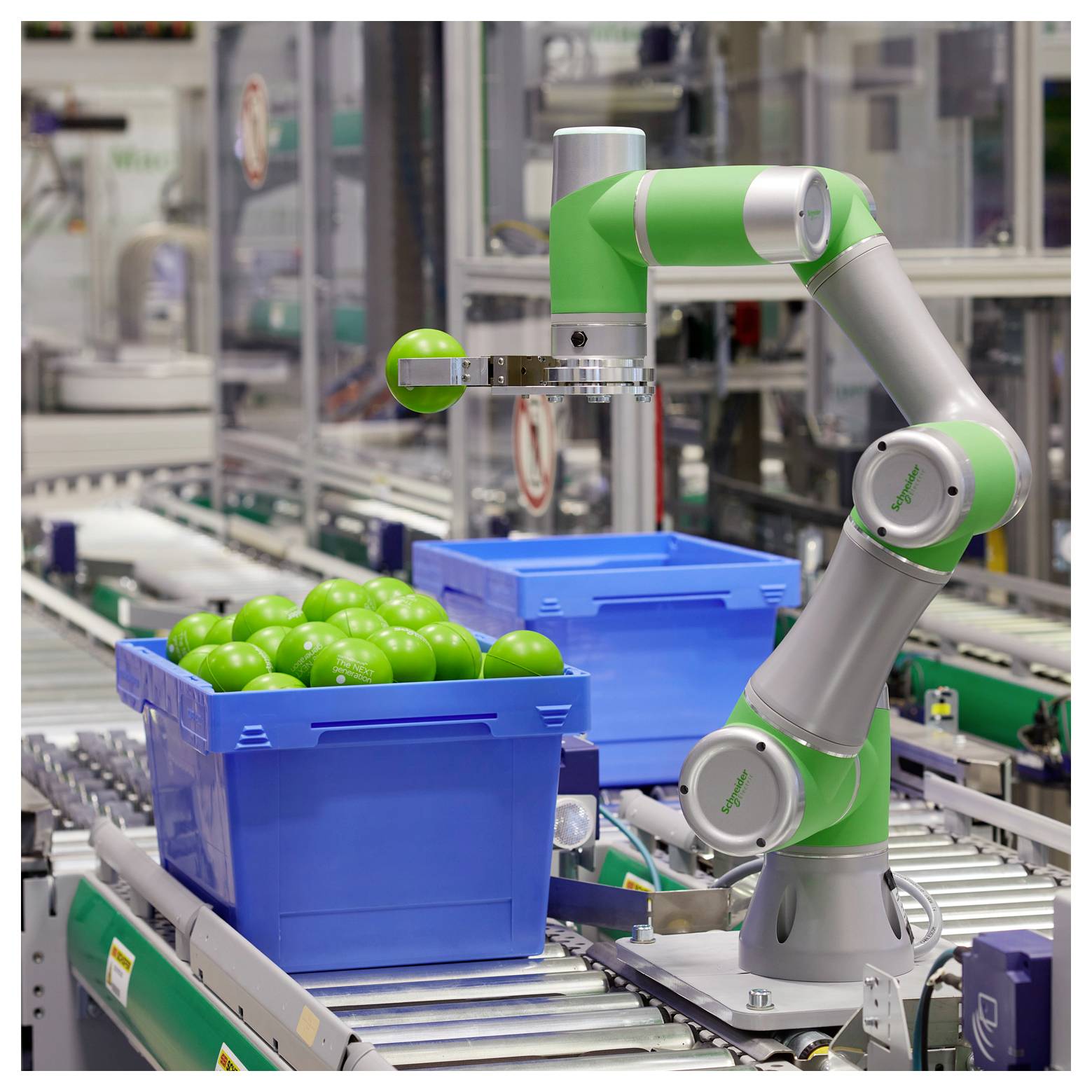

Industrial robot arm on a conveyor line placing a green apple into a blue crate in a factory packaging area.<br>

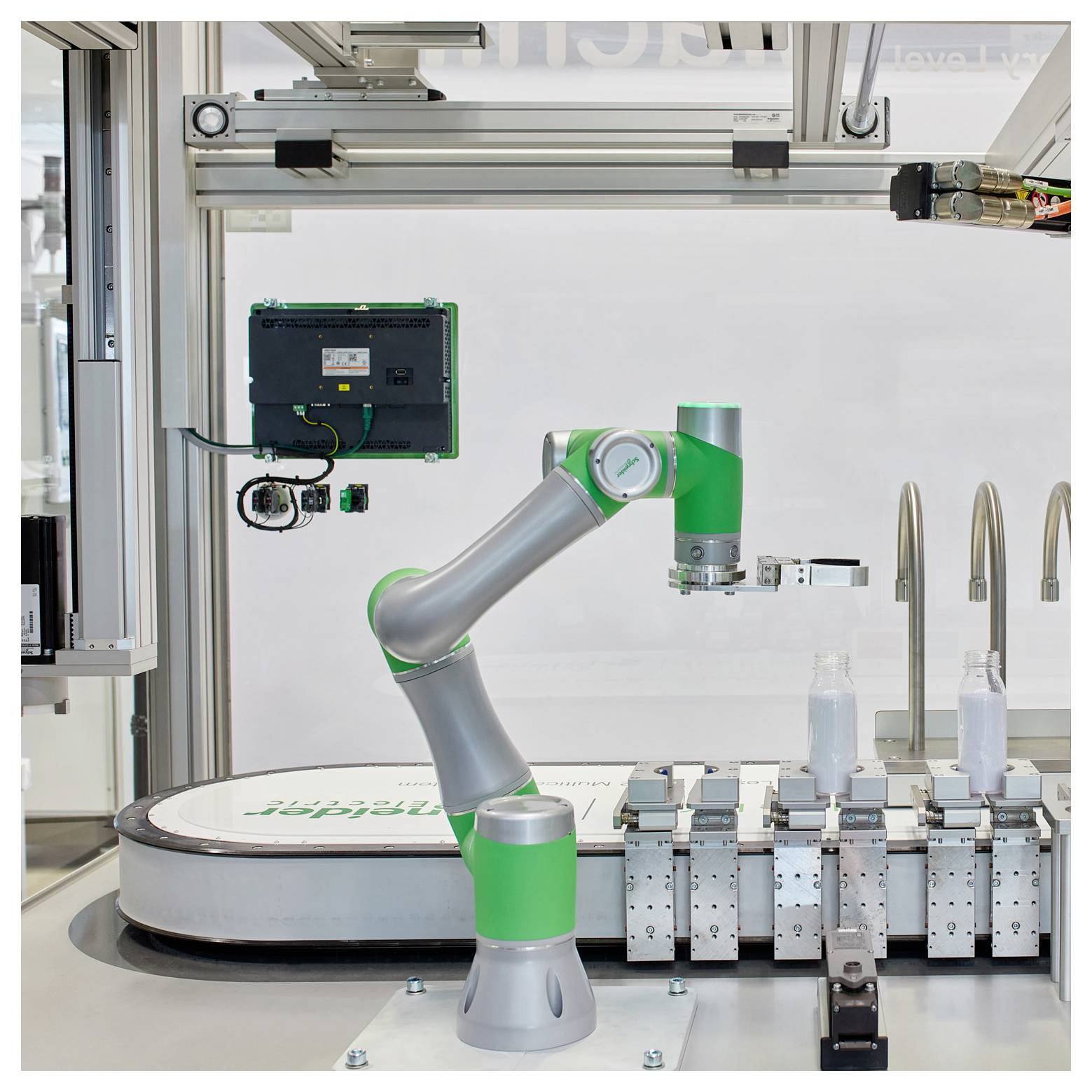

Industrial robotic arm in a lab or factory setup, positioned beside a conveyor with fixtures and bottles, likely for automated handling or assembly.

1/16

Datasheet (PDF)

Dispatches on Wed, 21 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 7,508.40 / piece)

€ 7,508.40

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

No. of analogue inputs: 2

No. of analogue outputs: 2

No. of digital inputs (max.): 16

Type: LXMRL03C1000

Manufacturer part #: LXMRL03C1000

Dim: (L x W x H) 235 x 410 x 307 mm

Height: 307 mm

Length: 235 mm

Width: 410 mm

: Other

: FALSE

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3342492 Schneider Electric LXMRL03C1000 LXMRL03C1000

User & Safety Instructions

User & Safety Instructions 3342492 Schneider Electric LXMRL03C1000 LXMRL03C1000

Information

Information 3342492 Schneider Electric LXMRL03C1000 LXMRL03C1000

Repairability/durability data sheet 3342492 Schneider Electric LXMRL03C1000 LXMRL03C1000

Conformity certificate

Conformity certificate 3342492 Schneider Electric LXMRL03C1000 LXMRL03C1000

Description

Lexium Cobot is a range of collaborative robots to help workers with repetitive hand movements. This Cobot control monitors collaborative robots with a payload of 3 kg at an input voltage of 100 V to 240 V AC, 50-60 Hz. It has a high speed input for tape tracking, 16 digital inputs and outputs and 2 analog inputs and outputs. Lexium Cobot is designed to help workers complete repetitive and laborious tasks and protect their health by automating assembly lines. The protection class is IP44. It has a communication interface (RJ45 connection) for TCP/IP, Modbus TCP, Modbus RTU, PROFINET and Ethernet/IP. It is made of aluminum and steel and weighs 12 kg. It is 410 mm wide, 307 mm high and 235 mm deep. This Cobot controller is designed to be placed on the floor next to the robot arms in its working area. It is certified in accordance with GB11291.1, EN ISO10218-1, EN60204-1, EN ISO12100, EN ISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001 and CE-marked. This Cobot control monitors collaborative robots with a payload of 3 kg. It is connected to the robot via a 6 meter long cable. It is designed to stand on the floor and be placed near the robot. Collaborative robots are people's work companions and make their work easier. The collaborative robot is a step toward Industry 4.0, where the operator will work with intelligent and manipulative robots.
