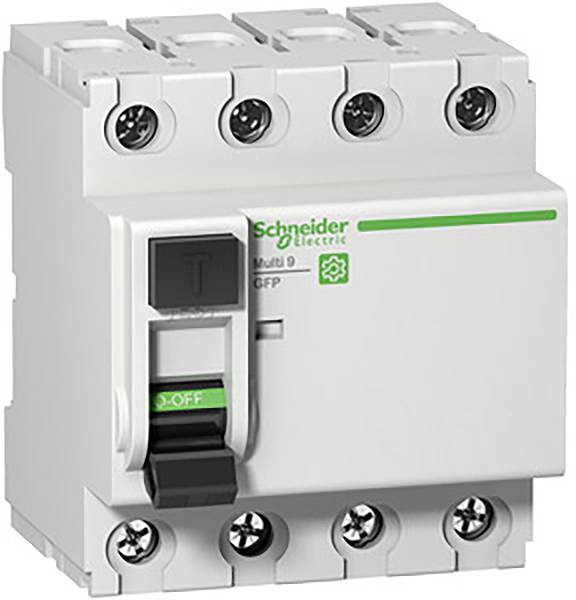

Schneider Electric M9R84440 M9R84440 RCCB A 40 A 0.3 A
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
40 A
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
14-day return policy included
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Content
1 pc(s)
DIN rail
AC
44 mm
40 A
240 V
440 V
4
0.26 A
A
TRUE
10 kA
2
4
FALSE
FALSE
50/60 Hz
IP20
TRUE
FALSE
6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2934763 Schneider Electric M9R84440 M9R84440 RCCB A 40 A 0.3 A
Datasheet 2934763 Schneider Electric M9R84440 M9R84440 RCCB A 40 A 0.3 A
User & Safety Instructions
User & Safety Instructions 2934763 Schneider Electric M9R84440 M9R84440 RCCB A 40 A 0.3 A
Information
Information 2934763 Schneider Electric M9R84440 M9R84440 RCCB A 40 A 0.3 A
Description
ID-fault current circuit Multi 9 OEM GFP, 260mA UL 1053 / 300 mA IEC/EN 61008. 4-pin, rated current 40A, type A-SI, operating voltage (Ue) 230-240V IEC/EN 61008-1 / 480Y/277V UL 1053, insulation voltage (UI) 440 V. ID ground fault circuit interrupter offers protection against electrical shock through direct and indirect contact and protection of systems in the event of an insulation fault. In addition, they have high electrical immunity to transient leakage currents and offer improved protection against ground fault. A-SI type ground terminals are Ideal suitable for wet environments or environments contaminated by aggressive substances. Technology of the tripping unit differential current. The ID fault current protection meets the following standards IEC / EN 61008-1, UL 1053.
