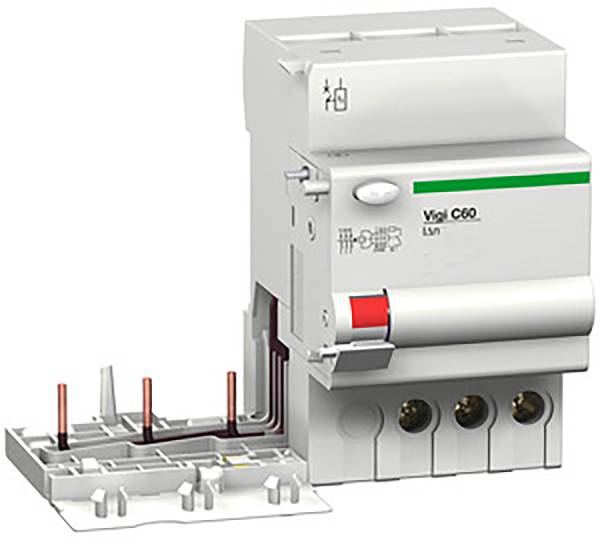

Schneider Electric M9V14363 Multi 9 OEM Vigi C60 3-pin 63A 300mA type AC for LS switch C60 Distribution board accessorie
EAN:
Part number:
Item no:
Product type
Distribution board accessories
Content
1 pc(s)
Nominal current
63 A
Rated insulation voltage Ui
500 V
Number of poles
3
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
14-day return policy included
Technical specifications
- Product type
Distribution board accessories
- Content
1 pc(s)
63 A
500 V
3
FALSE
0
AC
0.25 kA
3
50 Hz
IP20
FALSE
FALSE
FALSE
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2934978 Schneider Electric M9V14363 Multi 9 OEM Vigi C60 3-pin 63A 300mA type AC for LS switch C60 Distribution board accessorie
Datasheet 2934978 Schneider Electric M9V14363 Multi 9 OEM Vigi C60 3-pin 63A 300mA type AC for LS switch C60 Distribution board accessorie
User & Safety Instructions
User & Safety Instructions 2934978 Schneider Electric M9V14363 Multi 9 OEM Vigi C60 3-pin 63A 300mA type AC for LS switch C60 Distribution board accessorie
Information
Information 2934978 Schneider Electric M9V14363 Multi 9 OEM Vigi C60 3-pin 63A 300mA type AC for LS switch C60 Distribution board accessorie
Description
Error current circuit breaker Vigi C60 Multi 9 OEM, 300mA. 3-pin, rated current 63A, type AC, operating voltage (Ue) 400-415V, insulation voltage (UI) 500V AC. Vigi C60 residual current blocks for C60 provide protection against electric shock from direct and indirect contact and fire protection in the event of insulation failure. Technology of the tripping unit differential current. Additional accessories can also be added to the circuit breakers, which are combined with a Vigi module. Additional stackable auxiliary modules (optional) - display of switch position (OF), error triggering (SD), operating current release (MX, MX + OF), undervoltage release (MN, MNs, MNx) Tool-free assembly on the left side of the device. The Vigi C60 ground fault circuit interrupter meets the following standards IEC / EN 61009-1.
