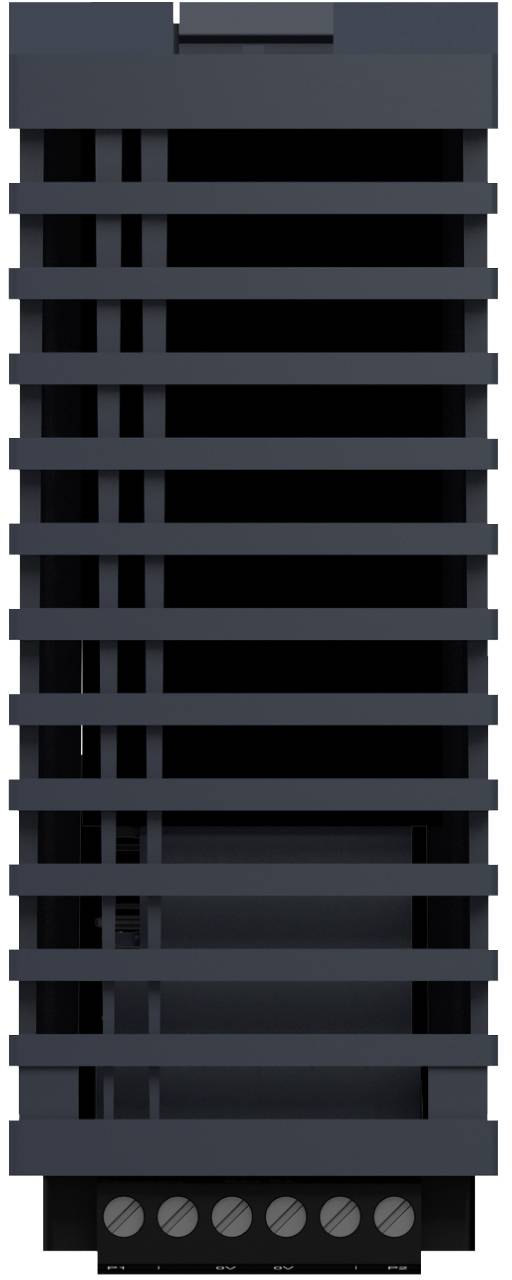

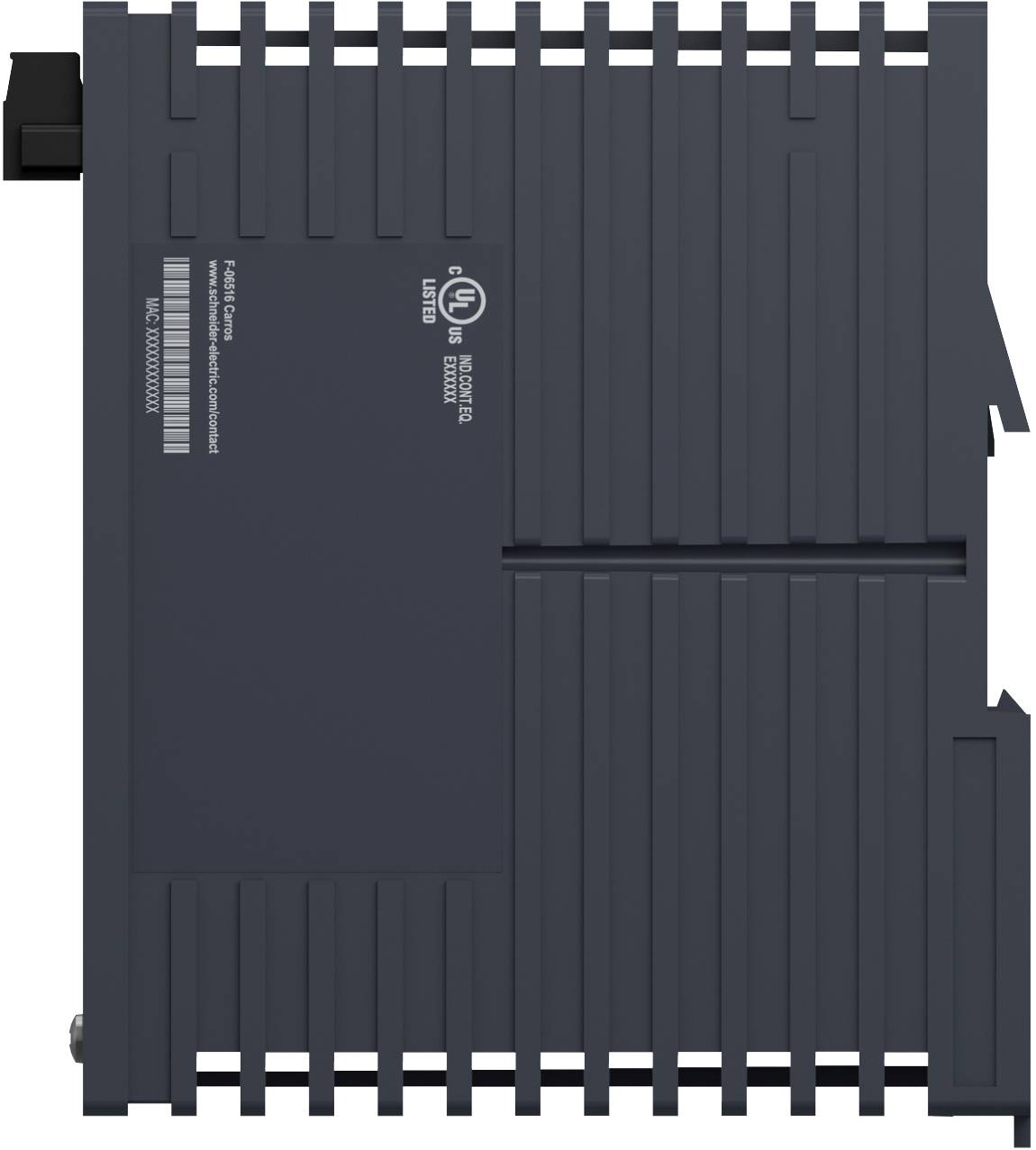

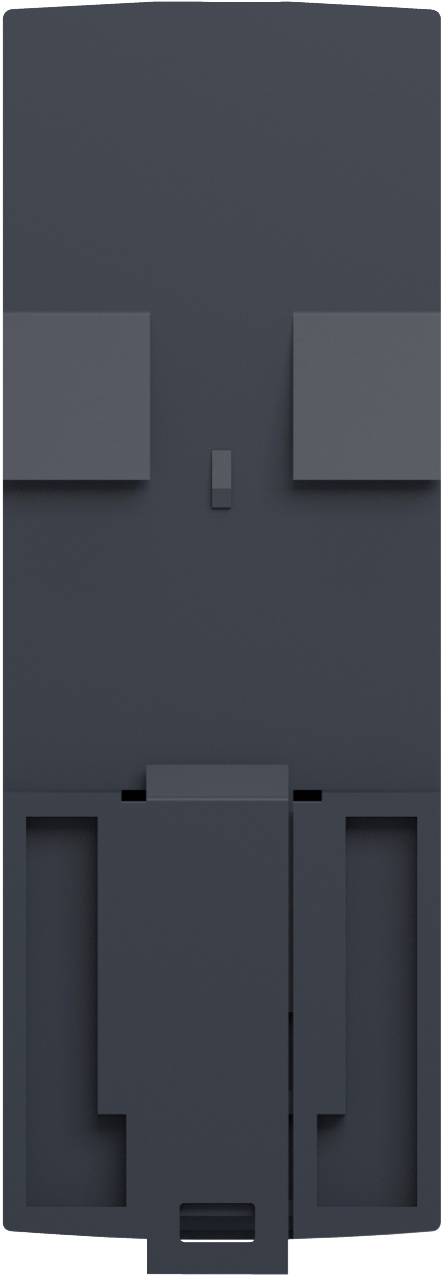

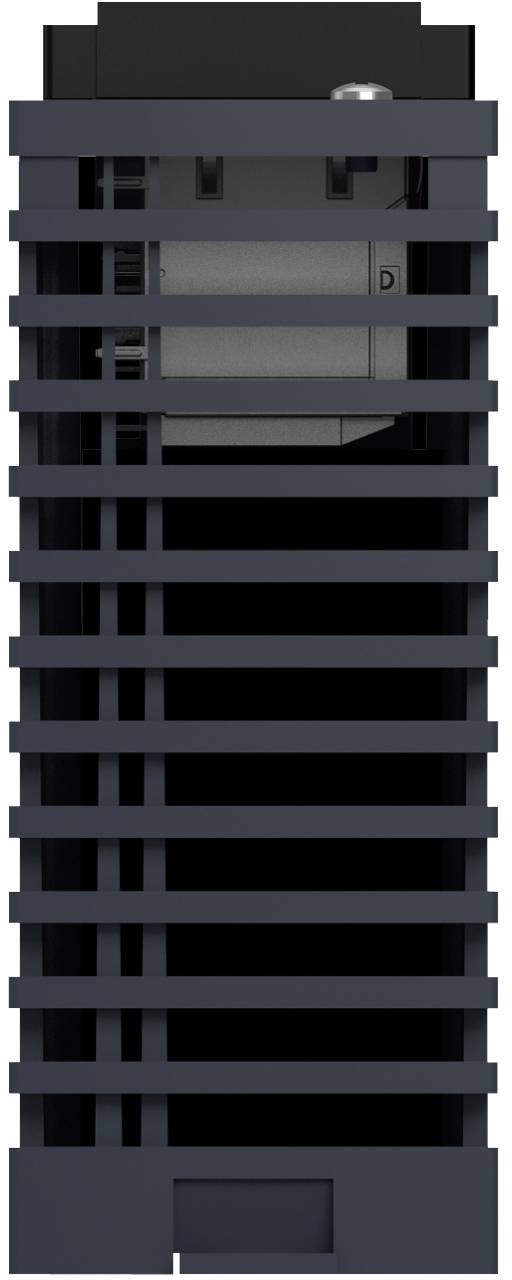

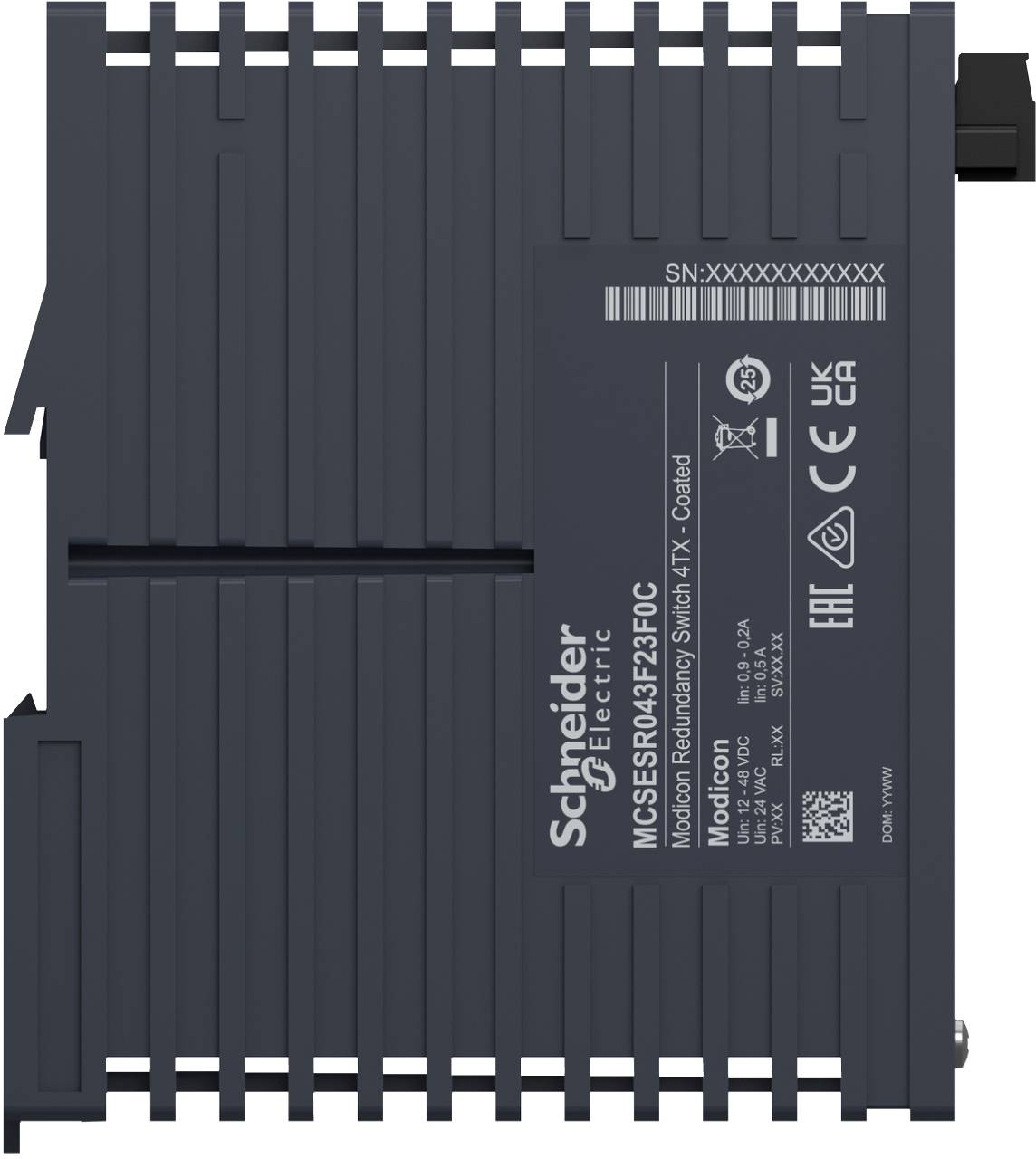

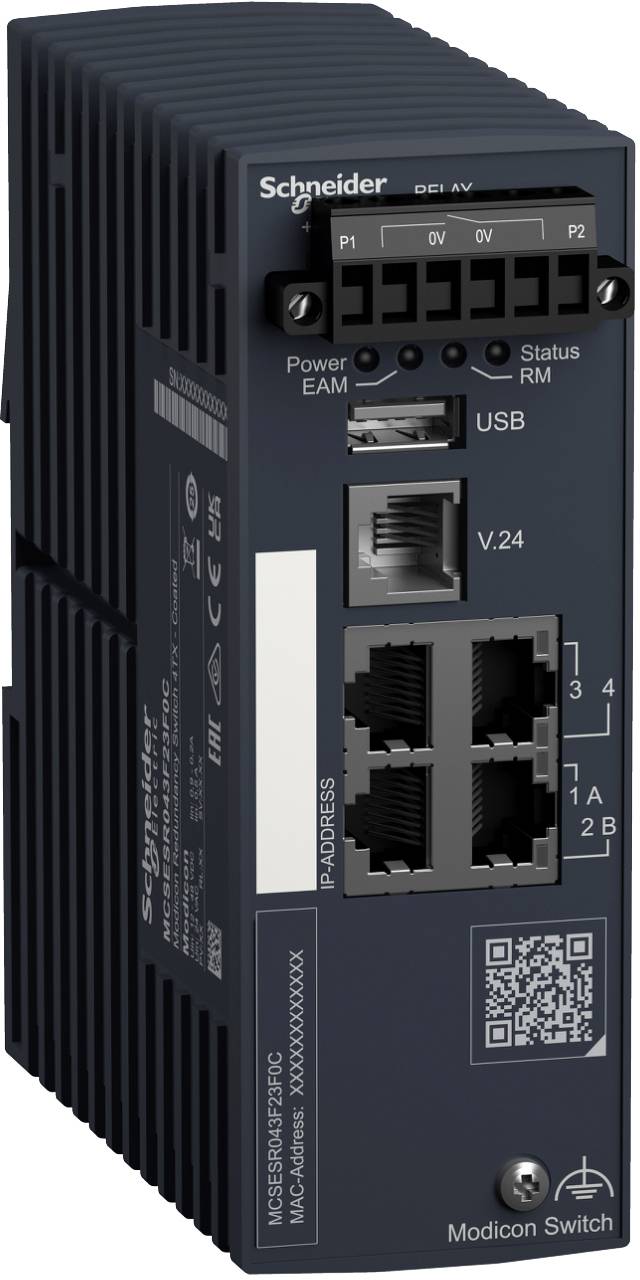

Schneider Electric MCSESR043F23F0C MCSESR043F23F0C Managed network switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,777.31 / piece)
€ 1,777.31
plus VAT.
14 days return policy included
Technical specifications
- Number of 10 Gbps Mini GBIC ports: 0
- Number of 10 Gbps RJ45 ports: 0
- Number of 10/100 Mbps M12 ports: 0
- Number of 10/100 Mbps RJ45 ports: 4
- Number of 10/100/1000 Mbps RJ45 ports: 0
- Number of 100 Gbps Mini GBIC ports: 0
- Number of 100 Mbps POF ports: 0
- Number of 100 Mbps SC ports: 0
- Number of 100 Mbps ST ports: 0
- Number of 100/1000 Mbps Mini GBIC ports: 0
- Number of 1000 Mbps GBIC ports: 0
- Number of 1000 Mbps Mini GBIC ports: 0
- Number of 1000 Mbps POF ports: 0
- Number of 1000 Mbps RJ45 ports: 0
- Number of 1000 Mbps SC ports (LX): 0
- Number of 1000 Mbps SC ports (SX): 0
- Number of 40 Gbps Mini GBIC ports: 0
- Number of RJ45/Mini GBIC combo ports: 0
- Number of max. stackable switches: 1
- Number of module slots: 0
- Number of PoE ports: 0
- Number of other ports: 0
- Ethernet: yes
- Compatible with Grade2TV according to XP-C 90-483: No.
- Compatible with Grade3TV according to XP-C 90-483: No.
- Layer 2: Yes
- Layer 3: No.
- Manageable: Yes
- Power over Ethernet (PoE): No
- Redundant power supply: Yes
- Product type
Managed network switch
- Width
46 mm
- Height
130 mm
- Depth
105 mm
- Type
MCSESR043F23F0C
IP20
- Mounting type
DIN rail
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755369 Schneider Electric MCSESR043F23F0C MCSESR043F23F0C Managed network switch
User & Safety Instructions
User & Safety Instructions 3755369 Schneider Electric MCSESR043F23F0C MCSESR043F23F0C Managed network switch
Description
This product is part of the Modicon Switch range, a Modicon Extended Managed Switch offering. This managed switch comes with Ethernet TCP/IP protocol. It possesses 4 copper cable-transfer connections. It provides simple and complex connectivity for multiple Ethernet devices, network management, improved cyber security, and advanced switching capabilities. This product has a power consumption of 7 W and a nominal voltage of 12 to 24 V DC or 24 V AC. It has a detachable 6-pin power supply plug. It has shielded ports suitable for medium-sized isolated networks or systems with medium network traffic and medium-complexity networks. It is CE, UL, RCM certified and complies with UL 61010 and EN / IEC 61131 standards. It is intended for mounting on a symmetrical 35mm DIN rail. It has a low power consumption and a compact base area. In addition, it offers simple connectivity for several Ethernet devices. The Modicon Networking series provides you with an intelligent and flexible way to integrate Ethernet solutions into your business, from the device level to the control network to your corporate network.
