Buy Schneider Electric METSECT5CC025 METSECT5CC025 Single phase current transformer Primary current 250 A Secondary current

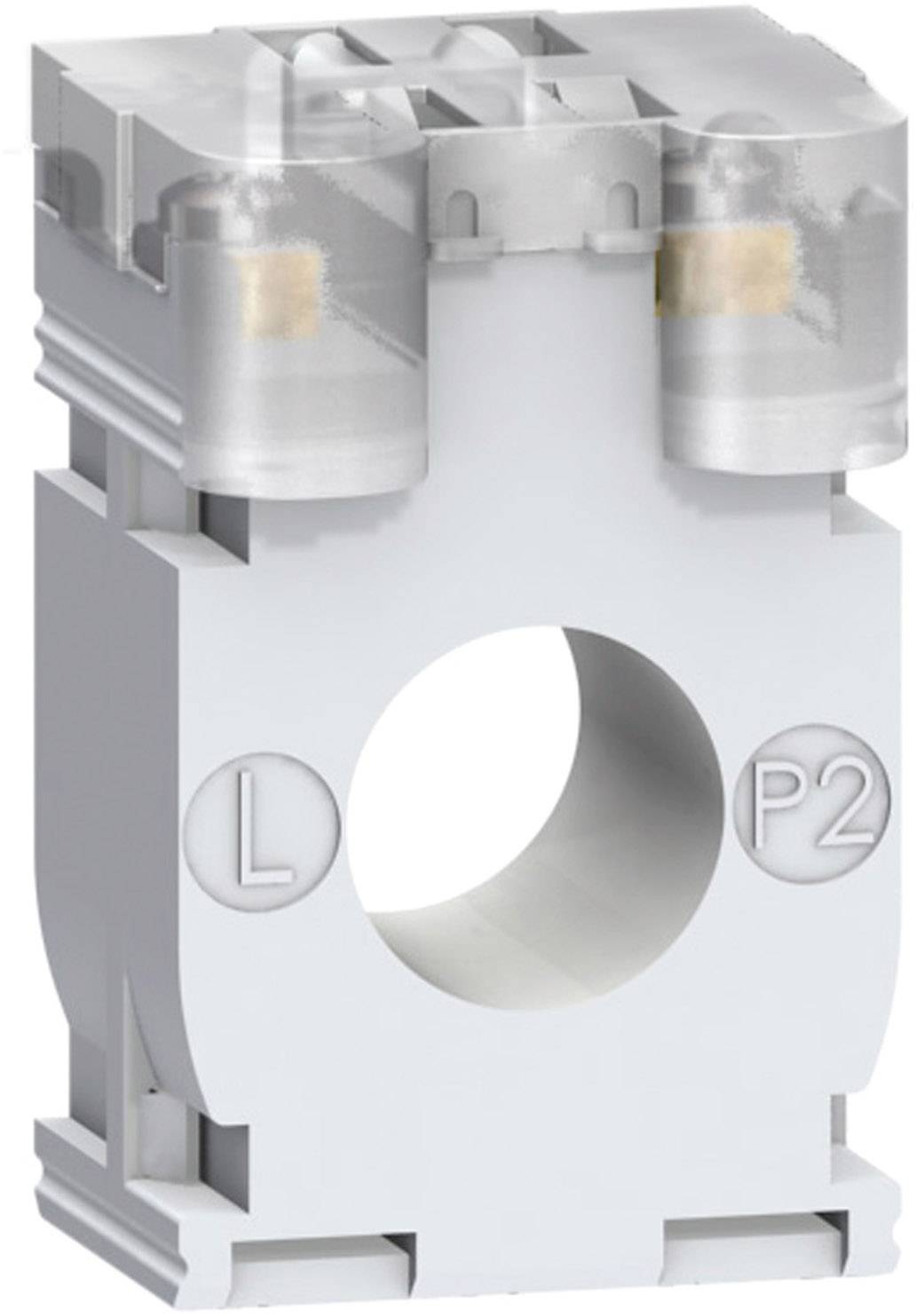

A grey current transformer with a hole in the middle, marked with 'L' and 'P2' on the front, for electrical measurement.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cutter METSECT 5CC025 Converter TI 250/5

Line feed-through diameter 21 mm

Technical specifications

Product type: Single phase current transformer

Primary current: 250 A

Secondary current: 5 A

: 5 VA
6 VA
7 VA

Line feed-through diameter: 21 mm

Accuracy class: 0.5 | |1| |3

Type: METSECT5CC025

Dim: (L x W x H) 30 x 44 x 65 mm

Weight: 0.175 kg

Factory colour: Grey

Width: 44 mm

Height: 65 mm

Length: 30 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Primary current

Power

Schneider Electric METSECT5CC025 METSECT5CC025 Single phase current transformer Primary current 250 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863999

This article

250 A

5 VA6 VA7 VA

Schneider Electric METSECT5CC010 METSECT5CC010 Single phase current transformer Primary current 100 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863555

100 A

2 VA2.5 VA3.5 VA

Schneider Electric METSECT5CC008 METSECT5CC008 Single phase current transformer Primary current 75 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863557

75 A

1.5 VA2.5 VA

Schneider Electric METSECT5CC020 METSECT5CC020 Single phase current transformer Primary current 200 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863558

200 A

4 VA5.5 VA6 VA

Schneider Electric METSECT5DA100 METSECT5DA100 Single phase current transformer Primary current 1000 A Secondary current 5 A 1 pc(s)

Item no:1863695

1000 A

15 VA20 VA

Schneider Electric METSECT5CC013 METSECT5CC013 Single phase current transformer Primary current 125 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863696

125 A

2.5 VA3.5 VA4 VA

Schneider Electric METSECT5DB125 METSECT5DB125 Single phase current transformer Primary current 1250 A Secondary current 5 A 1 pc(s)

Item no:1863697

1250 A

8 VA12 VA

Schneider Electric METSECT5DA125 METSECT5DA125 Single phase current transformer Primary current 1250 A Secondary current 5 A 1 pc(s)

Item no:1863698

1250 A

15 VA20 VA

Schneider Electric METSECT5CC015 METSECT5CC015 Single phase current transformer Primary current 150 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863700

150 A

3 VA4 VA5 VA

Schneider Electric METSECT5DB150 METSECT5DB150 Single phase current transformer Primary current 1500 A Secondary current 5 A 1 pc(s)

Item no:1863701

1500 A

10 VA15 VA

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1863999 Schneider Electric METSECT5CC025 METSECT5CC025 Single phase current transformer Primary current 250 A Secondary current

Description

Converter TI 250/5TR CABLE D 21. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 1 Maximum Performance: 6 VA, Class 0.5 Maximum Performance: 5 VA, Class 3 Maximum Capacity: 7 VA-rated operational current Ie: 250 A.
