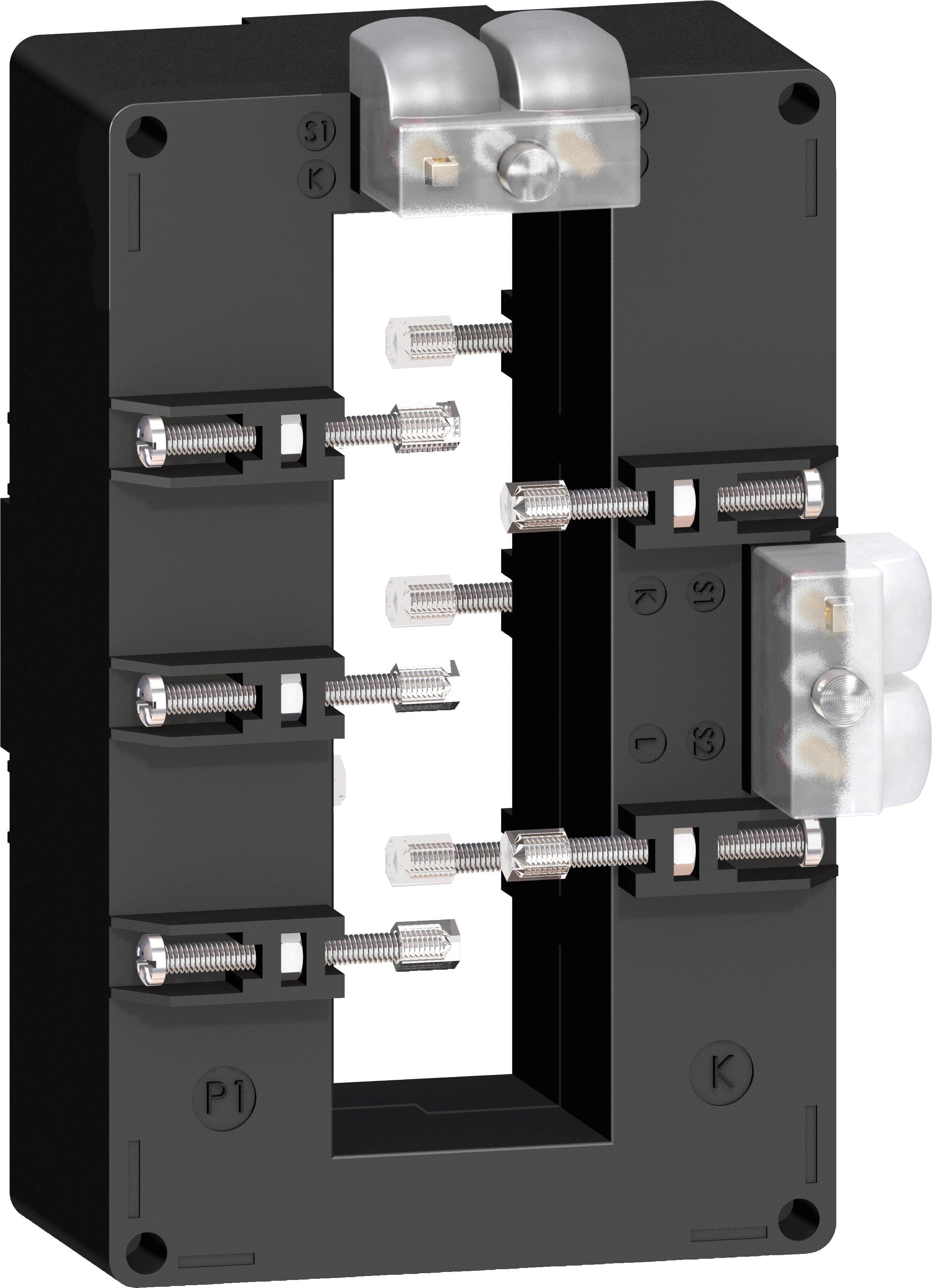

Schneider Electric METSECT5DB100 METSECT5DB100 Single phase current transformer Primary current 1000 A Secondary current
EAN:
Part number:
Item no:
Technical specifications
- Product type
Single phase current transformer
- Primary current
1000 A
- Secondary current
5 A
6 VA
10 VA
- Accuracy class
0.5 || 1
- Type
METSECT5DB100
- Dim
(L x W x H) 58 x 38 x 127 mm
- Weight
0.682 kg
- Factory colour
Black
- Width
38 mm
- Height
127 mm
- Length
58 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863986 Schneider Electric METSECT5DB100 METSECT5DB100 Single phase current transformer Primary current 1000 A Secondary current
Description
Converter TI 1000/5FL. BUSBAR 38 x 127. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 1 Maximum Power: 10 VA, Class 0.5 Maximum Performance: 6 VA-rated operational current Ie: 1000A.
