Buy Schneider Electric METSECT5DH125 METSECT5DH125 Single phase current transformer Primary current 1250 A Secondary current

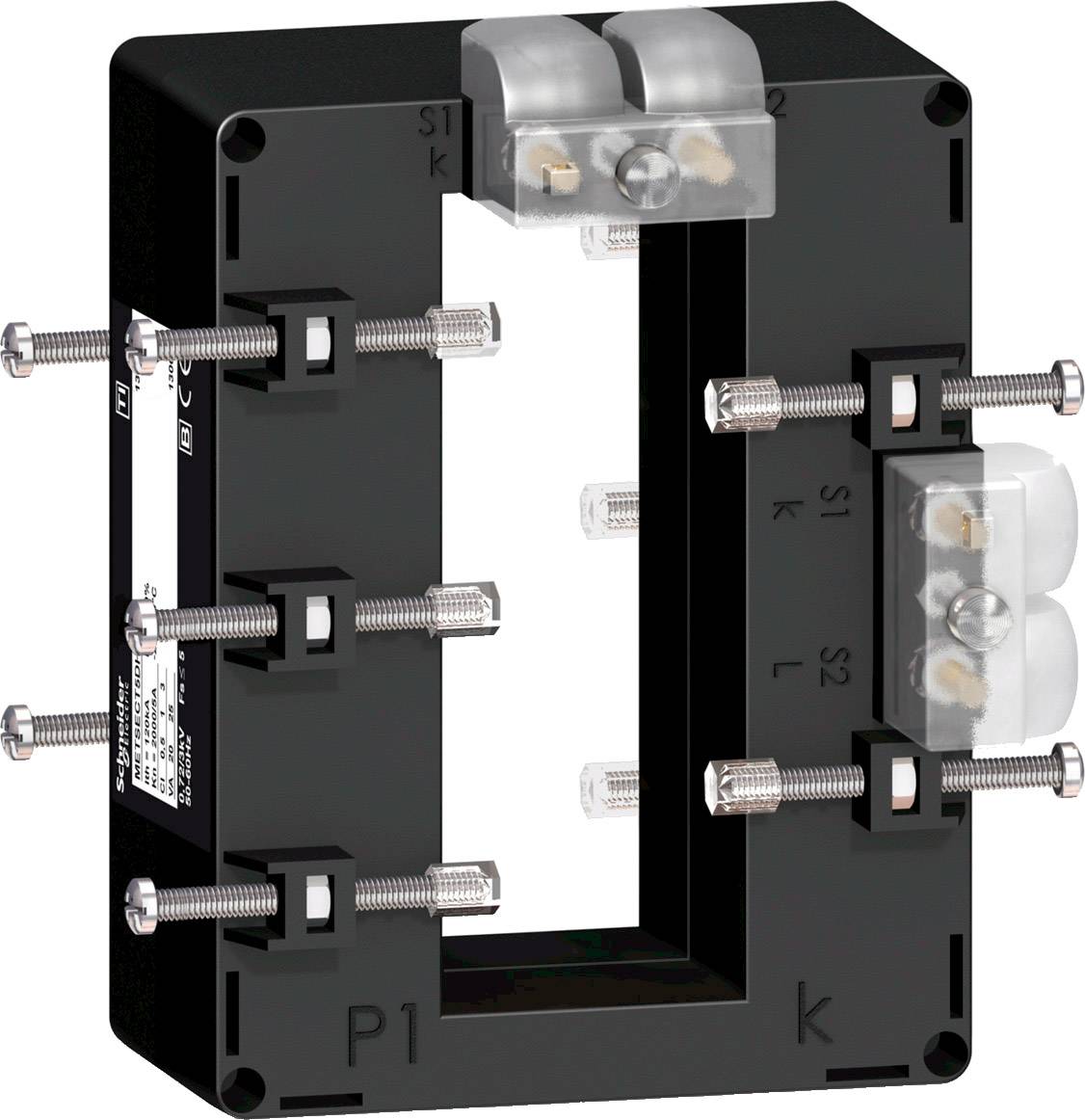

A rectangular current transformer frame with multiple screws and connections on the sides.<br><br>Note: The translation appears to already be very close to British English, so minimal changes were needed.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cutter METSECT 5DH125 Converter TI

Input current (current) 1250 A
Output current 5 A

Technical specifications

Product type: Single phase current transformer

Primary current: 1250 A

Secondary current: 5 A

: 12 VA
15 VA

Accuracy class: 0.5 || 1

Type: METSECT5DH125

Dim: (L x W x H) 40 x 98 x 129 mm

Weight: 0.548 kg

Output current: 5 A

Input current: 1250 A

Factory colour: Black

Line feed-through (W): 102 mm

Line feed-through (H x W): 38 x 102 mm

Line feed-through (H): 38 mm

Width: 98 mm

Height: 129 mm

Length: 40 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Primary current

Power

Schneider Electric METSECT5CC010 METSECT5CC010 Single phase current transformer Primary current 100 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863555

100 A

2 VA2.5 VA3.5 VA

Schneider Electric METSECT5CC008 METSECT5CC008 Single phase current transformer Primary current 75 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863557

75 A

1.5 VA2.5 VA

Schneider Electric METSECT5CC020 METSECT5CC020 Single phase current transformer Primary current 200 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863558

200 A

4 VA5.5 VA6 VA

Schneider Electric METSECT5DA100 METSECT5DA100 Single phase current transformer Primary current 1000 A Secondary current 5 A Line feed-through (H x W):65 x 32 mm 1 pc(s)

Item no:1863695

1000 A

15 VA20 VA

Schneider Electric METSECT5CC013 METSECT5CC013 Single phase current transformer Primary current 125 A Secondary current 5 A Line feed-through (H x W):21 x 21 mm Line feed-through diameter:21 mm 1 pc(s)

Item no:1863696

125 A

2.5 VA3.5 VA4 VA

Schneider Electric METSECT5DB125 METSECT5DB125 Single phase current transformer Primary current 1250 A Secondary current 5 A Line feed-through (H x W):127 x 38 mm 1 pc(s)

Item no:1863697

1250 A

8 VA12 VA

Schneider Electric METSECT5DA125 METSECT5DA125 Single phase current transformer Primary current 1250 A Secondary current 5 A 1 pc(s)

Item no:1863698

1250 A

15 VA20 VA

Schneider Electric METSECT5CC015 METSECT5CC015 Single phase current transformer Primary current 150 A Secondary current 5 A Line feed-through diameter:21 mm 1 pc(s)

Item no:1863700

150 A

3 VA4 VA5 VA

Schneider Electric METSECT5DB150 METSECT5DB150 Single phase current transformer Primary current 1500 A Secondary current 5 A Line feed-through (H x W):38 x 127 mm 1 pc(s)

Item no:1863701

1500 A

10 VA15 VA

Schneider Electric METSECT5DA150 METSECT5DA150 Single phase current transformer Primary current 1500 A Secondary current 5 A Line feed-through (H x W):32 x 65 mm 1 pc(s)

Item no:1863702

1500 A

20 VA25 VA

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1863988 Schneider Electric METSECT5DH125 METSECT5DH125 Single phase current transformer Primary current 1250 A Secondary current

Description

Converter TI 1250/5 FL. BUSBAR 38 x 102. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 1 Maximum power: 15VA, Class 0.5 Maximum power: 12VA-rated operational current Ie: 1250 A.
