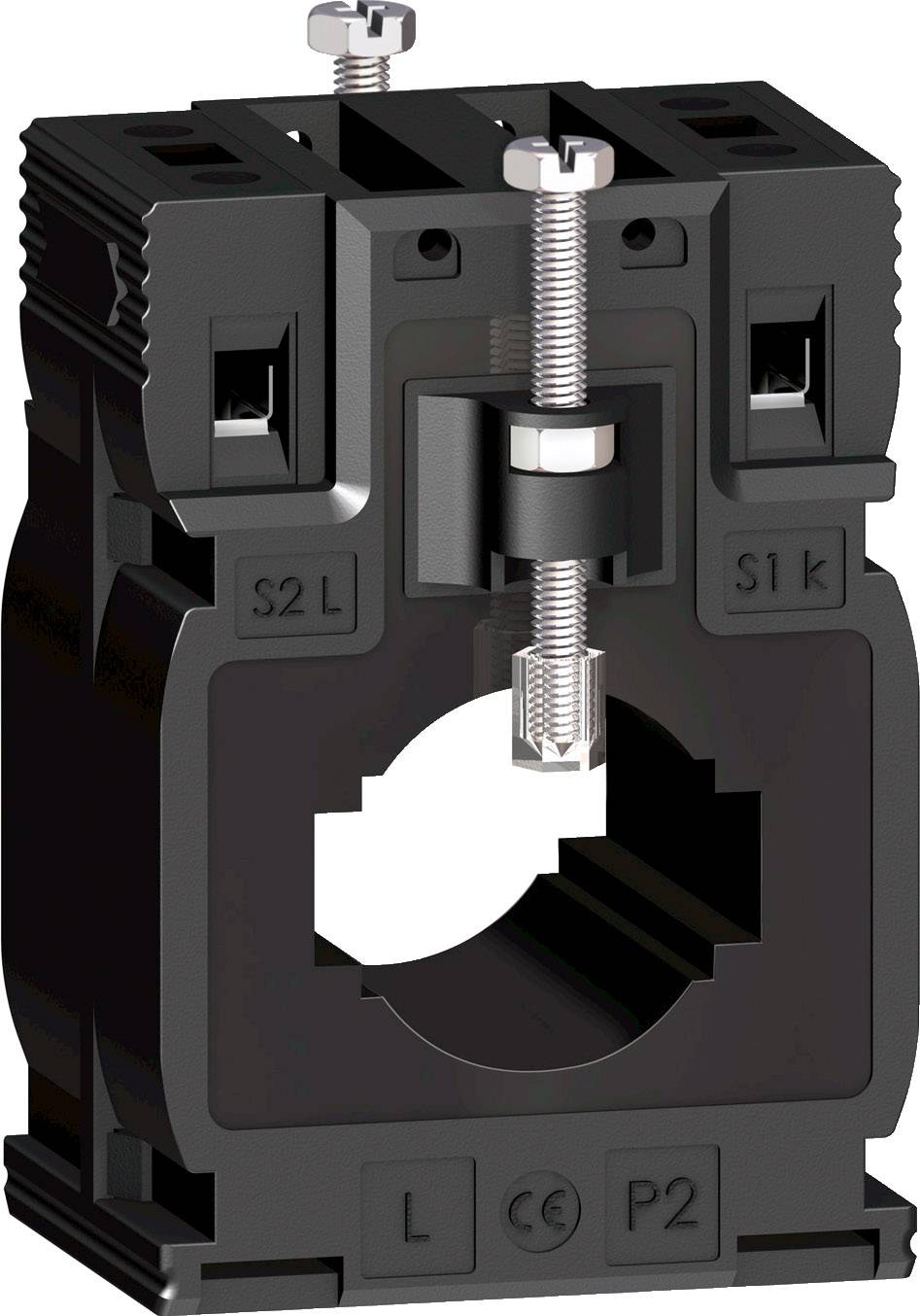

Schneider Electric METSECT5MA030 METSECT5MA030 Single phase current transformer Primary current 300 A Secondary current
EAN:
Part number:
Item no:
Highlights & Details
Cutter METSECT 5MA030 Converter TI 300/5
- Line feed-through diameter 27 mm
Technical specifications
- Product type
Single phase current transformer
- Primary current
300 A
- Secondary current
5 A
8 VA
10 VA
- Line feed-through diameter
27 mm
- Accuracy class
0.5 || 1
- Type
METSECT5MA030
- Dim
(L x W x H) 43 x 56 x 80 mm
- Weight
0.303 kg
- Factory colour
Black
- Width
56 mm
- Height
80 mm
- Length
43 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1864004 Schneider Electric METSECT5MA030 METSECT5MA030 Single phase current transformer Primary current 300 A Secondary current
Description
Converter TI 300/5 TR CABLE D27+10 x 32 15 x 25. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 1 Maximum Power: 10 VA, Class 0.5 Maximum Performance: 8 VA rated operational current Ie: 300 A.
