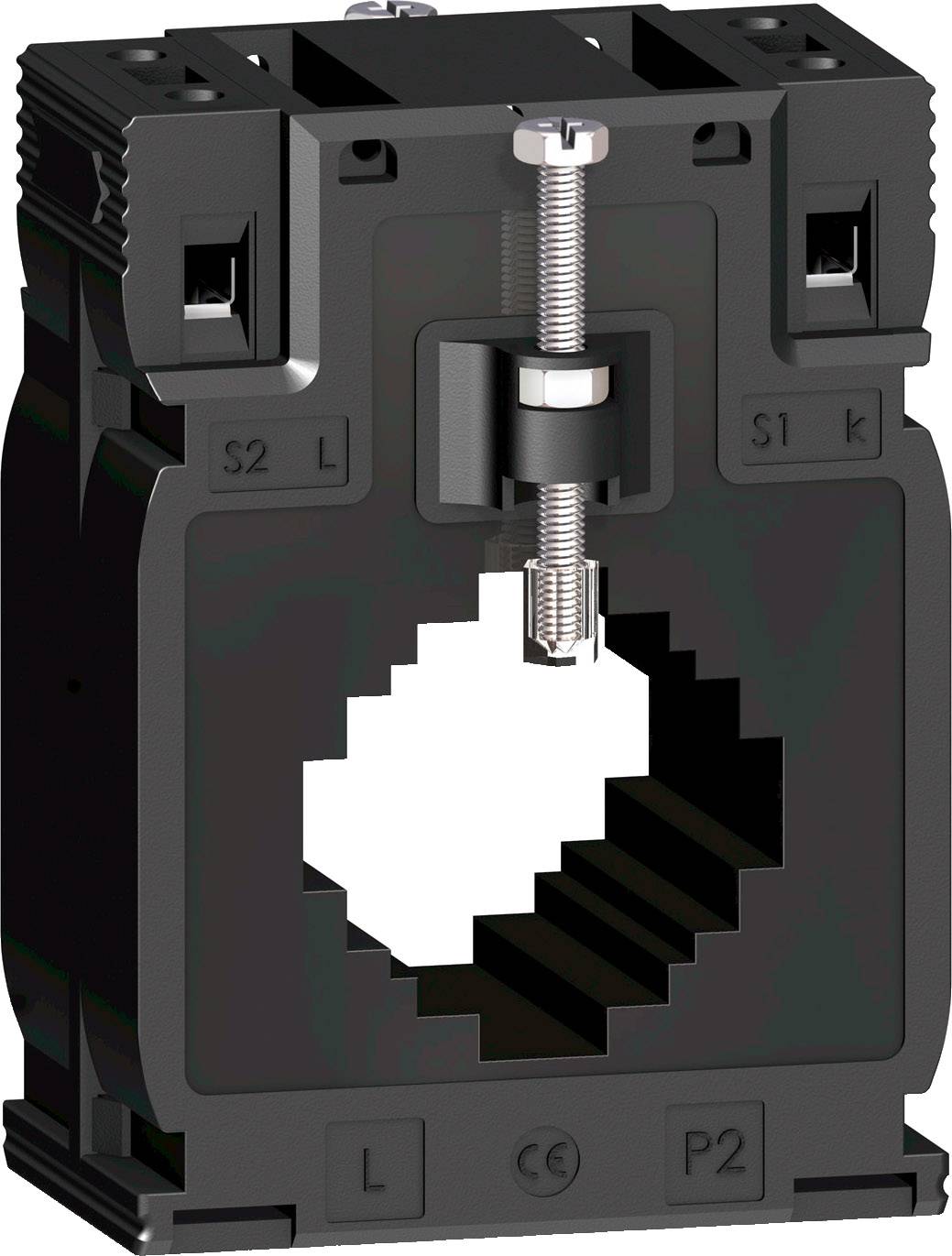

Schneider Electric METSECT5MC025 METSECT5MC025 Single phase current transformer Primary current 250 A Secondary current
EAN:
Part number:
Item no:
Highlights & Details
Cutter METSECT 5MC025 Converter TI 250/5
- Line feed-through diameter 32 mm
Technical specifications
- Product type
Single phase current transformer
- Primary current
250 A
- Secondary current
5 A
3 VA
5 VA
- Line feed-through diameter
32 mm
- Accuracy class
0.5 || 1
- Type
METSECT5MC025
- Dim
(L x W x H) 45 x 70 x 95 mm
- Weight
0.375 kg
- Factory colour
Black
- Width
70 mm
- Height
95 mm
- Length
45 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863998 Schneider Electric METSECT5MC025 METSECT5MC025 Single phase current transformer Primary current 250 A Secondary current
Description
Converter TI 250/5FL. BUS BAR 10 x 40 20 x 32 25 x 25. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 0.5 Maximum Power 3 VA, Class 1 Maximum Performance: 5 VA-rated operational current Ie: 250 A.
