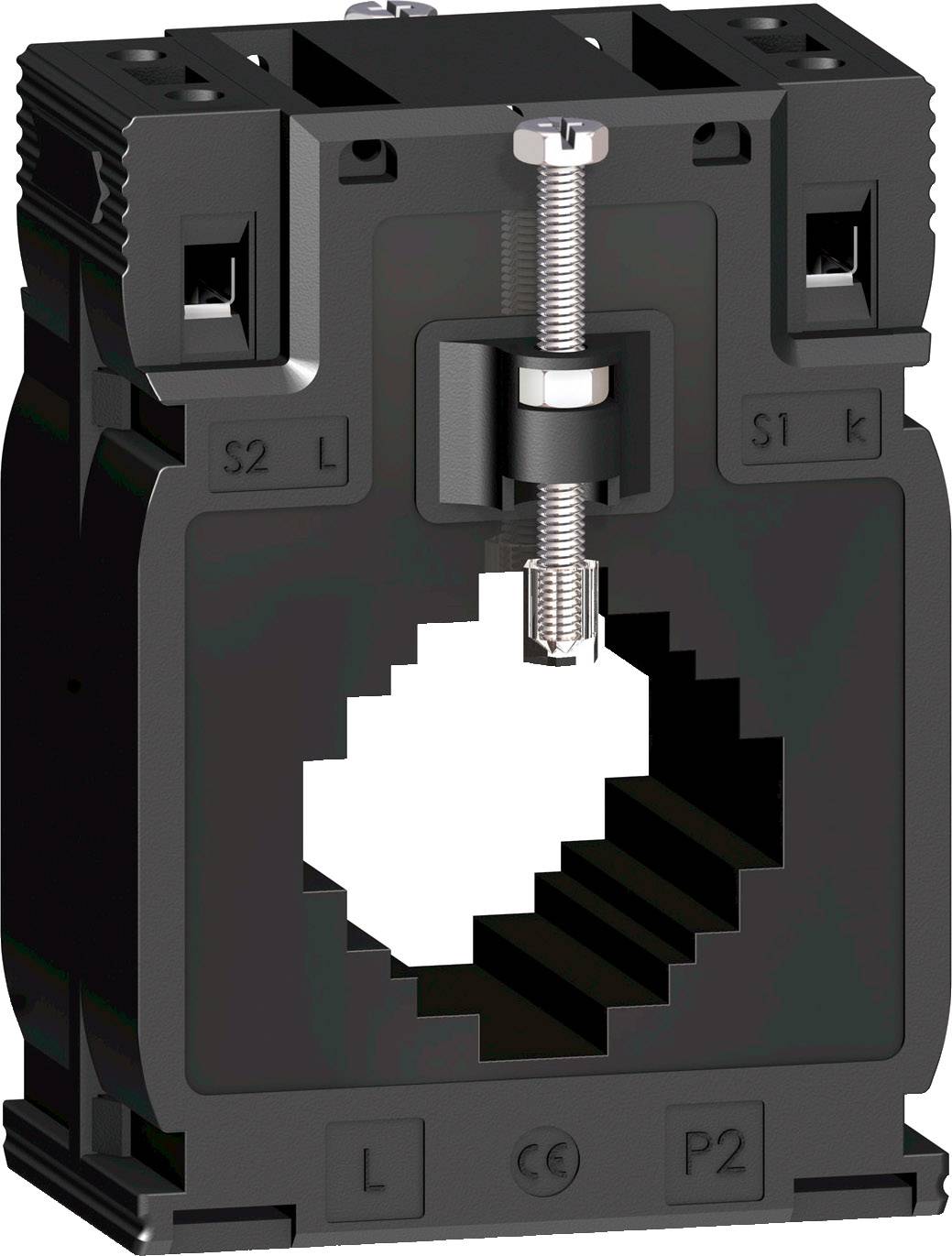

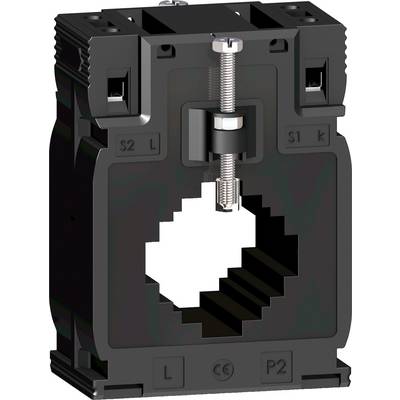

Schneider Electric METSECT5MC030 METSECT5MC030 Single phase current transformer Primary current 300 A Secondary current
EAN:
Part number:
Item no:
Highlights & Details
Cutter METSECT 5MC030 Converter TI 300/5
- Line feed-through diameter 32 mm
Technical specifications
- Product type
Single phase current transformer
- Primary current
300 A
- Secondary current
5 A
5 VA
8 VA
- Line feed-through diameter
32 mm
- Accuracy class
0.5 || 1
- Type
METSECT5MC030
- Dim
(L x W x H) 45 x 70 x 95 mm
- Weight
0.389 kg
- Factory colour
Black
- Width
70 mm
- Height
95 mm
- Length
45 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1864002 Schneider Electric METSECT5MC030 METSECT5MC030 Single phase current transformer Primary current 300 A Secondary current
Description
Converter TI 300/5 FL. BUS BAR 10 x 40 20 x 32 25 x 25. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 1 Maximum Capacity: 8 VA, Class 0.5 Maximum Performance: 5 VA-rated operational current Ie: 300 A.
