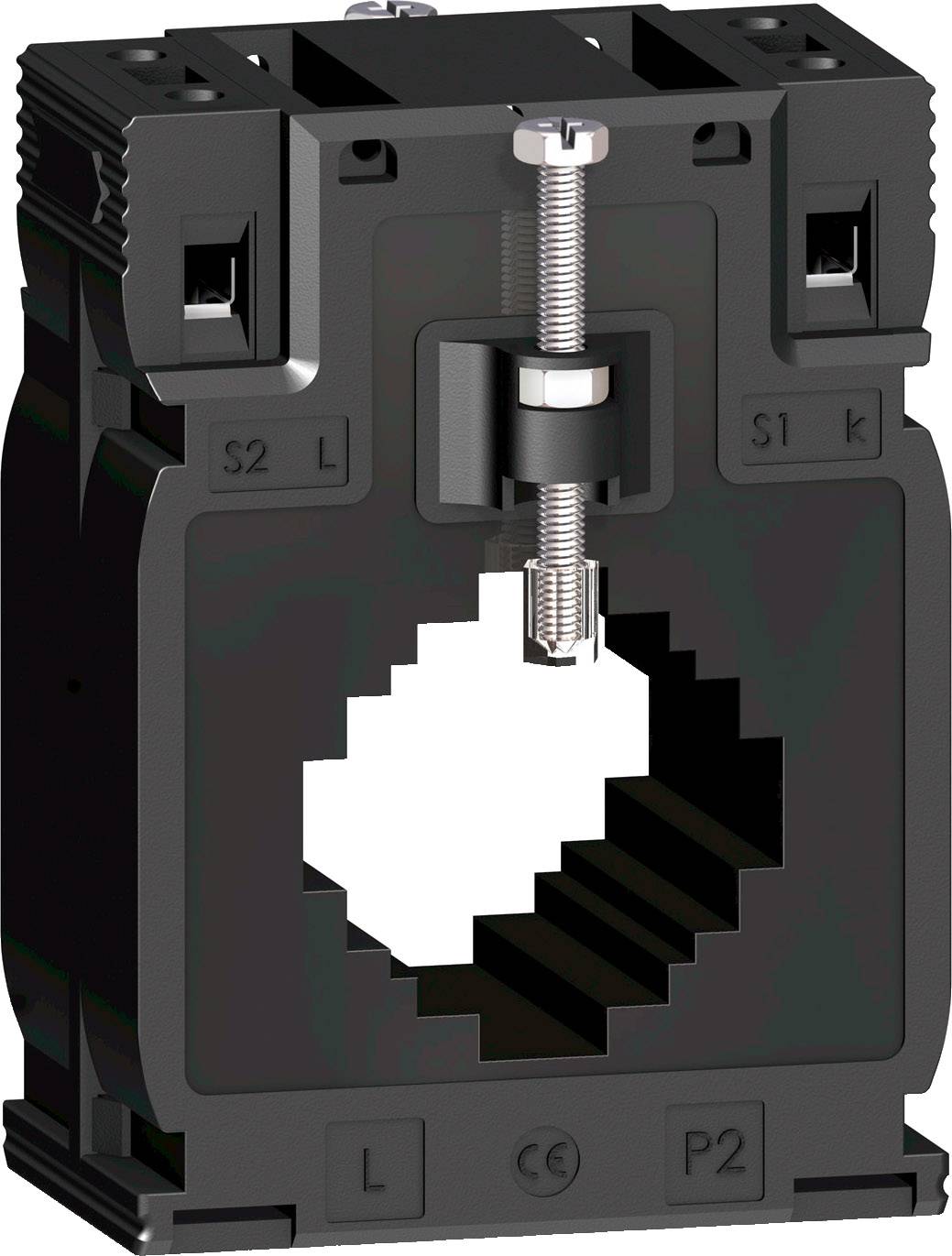

Schneider Electric METSECT5MC040 METSECT5MC040 Single phase current transformer Primary current 400 A Secondary current
EAN:
Part number:
Item no:
Highlights & Details
Cutter METSECT 5MC040 Converter TI 400/5
- Line feed-through diameter 32 mm
Technical specifications
- Product type
Single phase current transformer
- Primary current
400 A
- Secondary current
5 A
8 VA
10 VA
- Line feed-through diameter
32 mm
- Accuracy class
0.5 || 1
- Type
METSECT5MC040
- Dim
(L x W x H) 45 x 70 x 95 mm
- Weight
0.404 kg
- Factory colour
Black
- Width
70 mm
- Height
95 mm
- Length
45 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1864005 Schneider Electric METSECT5MC040 METSECT5MC040 Single phase current transformer Primary current 400 A Secondary current
Description
Converter TI 400/5FL. BUS BAR 10 x 40 20 x 32 25 x 25. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 1 Maximum Power: 10 VA, Class 0.5 Maximum Performance: 8 VA rated operational current Ie: 400 A.
