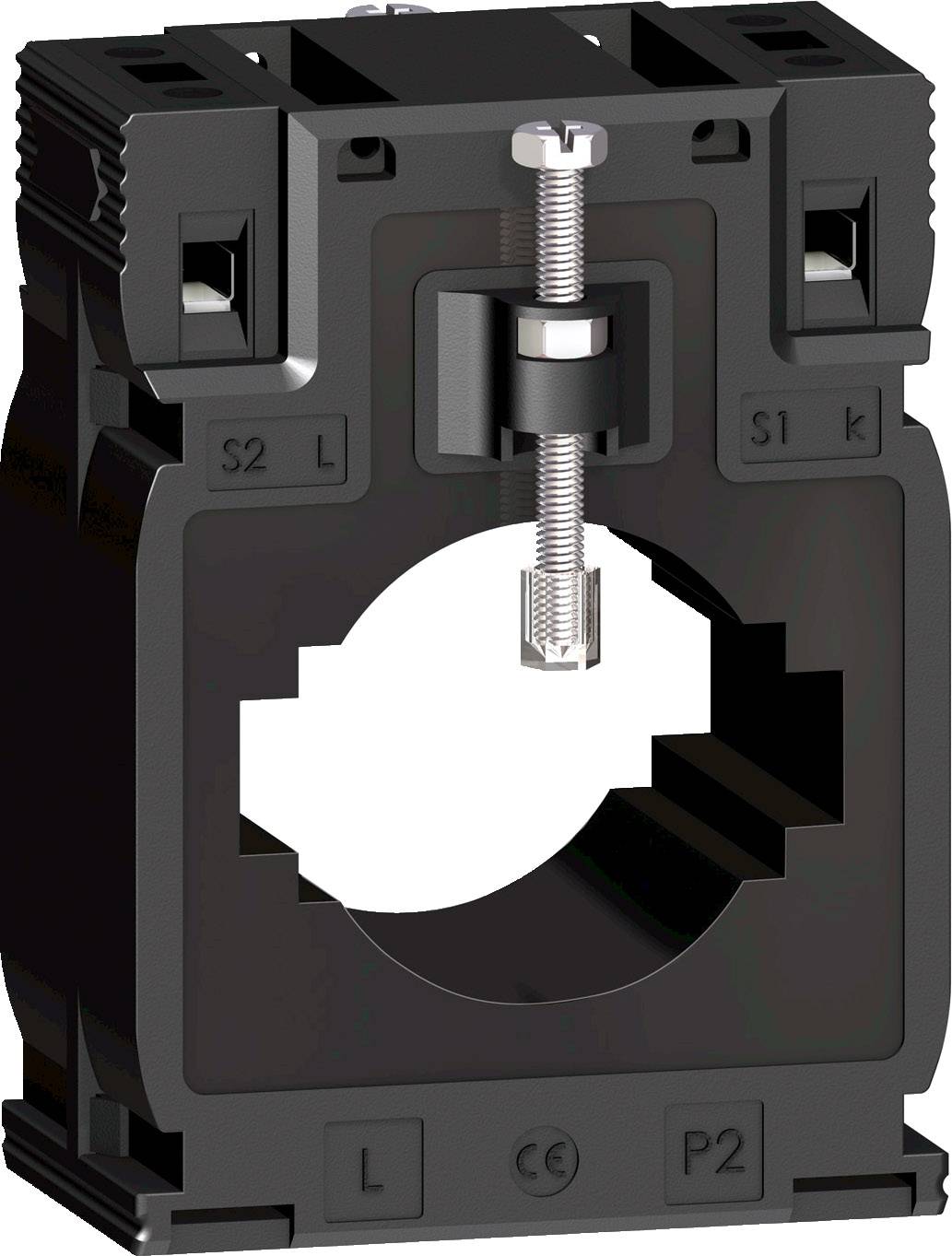

Schneider Electric METSECT5MD050 METSECT5MD050 Single phase current transformer Primary current 500 A Secondary current
EAN:
Part number:
Item no:
Highlights & Details
Cutter METSECT5 MD050 Converter TI 150/5
- Line feed-through diameter 40 mm
Technical specifications
- Product type
Single phase current transformer
- Primary current
500 A
- Secondary current
5 A
4 VA
6 VA
- Line feed-through diameter
40 mm
- Accuracy class
0.5 || 1
- Type
METSECT5MD050
- Dim
(L x W x H) 45 x 70 x 95 mm
- Weight
0.329 kg
- Factory colour
Black
- Width
70 mm
- Height
95 mm
- Length
45 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863991 Schneider Electric METSECT5MD050 METSECT5MD050 Single phase current transformer Primary current 500 A Secondary current
Description
Converter TI 150/5TR CABLE D 40 + 12 x 50 20 x 40. Series: Power Logic Product Name: CT product or component type: transformer secondary current: 5 A accuracy class: Class 1 Maximum Performance: 6 VA, Class 0.5 Maximum Performance: 4 VA-rated operational current Ie: 500 A.
This text is machine translated.
