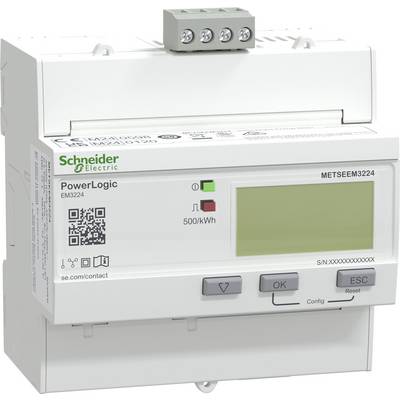

Schneider Electric METSEEM3224 METSEEM3224 Energy logger Digital 63 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Energy logger
Current load
63 A
Display
Digital
Operating voltage
173-480 V
Dim
(L x W x H) 69 x 90 x 95 mm
Datasheet (PDF)
Number
Total (€ 172.26 / piece)
€ 172.26
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Product type
Energy logger
- Current load
63 A
- Display
Digital
- Operating voltage
173-480 V
- Dim
(L x W x H) 69 x 90 x 95 mm
- Weight
0.5457 kg
- Display
Digital
- MID-approved
Yes
- Reading type
Active energy
- Nominal voltage range
100 up to 480 V AC
- Mains voltage (max.)
480 V AC
- Mains voltage (min.)
100 V AC
- Width
90 mm
- Height
95 mm
- Length
69 mm
- Current (max.)
63 A
- Current range
63 A (max)
- Type
METSEEM3224
- Interfaces
Modbus RTU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3728741 Schneider Electric METSEEM3224 METSEEM3224 Energy logger Digital 63 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3728741 Schneider Electric METSEEM3224 METSEEM3224 Energy logger Digital 63 A MID-approved: Yes 1 pc(s)
Conformity certificate
Conformity certificate 3728741 Schneider Electric METSEEM3224 METSEEM3224 Energy logger Digital 63 A MID-approved: Yes 1 pc(s)
Conformity certificate 3728741 Schneider Electric METSEEM3224 METSEEM3224 Energy logger Digital 63 A MID-approved: Yes 1 pc(s)
Description
The PowerLogic EM3000 series includes a series of three-phase, DIN-rail mounted energy counters with backlit LCD display. Measurement of active energy and effective power. The supply voltage can be between 100 and 277 VAC in 50 Hz or 60 Hz networks, or between 173 and 480 VAC. The rated current of the cable for this meter is up to 63 A. The meter provides the following accuracy, active energy class 1 according to IEC62053-21, IEC61557-12 and class B according to EN50470-3. The communication protocol is Modbus RTU. This meter can be used for partial billing and partial counting applications. Product dimensions are as follows: Width 90 mm, depth 69 mm, height 95 mm and product weight 451 g. Additional local signaling includes a green LED indicator, flashing yellow LED for accuracy testing and communication indicators. Certifications include CE, UL and MID. The meter can be installed in single-phase and neutral (1P+N), three-phase (3P) and three-phase neutral (3P+N) networks. Compatible with energy management software to take advantage of IoT digital power distribution.
