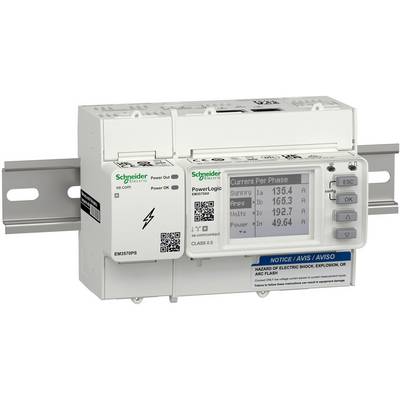

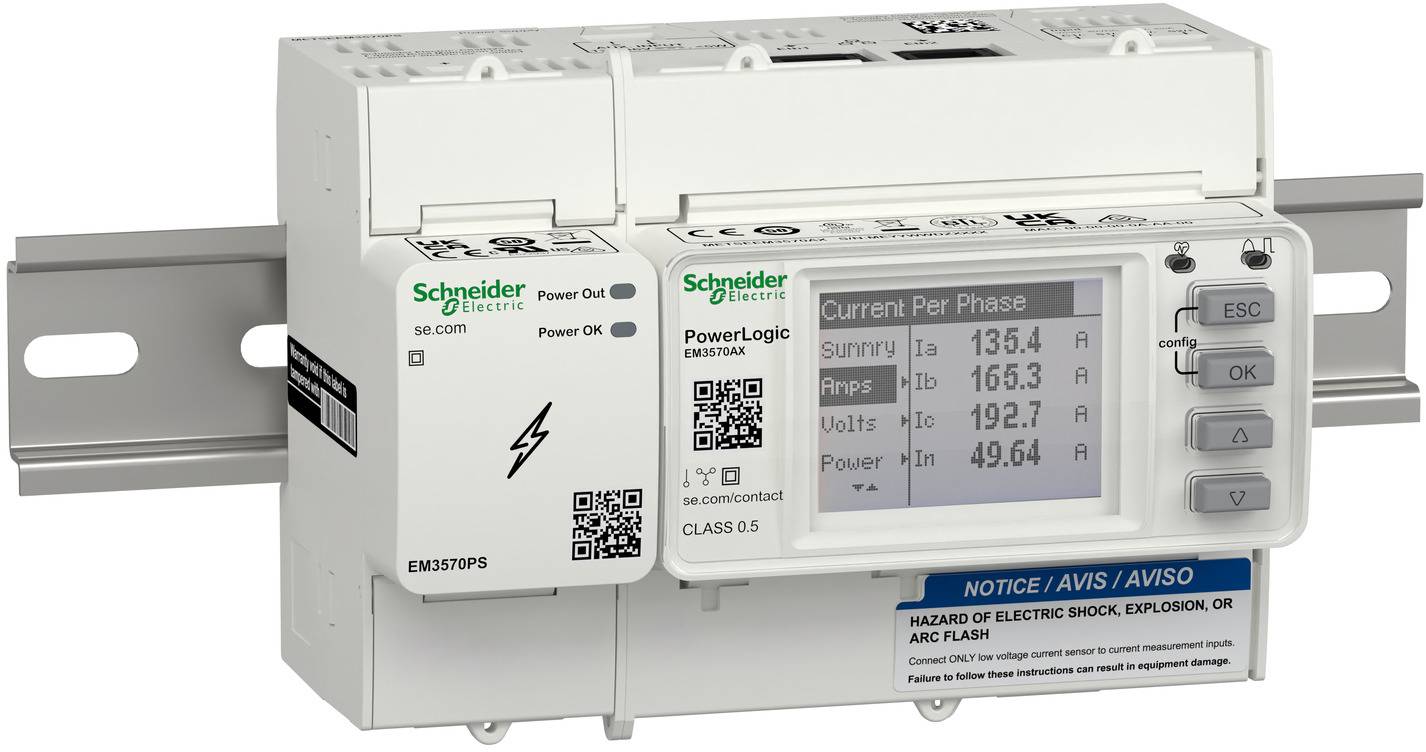

Schneider Electric METSEEM3570A METSEEM3570A Energy logger 1 pc(s)
EAN:
Part number:
Item no:
Product type
Energy logger
Dim
(W x H x D) 126 x 91.4 x 70.6 mm
Type
Transformer
Width
126 mm
Height
91.4 mm
Datasheet (PDF)
Number
Total (€ 486.55 / piece)
€ 486.55
plus VAT.
14-day return policy included
Technical specifications
- Display type: Digital
- Interface type: Other
- Width in division units: 7
- EDL40 Signature: No.
- Energy type: Active and reactive power
- Calibrated: No.
- Pulse output: Optical
- Measurement type load cycle: No.
- With lock code: No.
- Mounting type: REG
- Nominal voltage (Un) L-L 156-600 V
- Nominal voltage (Un) N-L 90-347 V
- Three-conductor/four-wire
- Return stop: No.
- Protection class (NEMA): 1
- Meter type: Electronic
- Product type
Energy logger
- Dim
(W x H x D) 126 x 91.4 x 70.6 mm
- Type
Transformer
- Width
126 mm
- Height
91.4 mm
- Type
METSEEM3570A
- Depth
70.6 mm
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755431 Schneider Electric METSEEM3570A METSEEM3570A Energy logger 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755431 Schneider Electric METSEEM3570A METSEEM3570A Energy logger 1 pc(s)
Description
The EM3570 series is a three-phase energy meter for DIN rail. Including additional external 24 V power supply. The EM3570A models are intended exclusively for use with Rogowski current transformers, with integrator and power supply for the current transformers integrated in the meter. Current input from 20A to 5000A with the Rogowski coil (current transformers must be designed for use with Class 1 voltage inputs). The bi-directional monitoring supports both upstream and downstream electricity flows, WAS is crucial for renewable energy applications. BACnet/IP, Modbus TCP/IP and SNMP are available natively, together with two Ethernet ports for daisy-chain, in order to ensure high versatility and flexibility. The inclusive 24 VDC power supply (METSEEM3570PS) has the same form factor as the counter, WAS allows installation side by side. The 24VDC voltage adapter accepts power inputs from 90 VAC to 600 VAC, or from 125 VDC to 300 VDC. Two digital inputs support status monitoring, pulse counting, multi-tariff and partial reset. Relay output for alarm notification. Product dimensions are as follows: Width 90 mm, depth 70 mm, height 91 mm. The product dimensions of the power supply are as follows: Width 36 mm, depth 70 mm, height 91 mm. Conforms to the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. The PowerLogic EM3570 supports IPv6 and automatic network discovery. It has embedded Web pages that display real-time data, peak usage, and alarm status. It was developed with a view to cyber security and enables the complete configuration of all network services.
