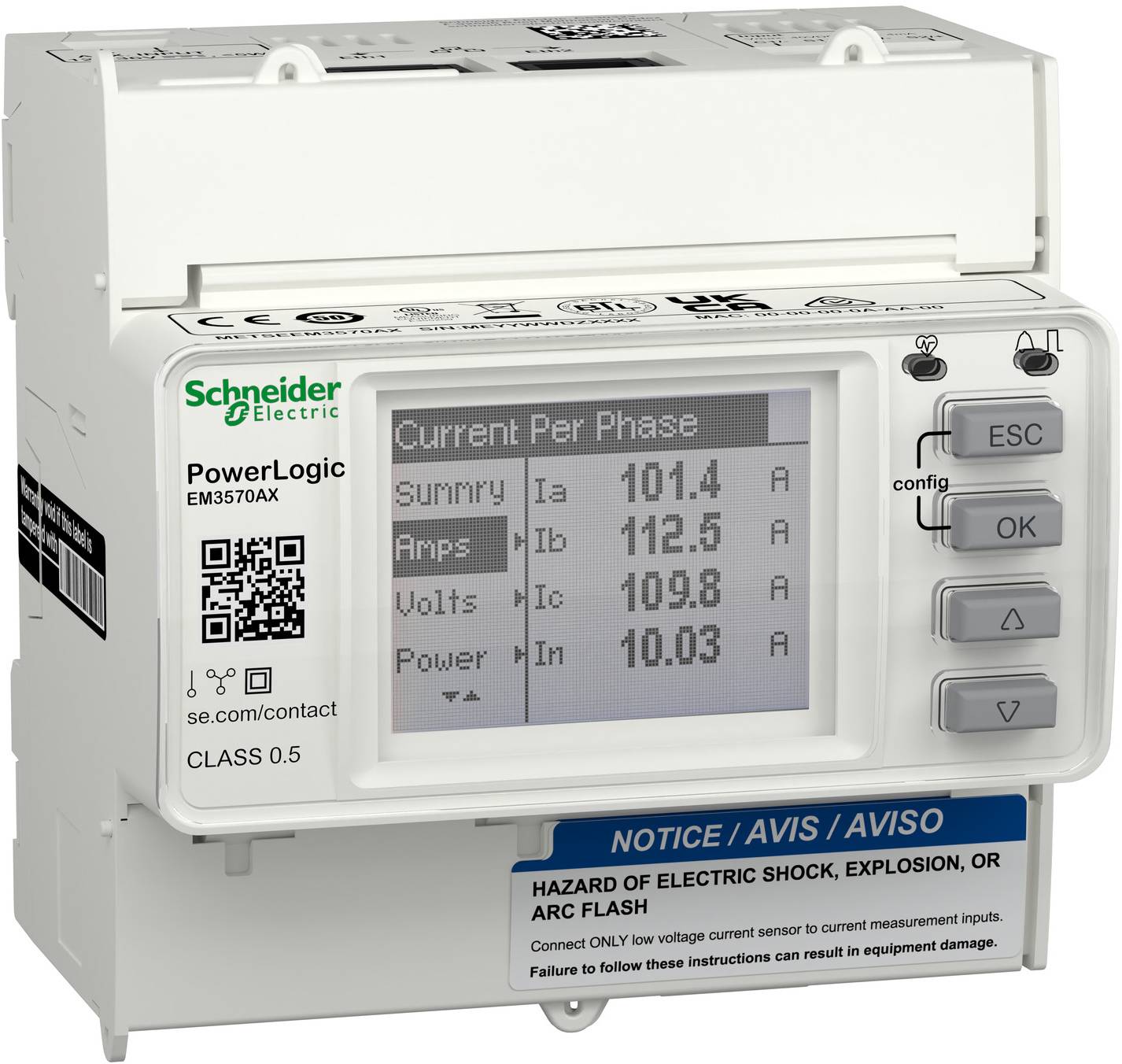

Schneider Electric METSEEM3570AX METSEEM3570AX Energy logger 1 pc(s)
EAN:
Part number:
Item no:
Product type
Energy logger
Dim
(W x H x D) 90 x 91.4 x 70.6 mm
Type
Transformer
Width
90 mm
Height
91.4 mm
Datasheet (PDF)
Number
Total (€ 390.76 / piece)
€ 390.76
plus VAT.
14-day return policy included
Technical specifications
- Display type: Digital
- Interface type: Other
- Width in division units: 5
- EDL40 Signature: No.
- Energy type: Active and reactive power
- Calibrated: No.
- Pulse output: Optical
- Measurement type load cycle: No.
- With lock code: No.
- Mounting type: REG
- Nominal voltage (Un) L-L 24-24 V
- Nominal voltage (Un) N-L 24-24 V
- Three-conductor/four-wire
- Return stop: No.
- Protection class (NEMA): 1
- Meter type: Electronic
- Product type
Energy logger
- Dim
(W x H x D) 90 x 91.4 x 70.6 mm
- Type
Transformer
- Width
90 mm
- Height
91.4 mm
- Type
METSEEM3570AX
- Depth
70.6 mm
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755435 Schneider Electric METSEEM3570AX METSEEM3570AX Energy logger 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755435 Schneider Electric METSEEM3570AX METSEEM3570AX Energy logger 1 pc(s)
Description
The EM3570series offers three-phase energy meters for DIN rail mounting, which are suitable for exact cost allocation and partial measurement. The EM3570AX variant is exclusively intended for use with current transformers with Rogowski coils, whereby the integrator and the power supply for the current transformers are integrated in the measuring device. Current input from 50A to 5000A with Rogowski coil (current transformers must be designed for use with Class 1 voltage inputs). Bi-directional monitoring supports both upstream and downstream electricity flow, WAS is critical for renewable energy applications. Not recommended for applications with Hohem harmonic content. BACnet/IP, Modbus TCP/IP and SNMP are native, together with Dual Ethernet ports for daisy chain for versatile and flexible use. The product must be operated with a 24 VDC supply. Two digital inputs support status monitoring, pulse counting, multi-tariff and partial reset. Relay output for alarm signal. The dimensions of the product are as follows: Width 90 mm, depth 70 mm, height 91 mm. Conforms to the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. Use Rogowski type current transformers. The measuring device must be supplied with 24 V DC voltage, a voltage transformer is not included. The PowerLogic EM3570 supports IPv6 and automatic network detection. It has a built-in web page that displays real-time data, peak loads, and alarm status. Designed with cybersecurity in mind, it also enables the complete configuration of all network services.
