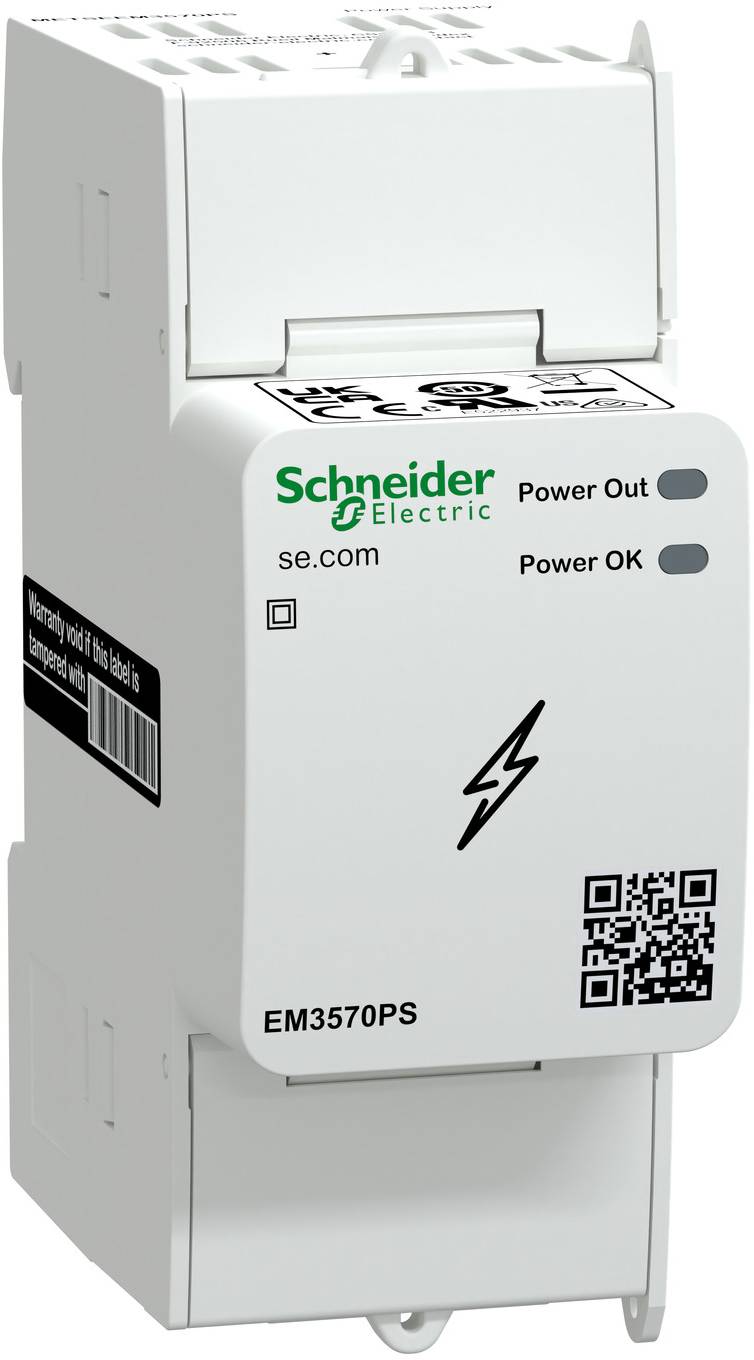

Schneider Electric METSEEM3570PS METSEEM3570PS Energy logger 1 pc(s)

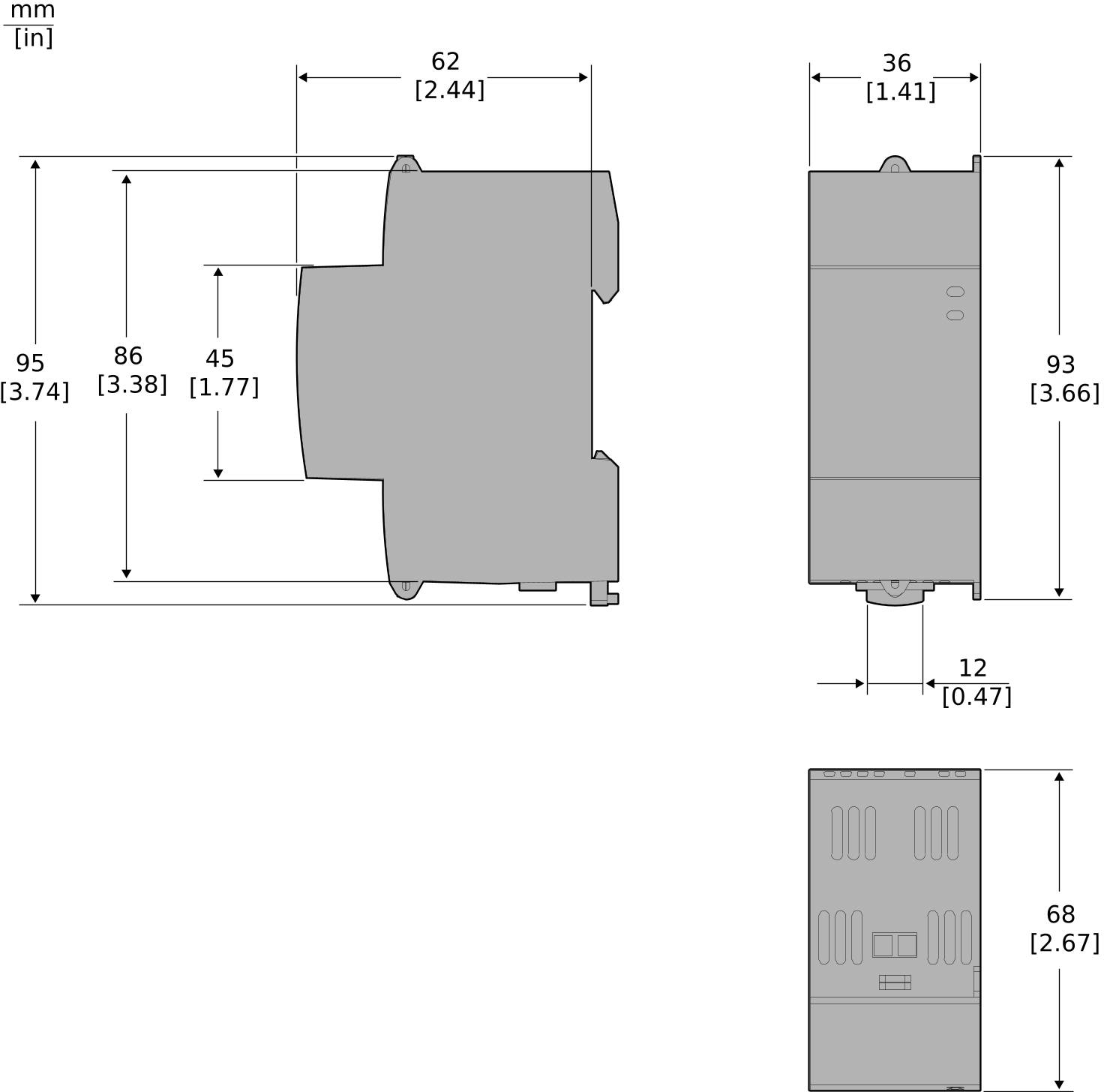

The EM3570PS supplies the measuring device with 24 VDC control voltage from a broad spectrum of AC inputs. The 24VDC power supply accepts power inputs from 90 VAC to 600 VAC or from 125 VDC to 300 VDC. The dimensions of the product are as follows: Width 36 mm, depth 70 mm, height 91 mm. Thanks to its form factor, which is similar to that of the meter, you can place the meter and the power supply side by side. The 24 VDC output is located on the bottom of the device, the connection to the measuring device is at the top.
