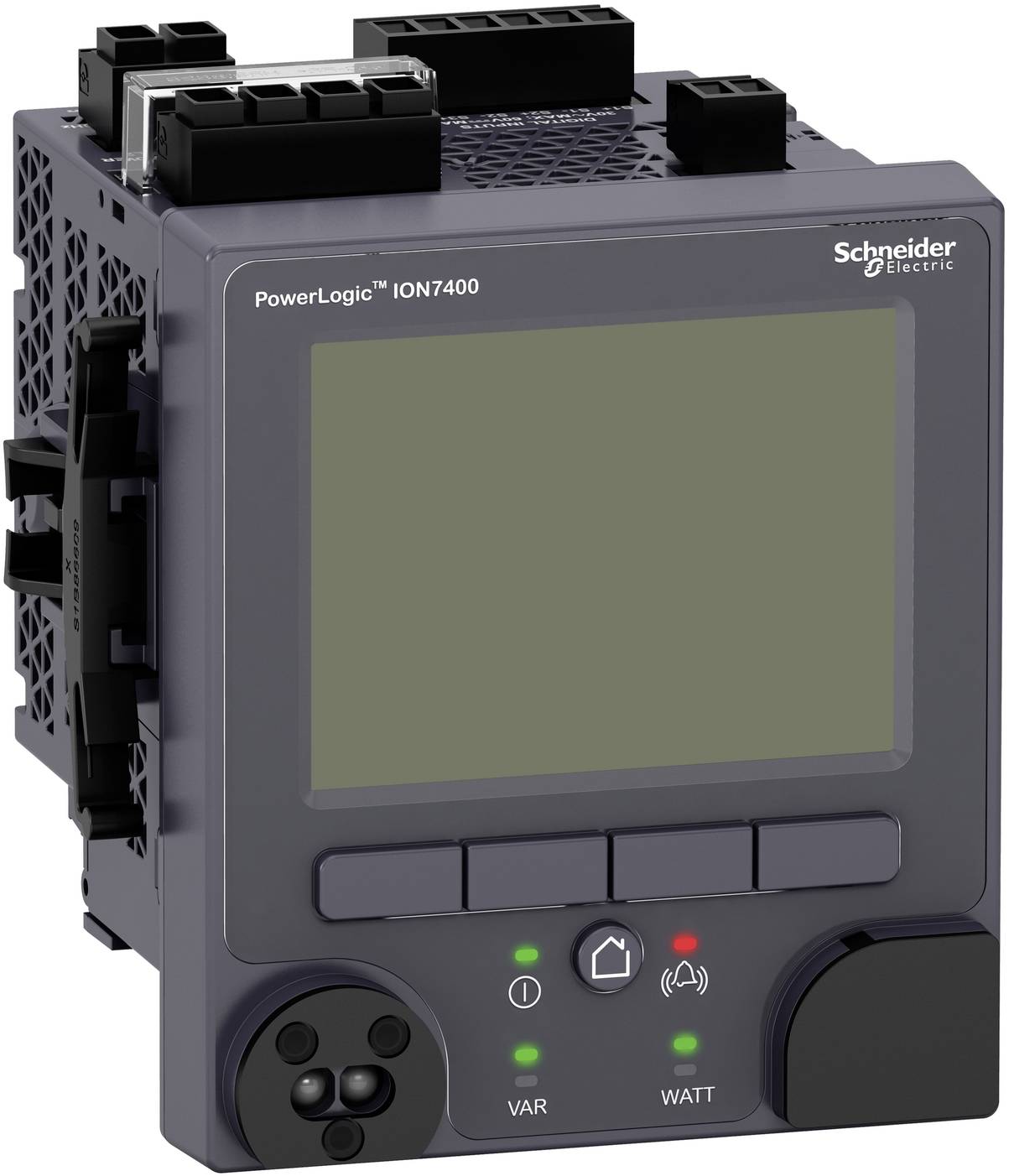

Schneider Electric METSEION7400 Network diagnostics
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,659.66 / piece)
€ 3,659.66
plus VAT.
Technical specifications
- Wire cross-section with single wire connections: 1.31-5.26 mm²
- Number of analog outputs: 0
- Number of analog inputs: 0
- Number of digital outputs: 1
- Number of digital inputs: 3
- Number of Ethernet ports: 2
- Number of voltage measuring inputs: 4
- Number of current inputs: 8
- Reactive power meter: Yes
- Display: Graphic
- Remote display: No.
- Frequency meter: Yes
- Calibrated: Yes
- Suitable for RJ plug: Yes
- Accuracy class reactive power according to IEC 62053-23: Other
- Accuracy class effective power according to IEC 62053-22: 0.2S
- Impulse output: Electrical
- Pulse counter: No.
- Maximum current (Imax): 20 A.
- Measurement type load profile: Yes
- Measured value memory: Yes
- With audit logging (audit log): Yes
- With tachometer: No.
- With firmware signature: No.
- With communication interface M-Bus: No.
- With KNX communication interface: No.
- With RS-485 communication interface: Yes
- With logging of security events (security event log): Yes
- With role-based access control (RBAC): No.
- Mounting type: Front
- Nominal current (In) 5 A
- Harmonic measurement: Yes
- Phase angle (cos phi): Yes
- Three-conductor/four-wire
- Apparent power: Yes
- Voltage type of supply voltage: AC/DC
- Ammeter: Yes
- Supports protocol for IEC 61850 Ethernet: Yes
- Supports protocol for Modbus: Yes
- Supports protocol for OPC UA PubSub: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for other bus systems: Yes
- Supply voltage AC 50 Hz: 90-415 V
- Supply voltage AC 60 Hz: 90-415 V
- Supply voltage DC 110-415 V
- Voltmeter: Yes
- Web server with HTTPS transfer protocol: Yes
- Active power meter: Yes
- Product type
Network diagnostics
Manufacturer's standards (no certificate)
- Dim
(W x H x D) 98 x 112 x 78.5 mm
- Width
98 mm
- Height
112 mm
- Depth
78.5 mm
- Type
Transformer
- Power factor
TRUE
Front mounting
98 mm
Measurement transformer
112 mm
78.5 mm
TRUE
Graphic
20 A
TRUE
TRUE
TRUE
TRUE
3
1
0
0
AC/DC
FALSE
TRUE
TRUE
Other
2
TRUE
TRUE
FALSE
TRUE
FALSE
TRUE
TRUE
TRUE
1.31-5.26 mm²
FALSE
90-415 V
90-415 V
110-415 V
TRUE
TRUE
Electrical
Three conductor/four conductor
TRUE
5 A
0.2S
Other
4
8
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3756793 Schneider Electric METSEION7400 Network diagnostics
User & Safety Instructions
User & Safety Instructions 3756793 Schneider Electric METSEION7400 Network diagnostics
User & Safety Instructions 3756793 Schneider Electric METSEION7400 Network diagnostics
Description
Mains analyzer series ION7400 for front installation in low- and medium-voltage applications with integrated display, USB-port and optical interface. Display: Full-graphics 89mm TFT LCD color display. 4-quadrant measurement: Import and export for active and reactive energy, active, reactive, apparent energy meter PRO. Phase as well as separate power energy meters with rate selection via weekly timer, communication or contact. Current, voltage (average and per phase), average current, active, reactive and apparent power, Power factor (total and per phase) performance mean values. Frequency, min and max values of the current values, max values of the current and power mean values Harmonic content THD I, THD U und TDD. Harmonic analysis: Measured values per phase with bar chart up to 31. Harmonic on the device display up to 63. Overoscillation via software.
