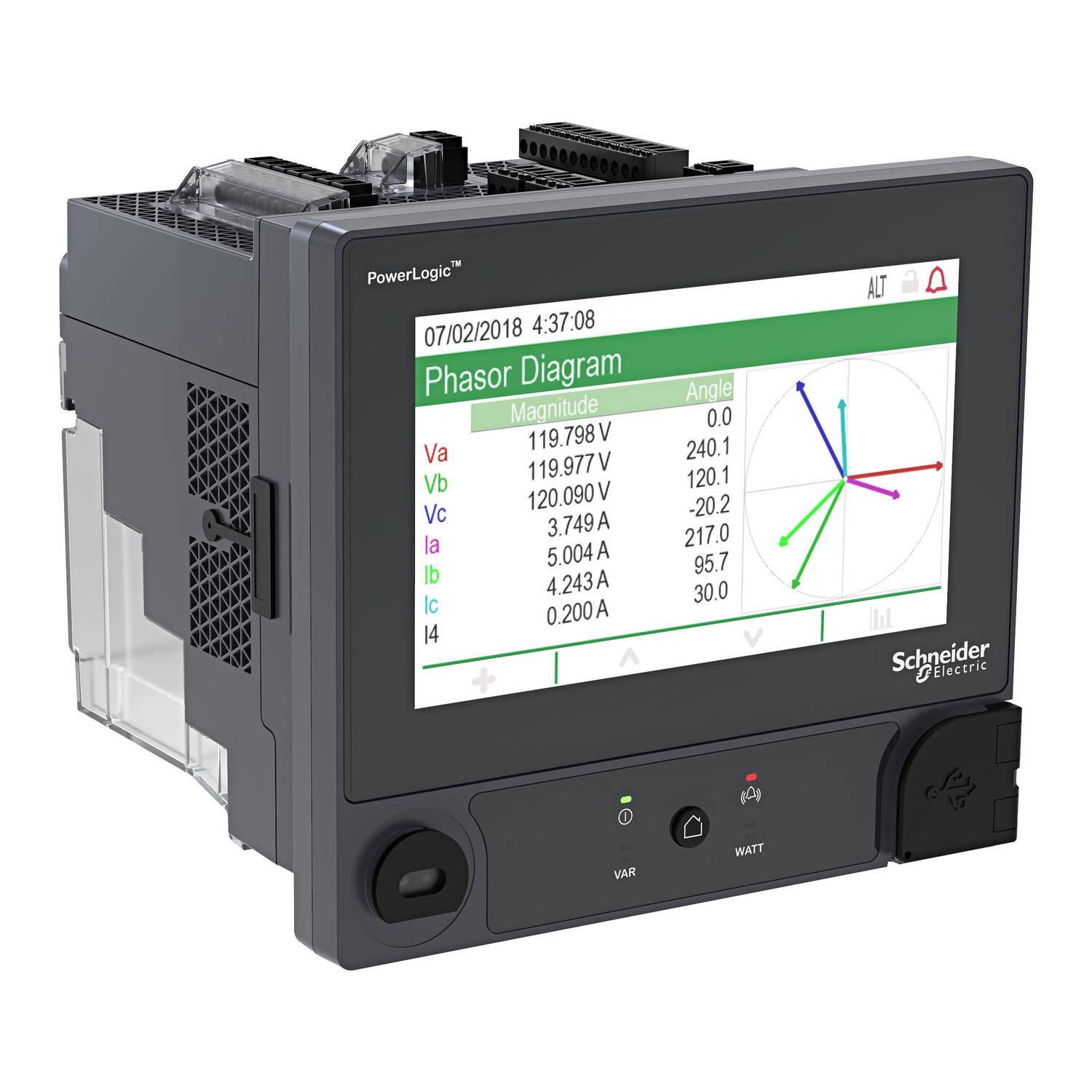

Schneider Electric METSEION95040 Network diagnostics

The network analyzer ION9000T with 192mm display is your 24/7 Power quality expert, which supplies not only data but also information. A Power quality instrument (PQI-A) certified according to IEC 62586-1/-2 ensures a reliable, precise performance, which is perfect for power supply as well as for demand-side applications. Accuracy has been verified by a third-party lab rated 0.1S (ANSI C12.20, IEC 62053-22). The high degree of adaptability and modularity, the programmability of the ION technology and the option modules that can be installed on site can be used to meet any solution, thus protecting your investment now and in the future. With power quality analysis according to EN 50160 and IEEE 519 as well as patented interference direction detection Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, syslog protocol, enabling/disabling communications ports, and 50 configurable accounts. With 2 GB memory to support 50 data protocols, more than 50 user-defined alarms, interference and transient waveforms. RMS logging in 1/2-cycle, user-defined websites, min/max protocols, energy trends and usage time. Ability to time-stamp events to +/-1 ms using the time synchronization method that includes PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485), and the network time setting feature. 8 digital inputs, 4 digital outputs and 2 relay outputs, plus the ability to add up to 4 optional modules. The option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Ability to detect pulsed and oscillating high-speed transients up to 100 ns and simultaneously record waveforms and 1/2-cycle effective value for each event. Voltage inputs from 100 to 690 V between phases, current inputs from 1 A, 5 A power class 2, 10, 20 A, frequency of 20-450 Hz, wide control power range from 90 to 480 VAC or 110 to 480 VDC. DIN rail mounting with remote display and panel mounting (with back-to-back adapter) and 2 display options further increase the flexibility and adaptability of the ION9000. Dimensions WxHxD: 160 x 135 x 160 mm (plus 22.5 mm width for each I/O option module.
