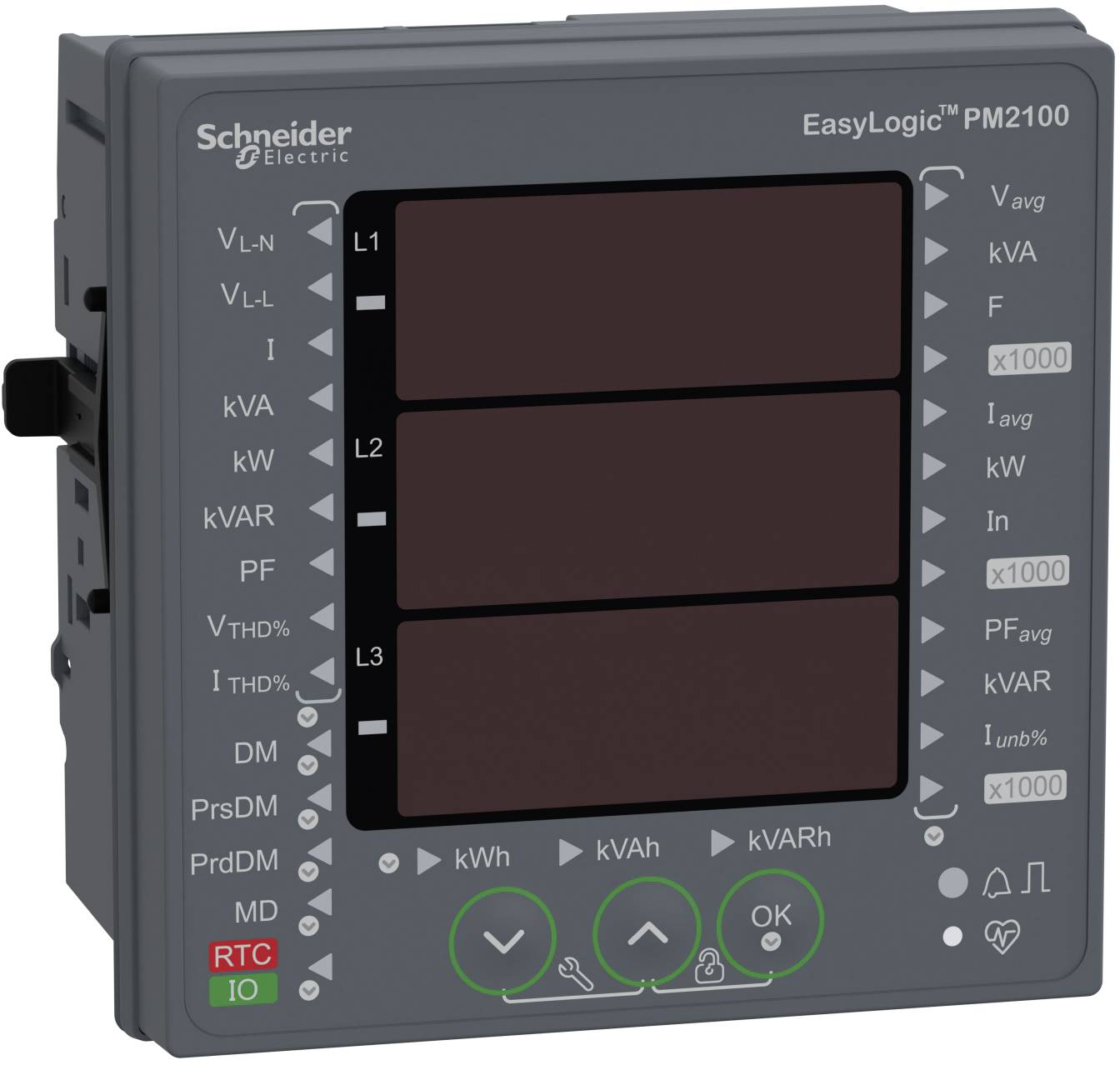

Schneider Electric METSEPM2130 Panel meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 377.31 / piece)
€ 377.31
plus VAT.
Technical specifications
- Wire cross-section with single wire connections: 0.82-3.31 mm²
- Number of analog outputs: 0
- Number of analog inputs: 0
- Number of digital outputs: 0
- Number of digital inputs: 0
- Number of Ethernet ports: 0
- Number of voltage measuring inputs: 4
- Number of current inputs: 6
- Reactive power meter: Yes
- Display LED
- Remote display: No.
- Frequency meter: Yes
- Calibrated: No.
- Suitable for RJ connector: No.
- Accuracy class reactive power according to IEC 62053-23: Other
- Accuracy class effective power according to IEC 62053-22: 0.5 S.
- Pulse output: Optical
- Pulse counter: No.
- Maximum current (Imax): 12 A.
- Measurement type load cycle: No.
- Measured value memory: Yes
- With audit logging (audit log): No.
- With tachometer: No.
- With firmware signature: No.
- With communication interface M-Bus: No.
- With KNX communication interface: No.
- With RS-485 communication interface: Yes
- With logging of security events (security event log): No.
- With role-based access control (RBAC): No.
- Mounting type: Front
- Nominal current (In) 5 A
- Harmonic measurement: Yes
- Phase angle (cos phi): No.
- Three-conductor/four-wire
- Apparent power: Yes
- Voltage type of supply voltage: AC
- Ammeter: Yes
- Supports protocol for IEC 61850 Ethernet: No.
- Supports protocol for Modbus: Yes
- Supports protocol for OPC UA PubSub: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for other bus systems: No.
- Supply voltage AC 50 Hz: 80-277 V
- Supply voltage AC 60 Hz: 80-277 V
- Supply voltage DC 100-277 V
- Voltmeter: Yes
- Web server with HTTPS transfer protocol: No.
- Active power meter: Yes
- Product type
Panel meter
Manufacturer's standards (no certificate)
- Dim
(W x H x D) 96 x 96 x 65.43 mm
- Width
96 mm
- Height
96 mm
- Depth
65.43 mm
- Type
Transformer
- Power factor
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755427 Schneider Electric METSEPM2130 Panel meter
User & Safety Instructions
User & Safety Instructions 3755427 Schneider Electric METSEPM2130 Panel meter
Description
This device is a universal measuring device for installation in control cabinets with a size of 96 mm x 96 mm and a 3-line, light-red, 4-digit LED display with a height of 14.2 mm. The universal measuring device measures the active energy according to the accuracy class 0.5S according to IEC 62053-22 with a sampling rate of 64 samples per cycle. Can measure all three power and energy values like active, apparent and reactive power as well as voltages, current, frequency and power factor. Plus the entire harmonic distortion and individual harmonics up to 31. Order. The universal measuring device works either with a mains frequency of 50Hz or 60Hz and accepts universal control voltages from 80 to 300 V between phase and neutral, AC or DC. The rated current for this meter is either 1 A or 5 A at the current input. It supports up to 13 different types of wiring schemes under single-phase, two-phase or three-phase configuration types. The range of the measured voltage between the phases is 35 to 480 V AC from phase to phase at 45 to 65 Hz, while the range between phase and neutral is 20 to 277 V. It has an RS485 communication port with Modbus RTU protocol. The meter can be upgraded with optional I/O modules for pulse monitoring. These modules have either two channels for digital inputs and outputs or analog inputs and outputs. This version can be configured for 23 different types of alarms stored in 40 tabs. Product dimensions are as follows: Width 96 mm, depth 54 mm, height 96 mm and product weight 300 g.
