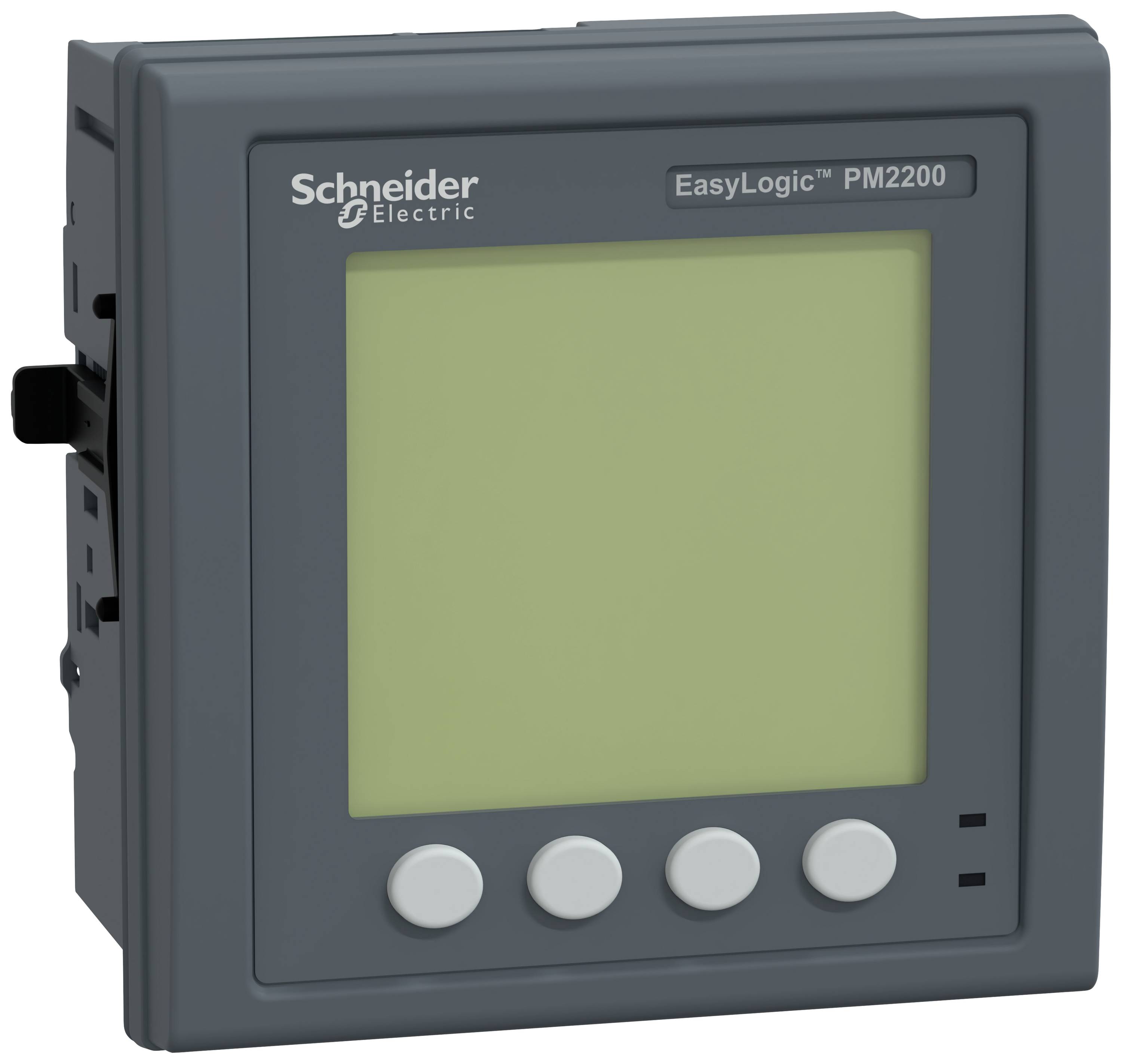

Schneider Electric METSEPM2210 Network diagnostics

This device is a universal measuring device for control cabinet installation of 96 mm x 96 mm and a backlit LCD display with 128 x 128 pixels. The universal measuring device measures the active energy according to the accuracy class class class class 1.0 according to IEC 62053-21 with a sampling rate of 64 samples per cycle. Can measure all three power and energy values like active, apparent and reactive power as well as voltages, current, frequency and power factor. Plus the total harmonic distortion for current and voltage on a phase basis. The universal measuring device works either with a mains frequency of 50Hz or 60Hz and accepts universal control voltages from 44 to 300 V between phase and neutral, AC or DC. The rated current for this meter is either 1 A or 5 A at the current input. It supports up to 13 different types of wiring schemes under single-phase, two-phase or three-phase configuration types. The range of the measured voltage between the phases is 35 to 480 V AC from phase to phase at 45 to 65 Hz, while the range between phase and neutral is 20 to 277 V. The meter also has a digital pulse output for any energy parameter that can be scaled with different energy values. Product dimensions are as follows: Width 96 mm, depth 54 mm, height 96 mm and product weight 300 g.

This text is machine translated.
