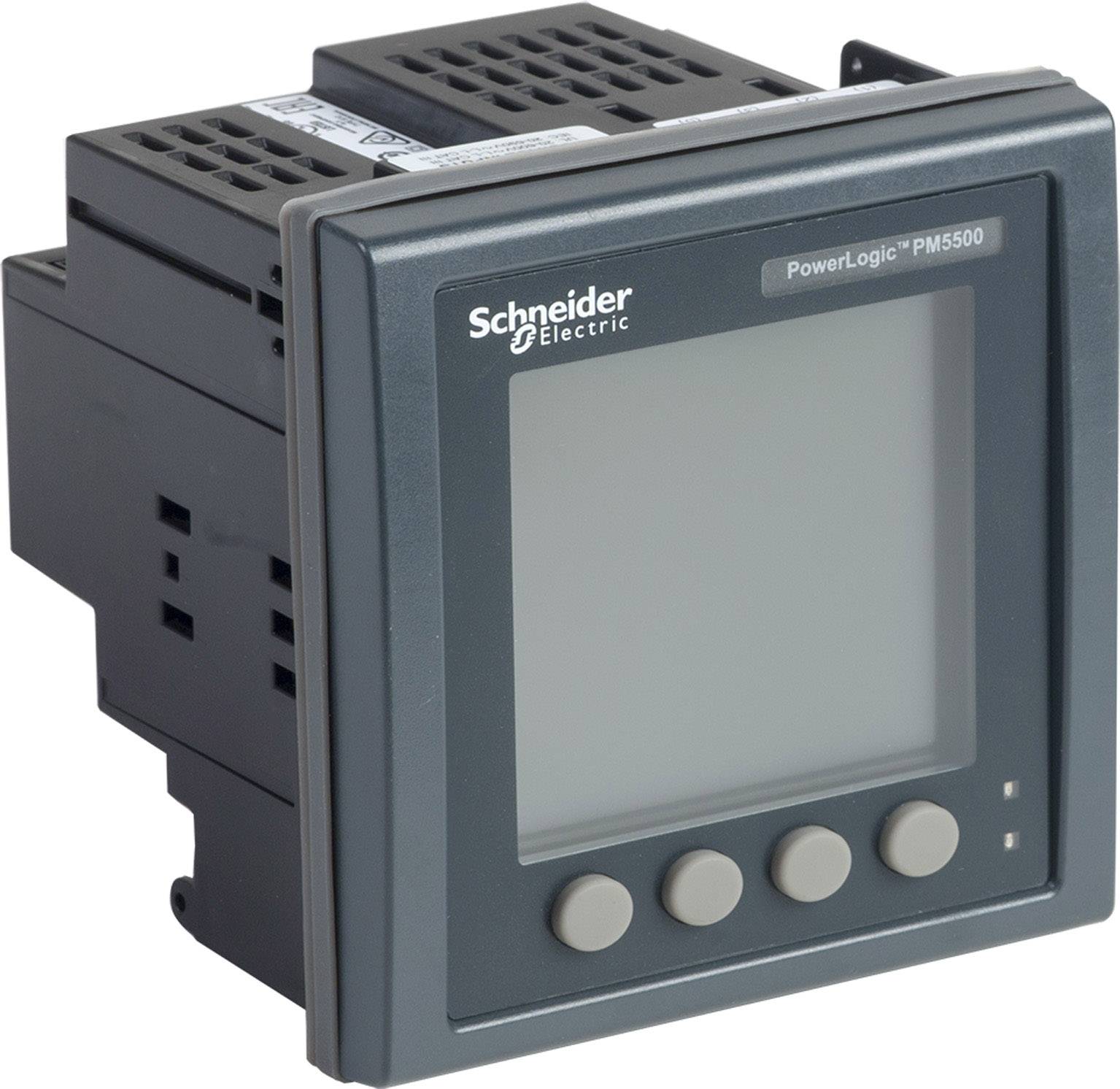

Schneider Electric METSEPM5560 Meter
EAN:
Part number:
Item no:
Cutter METSEPM5560 measuring device with 1 mod.
Technical specifications
- With Modbus: Nominal current 5 A.
- Product type
Meter
- Reading type
Amperage
Frequency
Power factor
Reactive power
AC voltage
Power
- Reading range (min.)
45 Hz
- Type
METSEPM5560
- Reading range (max.)
65 Hz
- Display technology
LCD
IP30
IP52
- Operating voltage
690 V AC
- Dim
(L x W x H) 72 x 96 x 96 mm
- Weight
450 g
- Max. operating voltage
690 V AC
- Min. operating voltage
20 V AC
- Factory colour
Grey
- Width
96 mm
- Height
96 mm
- Length
72 mm
- Interfaces
RS485
1 x Ethernet/LAN
- Interfaces
Ethernet
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1871527 Schneider Electric METSEPM5560 Meter
Description
PM5560-measuring device m. 1 mod. 2 Eth to 63. H, 1,1m 4DI/2 DA 52 alarms, flush. Series: Power Logic Product Name: Power Logic PM 5000 - Short description of the device: PM5560 product or component type: Network Analyzer.
