Schneider Electric METSEPM8310 Network diagnostics
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,500.00 / piece)
€ 3,500.00
plus VAT.
Technical specifications
- Product type
Network diagnostics
Manufacturer's standards (no certificate)
Front mounting
96
Measurement transformer
96 mm
77.5 mm
TRUE
Graphic
20 A
TRUE
TRUE
TRUE
TRUE
3
1
0
0
DC
FALSE
TRUE
TRUE
Other
2
TRUE
TRUE
FALSE
TRUE
FALSE
TRUE
TRUE
TRUE
1.31-5.26 mm²
FALSE
0-0.0 V
0-0.0 V
20-60.0 V
TRUE
TRUE
Electrical
Three conductor/four conductor
TRUE
5 A
42-69.0
320
240
0.2S
Other
51200
4
8
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3305082 Schneider Electric METSEPM8310 Network diagnostics
User & Safety Instructions
User & Safety Instructions 3305082 Schneider Electric METSEPM8310 Network diagnostics
User & Safety Instructions 3305082 Schneider Electric METSEPM8310 Network diagnostics
Description

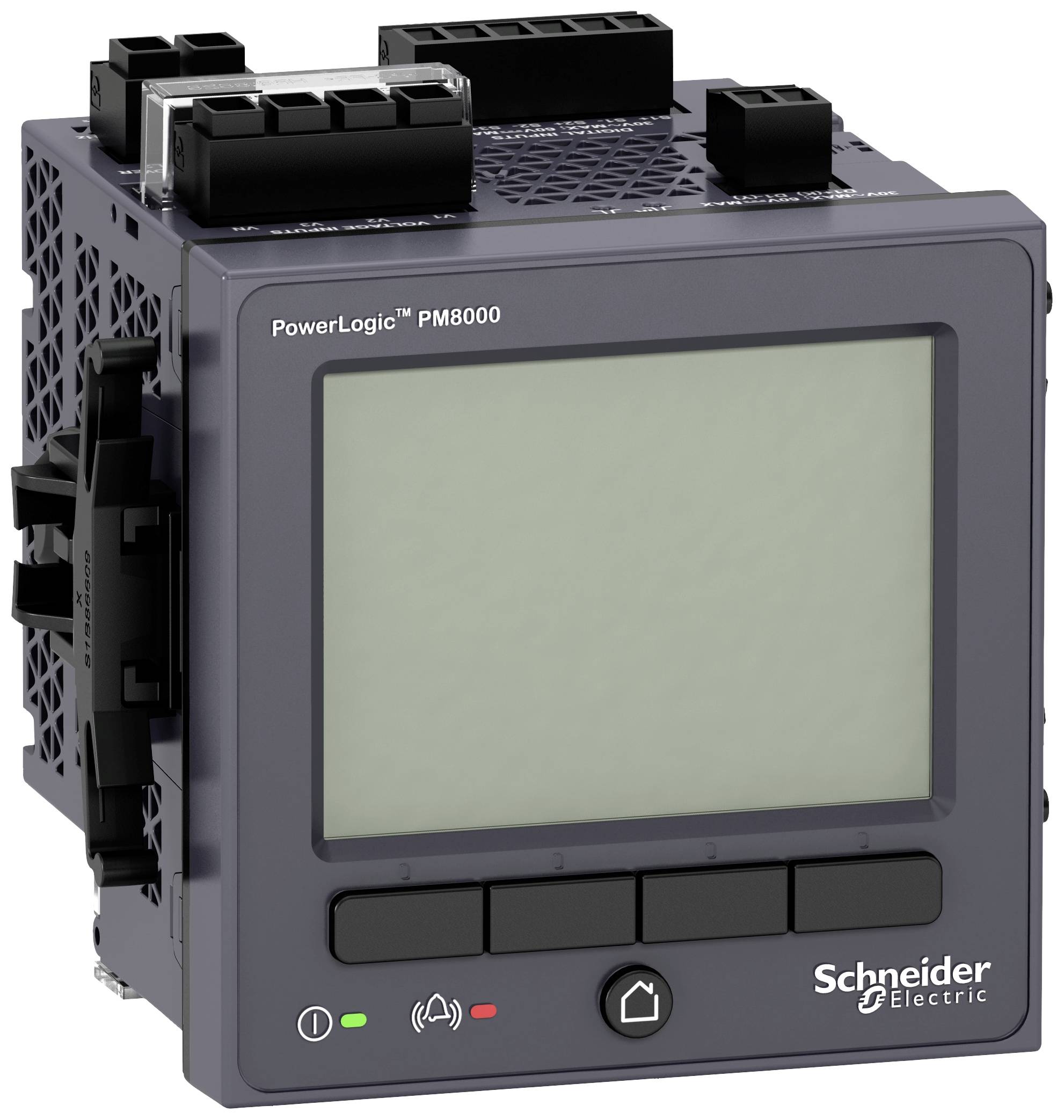

The PowerLogic PM8310 is a power analyzer for front installation 96 x 96 mm in low and medium voltage applications with integrated display and LVDC control voltage. It is designed to ensure the availability and efficiency of your energy-critical equipment. It creates energy transparency and provides data that can be used to complex network quality conditions. With the modular, flexible and powerful ION-technology individual applications can be created for each measuring device. It has high accuracy, multiple communication ports, a web-based user interface and a graphical color display. This mains analyzer also has an integrated power quality analysis and a patented interference direction detection. Certified by independent laboratories for the accuracy of class 0.2S at active power (IEC62052-11, IEC62053-24, IEC62053-22). Also certified for network quality (IEC62586-2, IEC61000-4-30 class A). Cybersecurity features include secure protocols (HTTPS, SFTP, Secure ION), security event logging, syslog protocol. Ability to enable/disable communication ports and support 50 configurable user accounts to manage access. With 512 MB of memory for up to 64 data protocols (1024 channels), more than 50 user-definable alarms, waveform recording with up to 512 sampling values/cycle, 1/2-cycle effective value (RMS) logging. The storage can also be used for custom web pages, min/max logs, power trends, and operating hours. Time stamp for events with an accuracy of +/-1ms using time synchronization. Time synchronization methods that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time setting function. 3 digital inputs and one digital output, plus the ability to add up to 4 optional modules. The input/output option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Extensive control voltage of 20-60 VDC. Operating environment from -25 to +70°C, humidity from 5% to 95% and operating altitude up to 3000 m.
