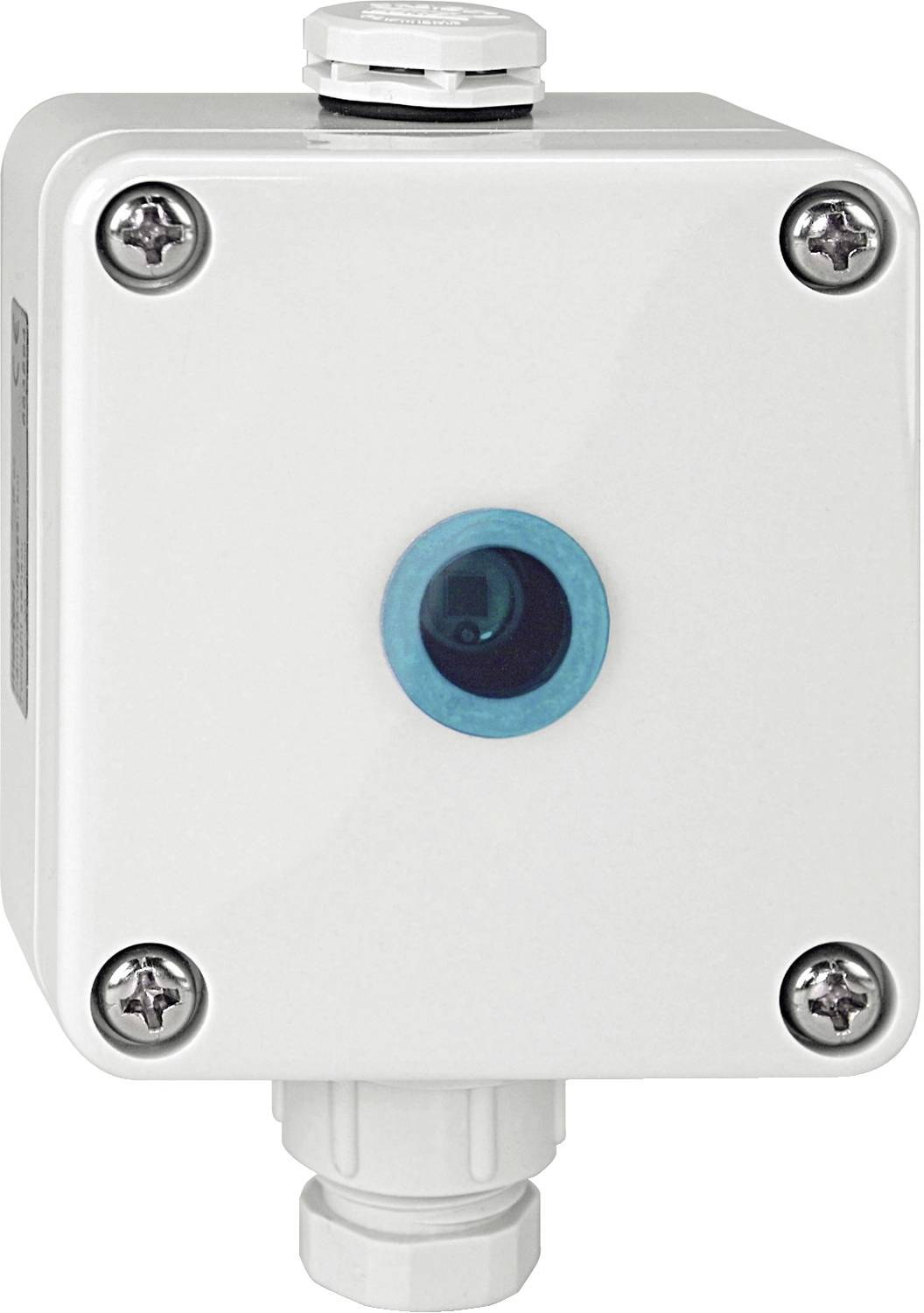

Schneider Electric MTN663594 PLC sensor 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
14-day return policy included
Technical specifications
- Product type
PLC sensor
- No. of analogue outputs
1
- No. of outputs (max.)
1
- Type
MTN663594
- Manufacturer part #
MTN663594
- Dim
(L x W x H) 64 x 58 x 35 mm
- Operating voltage
24 V DC
- Height
35 mm
- Length
64 mm
- Width
58 mm
Surface mounted (plaster)
Grey
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
None
FALSE
7035
FALSE
IP65
FALSE
FALSE
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 3343803 Schneider Electric MTN663594 PLC sensor 24 V DC
User & Safety Instructions
User & Safety Instructions 3343803 Schneider Electric MTN663594 PLC sensor 24 V DC
Conformity certificate
Conformity certificate 3343803 Schneider Electric MTN663594 PLC sensor 24 V DC
Description
Twilight sensor The twilight sensor is needed for recording and evaluating the brightness. The brightness is measured via a photoelectric diode and converted electronically into an analogue output signal of 0 V - 10 V. For external mounting and connecting to the weather station REG-K/4-way or the analog input REG-K / 4-way. These two devices provide the supply voltage required to operate the sensor. Measurement range from 0 to 255 Lux, linear. Output: 0-10 V short-circuit proof External power supply: Voltage 24 V DC (15-30 V DC). Current consumption: approx. 5 mA. Cable: With PG7-threaded connection. Recommended cable: 3 x 0.25 mm². Protection system: IP 65 Dimensions 58 x 35 x 64 (W x H x D) Colour light grey.
This text is machine translated.
