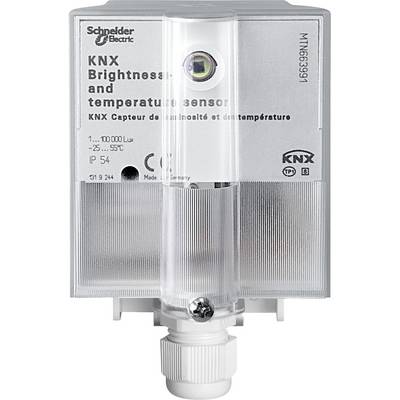

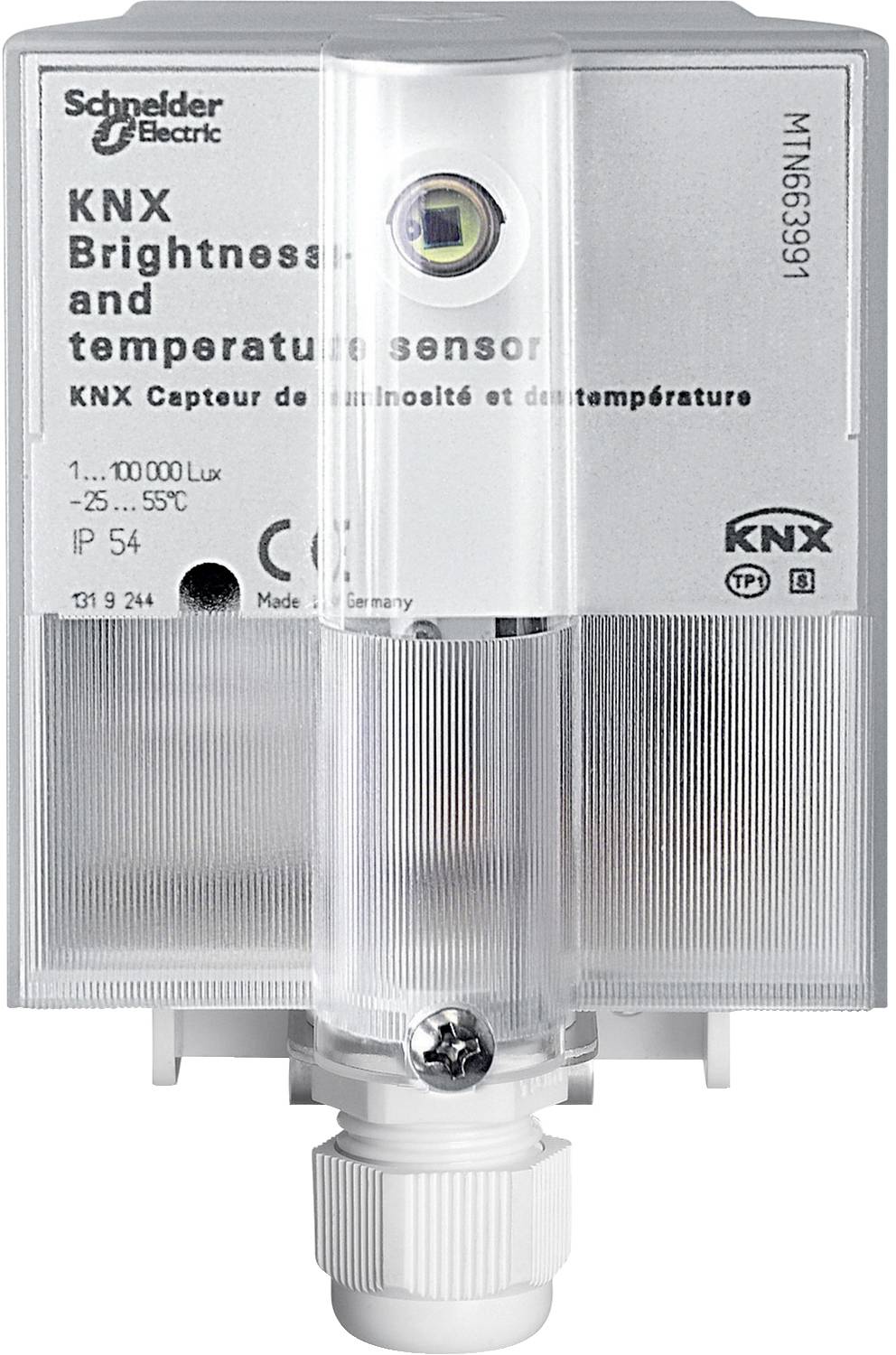

Schneider Electric MTN663991 PLC sensor

KNX brightness and temperature sensor. The sensor detects brightness and temperature and sends these values to the bus. It has a temperature sensor and a brightness sensor. 3 universal channels for individual tasks or logical links. Temperature and brightness threshold in any combination. Sun-protection channel for blinds/shutter control. Objects for: Twilight threshold, brightness threshold, drive control, solar automation, learning, Security. Automatic sun protection. Controls the blinds automatically during the day. Learning object. This resets each brightness threshold by pressing a button. Suitable for mounting on an external wall: With integrated bus coupler. The bus is connected via a bus terminal. Power consumption: max. 150 mW Sensors: 2. Temperature measurement range -25°C to + 55°C (±5% or ±1°). Brightness range 1 to 100,000 Lux (±20% or ±5 Lux). IP 54 according to DIN EN 60529 when installed vertically with cover. Dimensions 110 x 72 x 54 mm Colour light grey.

This text is machine translated.
