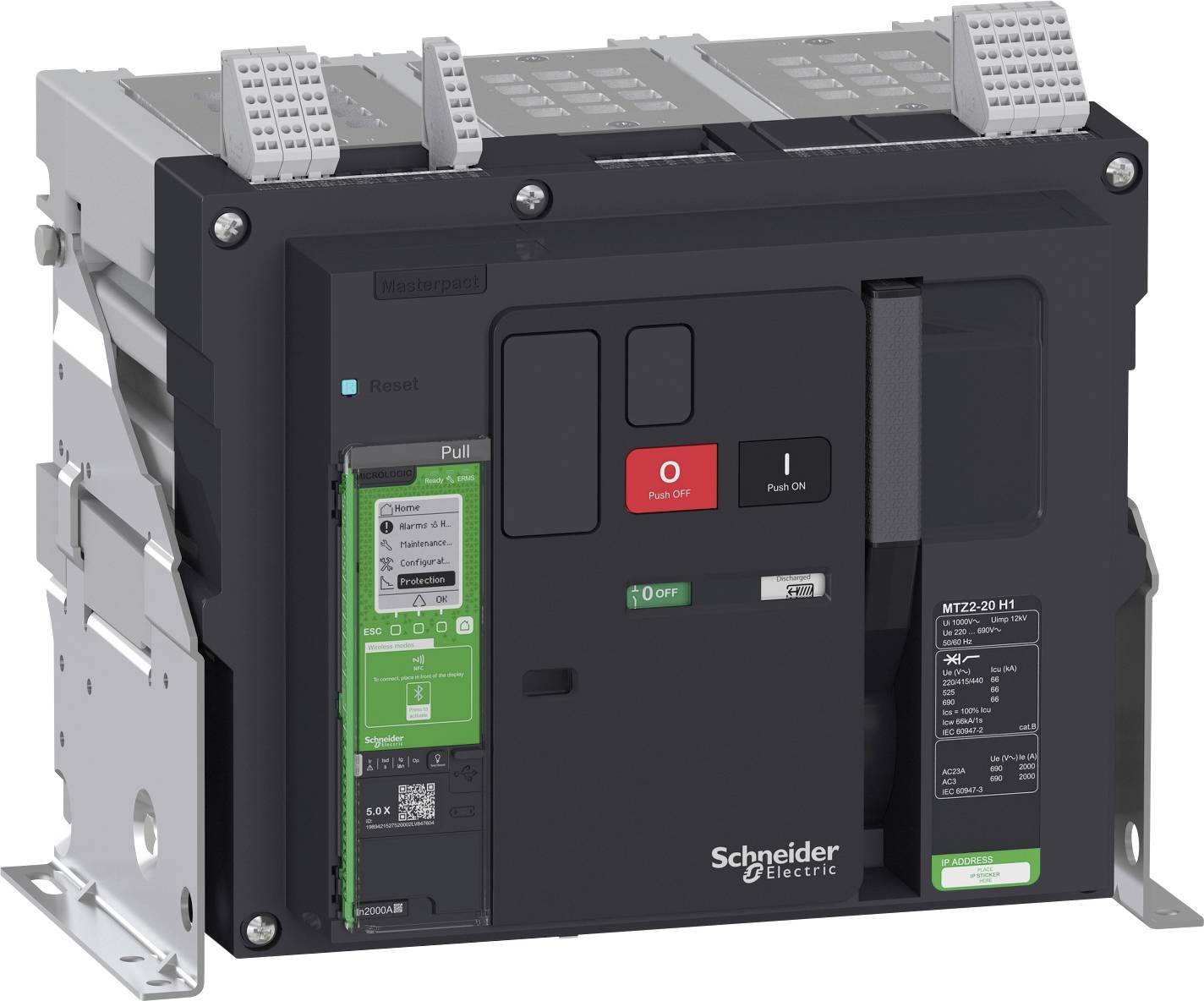

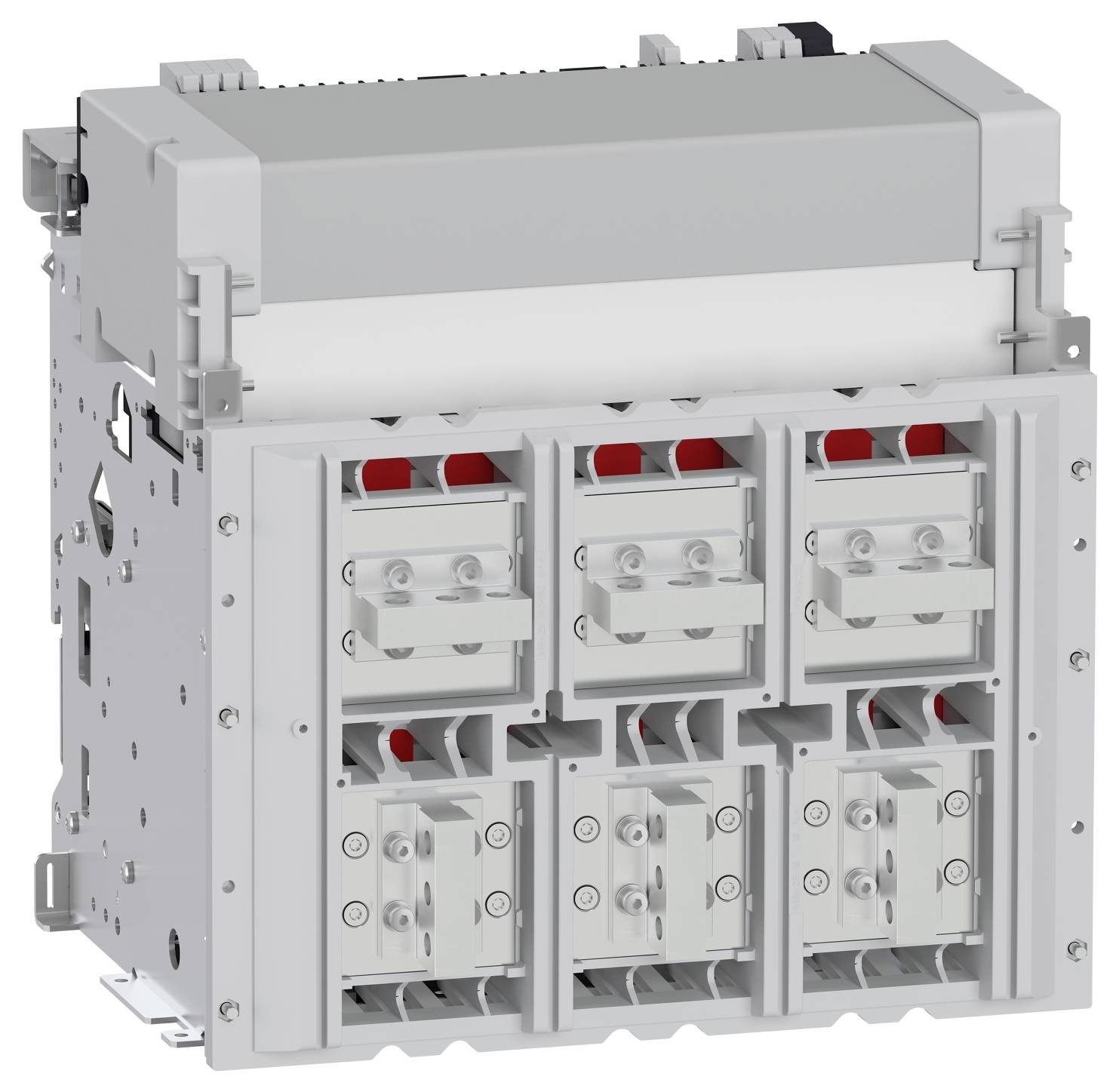

Schneider Electric MTZ220H15X3PMD Circuit breaker 1 pc(s) 5 change-overs Adjustment range (amperage): 800 - 2000 A Switc

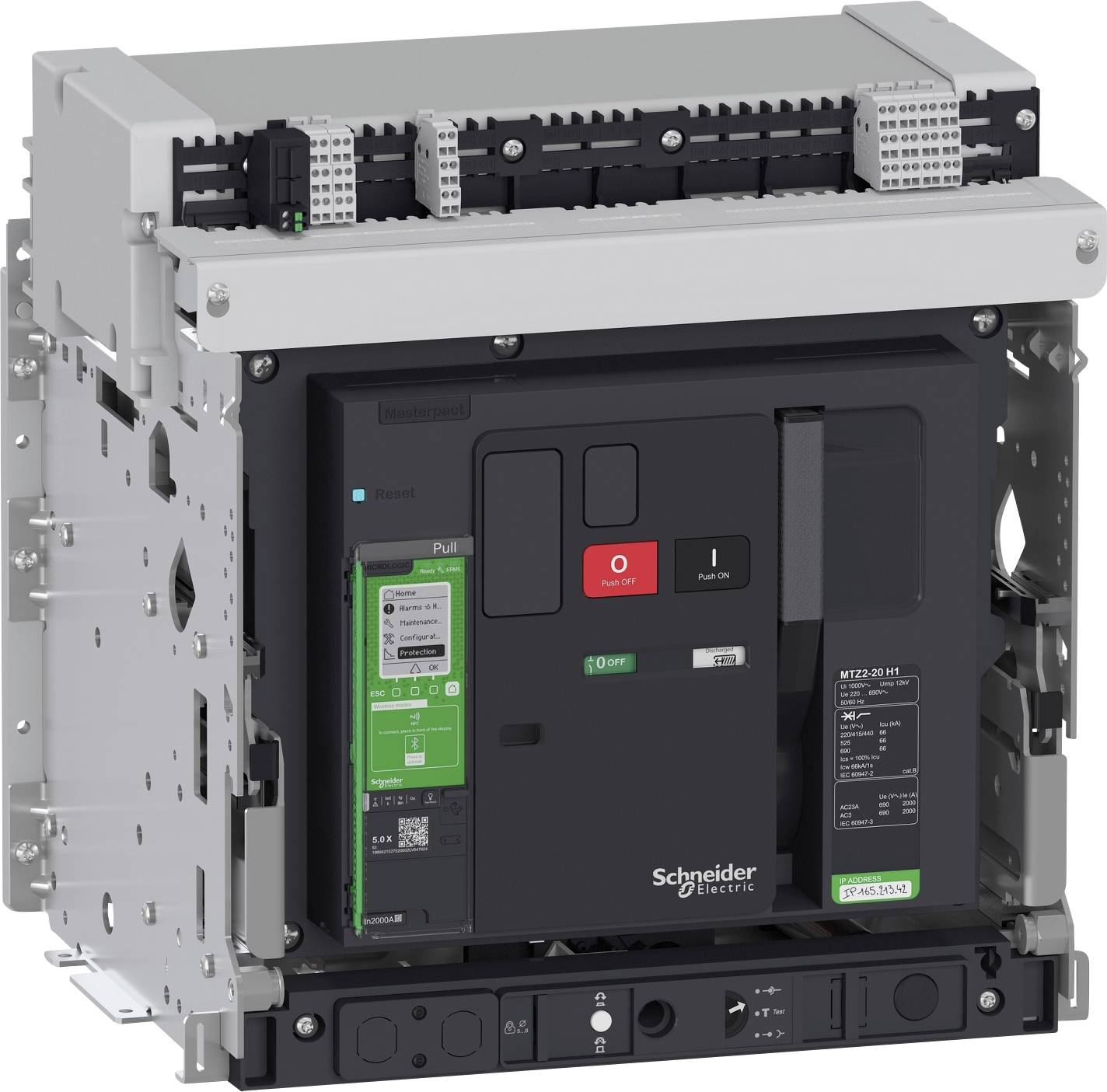

This device is a complete 3-pole MasterPact MTZ2 20H1 power circuit breaker with a retractable version (extendable), which is equipped with a MicroLogic 5.0X controller. MasterCompact MTZ is the last generation of high current circuit breakers from 630A to 6300A with advanced digital technology. The rated operating current (In) is 2000A. The breaking capacity (ICU) is 66kA at 415VAC 50/60Hz (power level H1). It is operated manually (no integrated motor). It is equipped with a 3-pin chassis for the retractable version. MicroLogic 5.0X is an electronic control unit with an adjustable long-term protection against overload (ANSI 49RMS/51). It has an adjustable short circuit protection (ANSI 50TD/51) and an instantaneous short-circuit protection (ANSI 50). The information processed by MicroLogic 5.0X can be viewed on the integrated HMI or on a smartphone using the EcoStruxure Power device application. The protection features can be set via the integrated display, a smartphone or a PC and additionally via Ethernet and Modbus SL communication with EcoStruxure software. The MicroLogic X control unit can be customized at any time with digital modules to add new protection, measurement, or diagnostic functions. MicroLogic X controllers have multiple communication channels, including Ethernet, Modbus SL, and wireless communications. Power is supplied via the rear horizontal connectors on the top and bottom. There are four OF auxiliary contacts (ON/OFF switch status), 1 SDE auxiliary contact (fault triggering indicator) and 1 PF auxiliary contact (standby indicator). A ULP port module is part of the configuration and is mounted on the chassis to enable connection to Ethernet or Modbus communication modules. The dimensions are 439mm (H) x 441mm (B) x 403mm (T). It ensures compliance with international standards IEC 60947-1 and IEC60947-2. MasterPact MTZ circuit breakers prepare you for the future of power distribution, with intelligent connectivity, remote monitoring and easy adaptation via digital modules. MasterCompact MTZ is the first circuit breaker with a built-in active power meter class 1 (IEC 61557-12) certified by a third party. The MasterPact MTZ circuit breaker is integrated with the EcoStruxure Power architecture and enables the generation of valuable data. MasterPact MTZ keeps you connected and eliminates downtime by using EcoStruxure Power Device APP and EcoStruxure software on your smartphone. MasterPact MTZ is a Green Premium product that contributes to improving sustainability by reducing CO2 emissions, energy and operating costs.

This text is machine translated.
