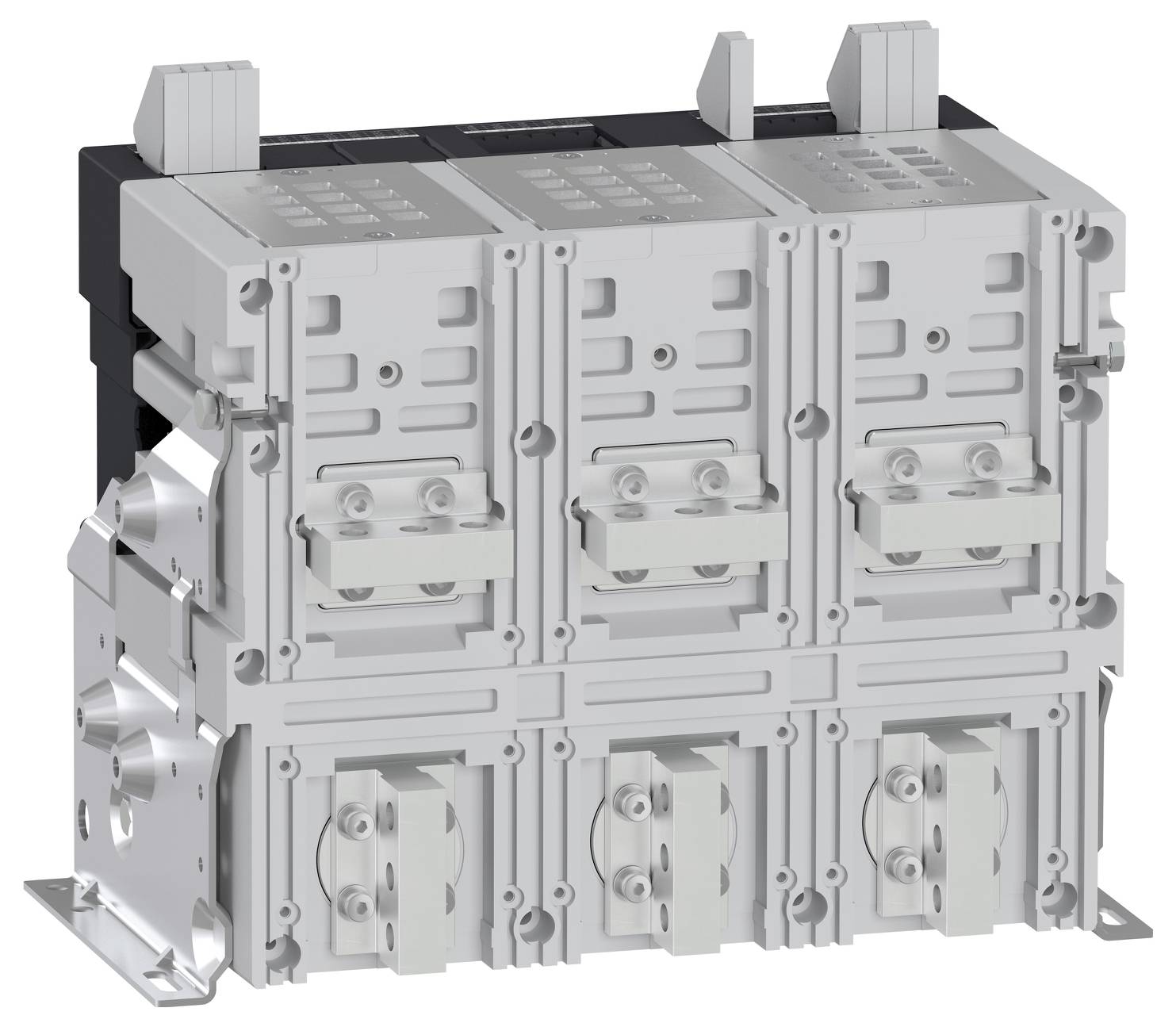

Schneider Electric MTZ220H15X3PMF Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 800 - 30000 A Switching
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
30000 A
Contact type
3 makers
Connection
Bolt fixings
Type
MTZ220H15X3PMF
Datasheet (PDF)
Technical specifications
- Connection type main circuit: Bolt connection
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as changer: 5
- Number of auxiliary contacts as NC contacts: 0
- Actuator type: Pushbutton
- Rated continuous current IU 2000 A
- Rated short circuit switch-off current ICU at 400 V, 50 Hz: 66 kA
- Rated voltage: 690/-690 V
- Setting range of the short-time delayed short-circuit release: 1200-20000 A.
- Setting range of the undelayed short-circuit release: 4000-30000 A.
- Suitable for DIN rail mounting: No.
- Device type: Built-in device permanent installation technology
- DIN rail mounting optional: No.
- Built-in ground fault protection: No.
- Complete unit with protection unit: Yes
- With trip indicator: Yes
- With integrated undervoltage release: No.
- Motor drive integrated: No.
- Motor drive optional: Yes
- Location of the main circuit connector: Rear
- Power loss: 250 W
- Overload release current setting 800-2000 A
- Product type
Circuit breaker
- Type
MTZ220H15X3PMF
- Amperage adjustment range (min.)
800 A
- Amperage adjustment range (max.)
30000 A
- Adjustment range (amperage)
800 - 30000 A
- Current load
2000 A
- Contact type
3 makers
- No. of pins
3-pin
- Auxiliary contact type
5 change-overs
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Features
+ auxiliary contact
- Connection
Bolt fixings
IP30
- Depth
300 mm
- Width
422 mm
- Height
352 mm
- Dim
(W x H x D) 422 x 352 x 300 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763449 Schneider Electric MTZ220H15X3PMF Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 800 - 30000 A Switching
User & Safety Instructions
User & Safety Instructions 3763449 Schneider Electric MTZ220H15X3PMF Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 800 - 30000 A Switching
Description
This device is a complete 3-pole master compact circuit breaker MTZ2 20H1 in a fixed version, equipped with a MicroLogic 5.0X control unit. MasterPact MTZ is the latest generation of high current circuit breakers from 630A to 6300A, which incorporate advanced digital technologies. The rated operating current (In) is 2000A. The breaking capacity (ICU) is 66kA at 415VAC 50/60Hz (power level H1). It is operated manually (there is no integrated motor). MicroLogic 5.0X is an electronic control unit with an adjustable long-term protection against overload (ANSI 49RMS/51). It is equipped with an adjustable short circuit protection (ANSI 50TD/51) and an instantaneous protection (ANSI 50) against short circuits. The information processed by MicroLogic 5.0X can be viewed on the integrated HMI or on a smartphone using the EcoStruxure Power device application. The protection features can be set via the integrated display, a smartphone or a PC and additionally via Ethernet and Modbus SL communication using the EcoStruxure software. It is possible to customize the MicroLogic X control at any time with digital modules to add new protection, measurement, or diagnostic functions. MicroLogic X controllers have multiple communication channels, including Ethernet, Modbus SL, and wireless communications. The power connection is made via horizontal connections on the rear side for the upper and lower side. There are four OF auxiliary contacts (ON/OFF switch status), 1 SDE auxiliary contact (fault triggering indicator) and 1 PF auxiliary contact (standby indicator). Product dimensions are 352mm (H) x 422mm (W) x 300mm (T). It ensures compliance with international standards IEC 60947-1 and IEC60947-2. MasterPact MTZ circuit breakers make you fit for the future of power distribution with intelligent connectivity, remote monitoring and easy adaptation via digital modules. MasterCompact MTZ is the first circuit breaker with a built-in active power meter class 1 (IEC 61557-12) certified by a third party. The MasterPact MTZ circuit breaker is integrated in the EcoStruxure Power architecture and enables the generation of valuable data. With MasterPact MTZ, you can stay connected and avoid downtime by using the EcoStruxure Power APP and EcoStruxure software. MasterPact MTZ is a Green Premium product and contributes to more sustainability by reducing CO2 emissions, energy and operating costs.
