Buy Schneider Electric NSYCCOFST90250V NSYCCOFST90250V Indoor thermostat DIN rail 1 pc(s)

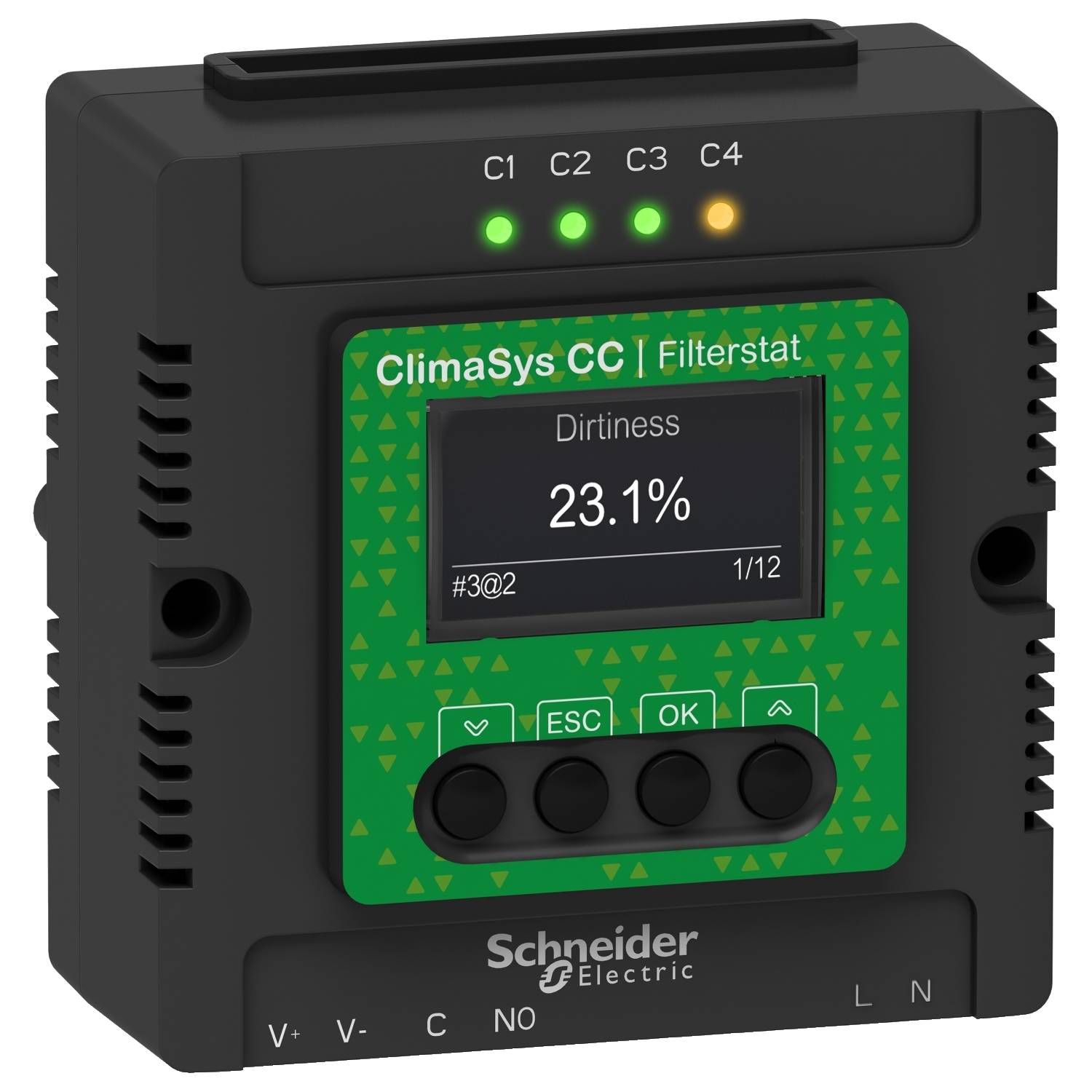

The image shows a ClimaSys CC Filterstat device by Schneider Electric with a screen displaying 'Dirtiness 23.1%'.

Datasheet (PDF)

Fast track dispatch on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 251.26 / piece)

€ 251.26

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Indoor thermostat

Max. temperature setting: 70 °C

Temperature settings: -40 up to 70 °C

Display: Yes

Remote sensor: Optional

Compatible with: Fans

Mounting type: DIN rail

Width: 80 mm

Height: 41 mm

Length: 80 mm

Dim: (L x W x H) 80 x 80 x 41 mm

Contact type: Analogue

Min. temperature setting: -40 °C

: Other

: 80

: 80 mm

: 49.75 mm

: 7016

: TRUE

: TRUE

: FALSE

: IP54

: FALSE

: Other

: 10

: TRUE

: 5

: TRUE

: Series

: FALSE

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2929189 Schneider Electric NSYCCOFST90250V NSYCCOFST90250V Indoor thermostat DIN rail 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2929189 Schneider Electric NSYCCOFST90250V NSYCCOFST90250V Indoor thermostat DIN rail 1 pc(s)

Information

Information 2929189 Schneider Electric NSYCCOFST90250V NSYCCOFST90250V Indoor thermostat DIN rail 1 pc(s)

Description

CSV Filterstat controller (90-250V, AC, 50/60Hz). 4 connections for sensors and thermal hubs (for newwork expansion to up to 256 sensors). Potential free relay contact 5A SPST For the realization of alarms in case of over heating, completely dirty filters, defective or worn fans and other events Analogue contact (V+ V-) 0 -10V, signal shows filter contamination level from 0 -100%. Size 80x80x41mm Operating temperature -40 - +70°C. Shows all data relevant for maintenance directly in the display on the control cabinet, or can be connected e.g. to a PLC in order to provide data for remote maintenance. For mounting on a DIN rail (7.5 mm). For installation in a sheet metal (cut-out in doors, side or rear walls) a mounting frame (IP55) must be ordered as an additional unit.
